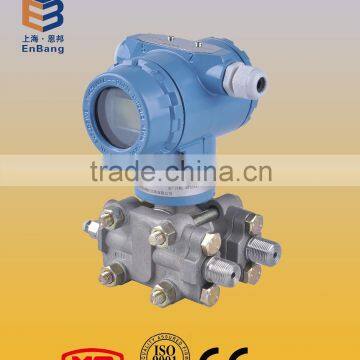

China 4-20mA intelligent Pressure /Differential Pressure Transmitter

Note:

EB3351 Series Pressure / Differential Pressure Transmitter has a variety of forms, draw lessons from foreign advanced technology development and manufacturing, with full isolation circuit design technology, can accurately gauge pressure, absolute pressure, differential pressure, flow, vacuum, liquid level and density. This product has been widely used in petroleum, chemical, metallurgy, electric power, textile, food, paper, medicine, machinery manufacturing, scientific experiment and aviation military and other industrial fields.

Characteristic:

High precision, range ratio is 50:1

The range from 160Pa to 40MPa, range, zero, external continuously adjustable.

The process of diaphragm is 316L stainless steel, Hastelloy, tantalum diaphragm, Monel and so on.

No mechanical moving parts, reliable work, strong earthquake resistance, simple maintenance.

A small, light and easy to installation

With the EEPROM, without loss of data when power off

Optional the intelligent and simulation, , can meet various application requirements.

Main Technical Specifications:

Measurement range: 160Pa ~ 40MPa

Output signal: 4 - 20mA; Intelligent 4 - 20mA HART protocol communication

Working voltage: DC 24V, 12 ~ 36VDC, 18.5 ~ 220VDC, AC 50HZ, 45V

Accuracy: 0.1%F.S; 0.2%F.S; 0.5%F.S

Thread interface: M20*1.5 (special specifications can be customized according to customer demand).

Temperature range: -20 ~ 70ºC

Explosion proof grade: ordinary type; flameproof intrinsically safe ExiaIICT6 ExdIIBT4;

Electrical connection: direct lead, explosion-proof connection, terminal (special specification according to customer demand for customized)

1. Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2. We could  send the goods , labeled your brand name, to your customer directly, and also can provide neutral product (without brand and our company information)

3. Through strict quality control system and strong production capacity to provide customers with quality products

4. Your inquiry and problems will be replied in 24 hours by well-trained and experienced staffs;
5. After-sale tracking service for all of our clients;

6. We offer 12 months warranty for all of our products from the shipping date.
7. OEM is available; small quantities, mixed bulk orders are also welcome;

8. We also provide paid repair services for out of the warranty period or other brand products.


Products can be used in lots of industries:

1.    What are your main products?

Accept: Air,sea and land transportation.

Shanghai enbang Automation Instrument Co., Ltd. (hereinafter referred to as Enbang instrument), has always been committed to in the field of pressure measurement, uphold the spirit of technical innovation and management innovation, with rich sensor R & D and production experience, advanced production and testing equipment and technology, strict testing process sequence, to provide customers with high quality sensors, transmitters and related technical services, superior product quality, perfect service, let us deeply trusted by users.
Enbang instrument advanced experience at home and abroad, to capture a number of technical difficulties in the production of transmitter. Anaerobic type sintering technology, the use of oxide layer problem solve the transmitter pressure sensor filled pipe and glass sintering; pressure sensor and core diaphragm using computer to locate and tensioning technology, the accuracy, static pressure performance and high overload capacity is improved; part of the circuit adopts advanced isolation technique, power supply terminal with isolation transformer and signal terminal with optical coupler isolation. The pressure transmitter has a good anti-jamming capability, to ensure the reliability and stability of the product.
In 10 years, enbang instrument has been with honest and trustworthy, pragmatic, innovative "spirit of enterprise, learning at home and abroad advanced knowledge and technology and business management experience, and constantly improve the management level and the innovation ability of enterprises," excellent products, superior quality, excellent management, excellent service "to meet customer demand, enable us to have a competitive advantage in the sensor industry, provides a guarantee for the sustainable development of enterprises.
