10/100M 20KM Factory Direct Fibre e1 to Fiber to Rj45 Converter Sfp Media Converter

FOB Price

US$ 10 - 100 / Piece

1 Piece(Min. Order)

Port Chengdu China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Neton
Model Number	NMC-3301

Product Description

10/100M 20KM factory direct fibre e1 to fiber to rj45 converter sfp media converter

Products Description

Product Discription

The Media Converter complies with IEEE802.3, IEEE802.3u, and IEEE802.3x Standards. It is designed to convert data signal between 10/100 Base-Tx and 10/100 Base-Fx fast Ethernet. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable.

The Converter is equipped with two fiber optic connectors (One for transmitting-Tx and another for receiving-Rx), one RJ-45 connector. Nine LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.

It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications or Rack-Mounted applications where multiple media converter can be inserted into a rack-mount chassis (Up 10 units) and allowing all the converters to be powered by a single internal power supply.

Order Information

Type	Data rate(Mbps)	Description	Laser Transmitter	Encapsulation	Supply Voltage
NMC-3301	10/100	SM 20Km	1310nm FP Laser Diode	Dual LC & one RJ45	AC 86~260V

Same Serial Products Order Information

Type	Data rate(Mbps)	Description	Laser Transmitter	Encapsulation	Supply Voltage
NMC-3301	10/100	SM 20Km	1310nm FP Laser Diode	Dual SC/ST & one RJ45	AC 86~260V
NMC-3302	10/100	SM 40Km	1310nm FP Laser Diode	Dual SC/ST & one RJ45	AC 86~260V
NMC-3303	10/100	SM 60Km	1310nm FP Laser Diode	Dual SC/ST & one RJ45	AC 86~260V
NMC-3304	10/100	SM 100Km	1550nm DFB Laser Diode	Dual SC/ST & one RJ45	AC 86~260V
NMC-3305	10/100	MM 2Km	850nm VCSEL	Dual SC/ST & one RJ45	AC 86~260V

Product Features

• MeetsIEEE802.3u 100BaseTX and 100BaseFX standards

• Plug-and-Play installation

• Auto-Negotiation for 10/100M TP port speed

• High quality and excellent reliability

• Full-duplex 100Mbps Ethernet operation up to 120Km

• Two RJ45 ports for installation easily

• 9 diagnostic and monitoring LEDs for the status of power, FX link/ACT, TX link/ACT

• Half-duplex and full-duplex identify automatically

• Stand-alone with external power adapter

Specifications

Parameter	Min.	Typ.	Max.	Units
Standard	IEEE802.3 ,IEEE802.3u ,IEEE802.3x
Data Rate			100	Mbps
Operating Wavelength	1280 1480	1310 1550	1335 1580	nm
Fiber Interface	SC/PC Fiber Connector, 9/125um Single Mode Fiber SC/PC or ST/PC Fiber Connector, 50/125 or 62.5/125 Multi-Mode
RJ45 Port	UTP-100-ohm Cat.5 cable
Max Segment Length (UTP)	0		120	m
Max Segment Length (Fiber)
NMC-3301 (1310nm)		20 (SM Fiber)
NMC-3302 (1310nm)		40 (SM Fiber)
NMC-3303 (1310nm)		60 (SM Fiber)		Km
NMC-3304 (1550nm)		100 (SM Fiber)
NMC-3305(1310nm/850nm)		2 (MM Fiber)
External Power Supply	AC 86~260V 50~60Hz ;
AC-DC Power Adaptor	+5V DC, 1A
Operating Temperature	0		70(Business Level)	℃
Storage Temperature	-40		85	℃
Humidity	5%~90% (Non-condensing)
EMI and Safety	CE,FCC Class A
Dimensions	95 mm (L)71 mm (W) 26 mm (H)

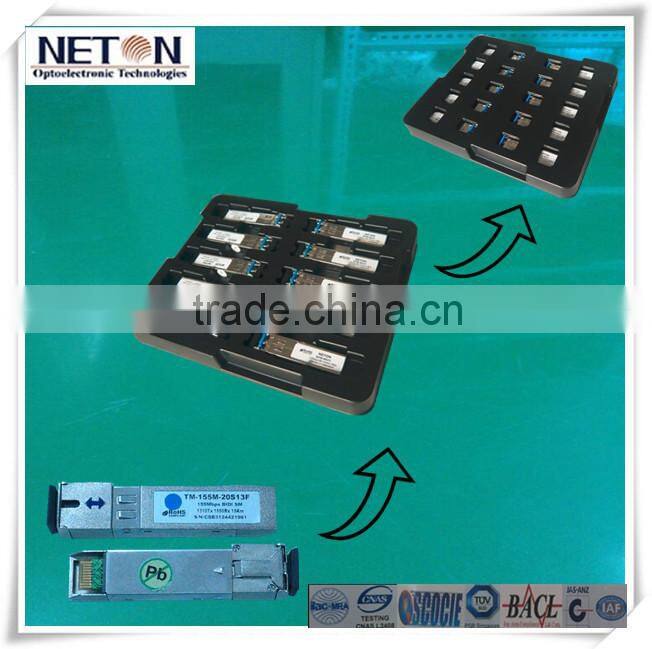

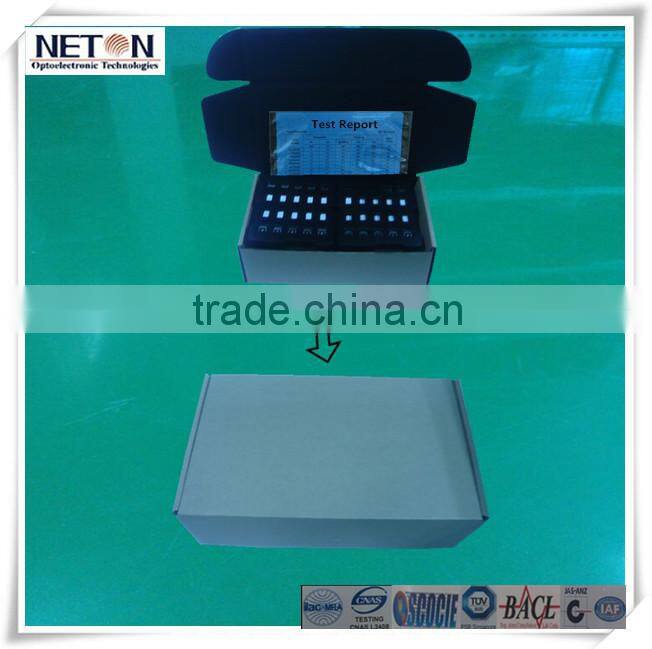

Package & Shippment

Products Show

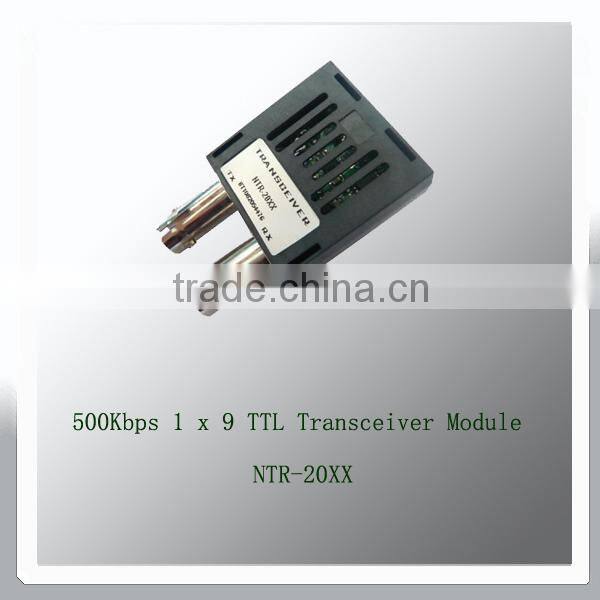

1x9 Optic Transceiver Module

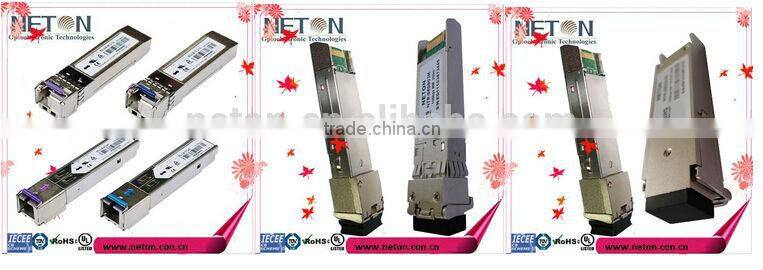

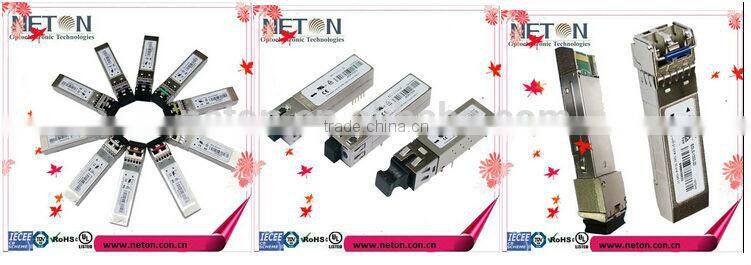

Product Series---SFP Transceiver Module

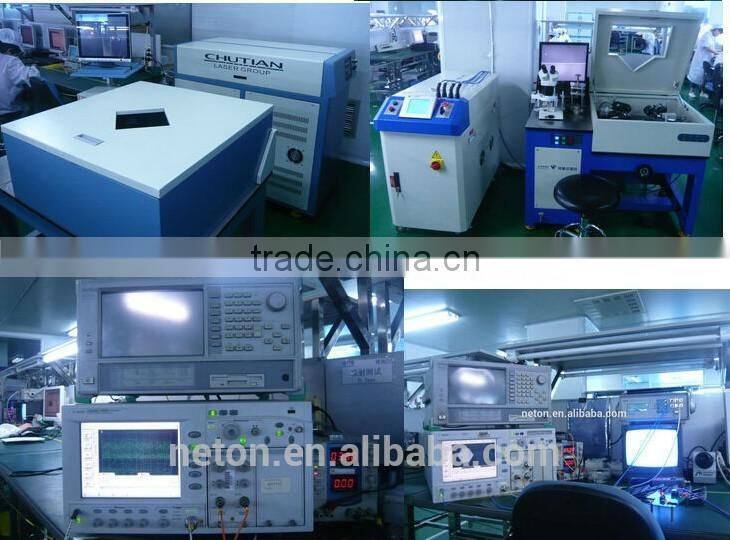

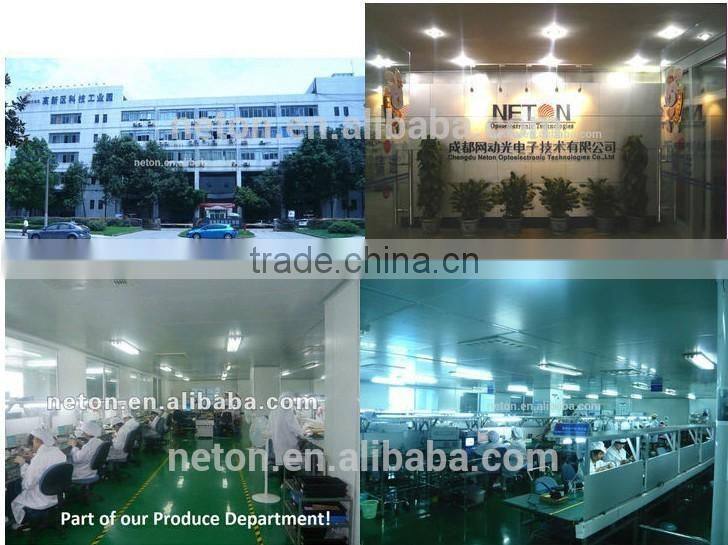

Factory Show

Certifications

FAQ

1.What is the warranty for your 1x9 optical modules?

All our products with strict quality control.1x9 modules have 1 year warranty and 3-5 years for MTBF. Free for maintaining within warranty period. In fact, Our repair rate is almost zero.

2.Do you ship internationally?
Yes.We can ship anywhere you would like.If your order is paid by T/T, and Westem Union we can ship it via our delivery forwarder or on your shipping account number ,to ensure you are getting the best rates and this allows you to handle the export/import taxes.

3.I placed an order,who do i call to get tracking information?
Our colleagues of shipping will send you the tracking information immediately after shipping. You can also get the tracking messages from your sales servicer.

4.How do I know NETON parts are good?
We currently are an approved vendor/a gold supplier for Alibaba. We have a number of testing facilities at our disposal and have on-site counterfeit screening capabilities.Our reputation has been built on providing quality parts and customer service you can count on.

5. What's your best advantage in the optical modules line?

achieve various customized requires is our favourate advantage. Because over 20 excellent technicials act as our strong backers.

6.What's your main products?

Our main products are optical transceiver modules, like 1x9, SFP,XFP.

And we can produce all datarate series of modules from DC~2M, 2M~622M,622M~2.5G to 2.5G~40G,

and all kinds of encapsulations from 1x9, SFP,XFP, SFP+ to PON, GPON,GEPON even copper connector and metal 1x9, and WDM from CWDM to DWDM are acceptable,

and single/double/triple transceiver module,single/double/triple transmitter module, single/double/triple receiver module for your various demands.

Keyword: 622M sfp , SFP Transceiver Module, SFP transceiver low price , 622M sfp module, DWDM SFP,factory SFP, Original Finisar SFP, SFP Optical Transceivers, SFP-622M-LX-SM1310, SFP Transceiver SDH/SONET, SONET STM-4 622Mbps 120km sfp, Factory supply sfp,sfp+

More information, please feel free to contact or visit us!

tencent number: 2452987217

phone:+86 28 86080286-807

mobile:+86 18384172670

e-mail: xiaohong at sales at
