Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	MIMA	Model Number	TE30
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	3000kg	Max. Lifting Height	115mm
Min. Lifting Height	85mm	Fork Length	1150mm
Fork Width	175mm	Overall Dimensions	1987x850x1400mm
Certification	CE/ISO9001	After-sales Service Provided	No overseas service provided

Product Description

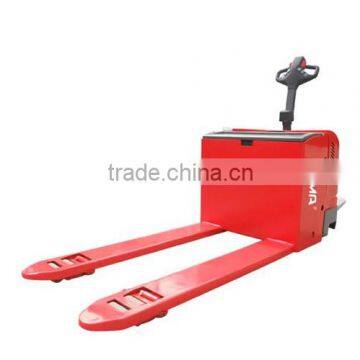

warehouse handling equipment 3ton electric pallet truck

MIMA Pallet Truck

Name: Pallet Truck
Model: TE30
The electric pallet truck with load capacity 3.0T, it's polpular in many industries.
1. Safety: Auto Curve Speed-reduced function;
2. Anti-roll back prevents uncontrolled traveled speed or roll-bak on ramps when loading and unloading;
3. The small ground clearance, to protect the operator;
4. High-strength frame design, suitable for tough workplaces, ensures longer service life;
5. Vertical motor ensures convenience inspection and maintenance of motor and brake, provide much better maintainability than horizontal motor;
6. Ergonomics operation handle to increase the comfortable feeling;
7. Excellent performance of getting in and out of empty pallet,greatly increases the operation efficiency;
8. Emergency plug mounted at up-right side on truck frame, all power can be cut off by simply pulling emergency plug and the truck stops.
We have in store for our clients a unique range of Pallet Truck. These trucks are used in various industries for transporting goods of different capacities and are manufactured using superior quality stainless steel and aluminum. They are available with castors and are presented in the normal rates.

Model	TE30
Load capacity Kg	3000
Load center mm	500
Max. lifting height mm	200
Operation type	Standing
Wheel type	Polyurethane solid tire
Pedal length mm	500
Fork size (LxW) mm	1150*175
Width of forks (aptotic) mm	685
Overall length (The pedal is closed) mm	1987
Overall width mm	850
Overall height mm	1400
Outside turning radius mm	1788
Front wheel to fork tip mm	165
Brake	Electromagnetic
Lift speed,laden/unladen mm/s	26/34
Lowering speed,laden/unladen mm/s	34
Battery weight Kg	180
Max. walking speeds Km/h	4.0/5.8
Grade abitity %	8
Total weight (with battery) Kg	~720
Driving wheel mm	Φ215*75
Front wheel mm	Φ80*70
Balance wheel mm	Φ150*50
Battery V/Ah	24/210
Charger V/A	24/30
Driving motor Kw	1.5 ac
Lifting motor Kw	1.2
Battery dimensions l/w/h mm	650200585

Our Services

Warranty policy :

If anything go wrong within 12months or 1000 hours , which ever come first from the date of purchase. We will pay for parts to have the repairs conducted ,any shipping expenses will be also paid byus and in return, clients need to give back the parts needed to be exchanged to us, with shipping expenses paid.

If a part is bad and urgent, clients take photos of nameplate, sides of the whole forklift and the bad part, we can send out the part within a day. And if the weight not excess 10KGs, we can deliver parts to clients by DHL, Fedex or else, if it is heavier, shipped by sea within a day.

We will not be responsible for damage cause by the user or owner or lack of required maintenance or abuse.
