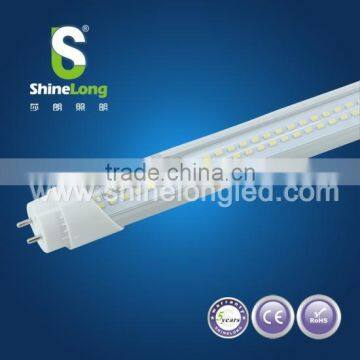

30W 1500mm T8 LED Tube with TUV IES Test report

ShineLong T8 LED lighting features:

• Perfect light, No Dark area, No Facula;
• High effeciency: 120lm/w;
• Own designed Isolated TUV/VDE/UL/ETL approved drivers;
• Drivers with Japanese Rubycon YXJ capacitor and TOSHIBA MOS pipe.
• Universal related Input voltage AC100~240V, working for AC90~265V.
• 3 layers for Insulation for driver, fiberglass sleeve cover wire to avoid the damage;
• Safety operating voltage DC36~DC42V;
• Constant LED forwarder current 16~18mA during tube operating;(Best design for low LED light decay & long life time);
• Special PCB board workable for 1.2m tubes without soldering in the middle;
• Using the Lead-free solder wire with REACH standard;
• High lumination LED and High lumens;
• 6063# Aluminum housing for better heat releasing can be self-processed by different lengths.
• Own design for Tube shape and product mix;
• LED Starter work with LED Tube; (One side AC input normal producing)
• Patent designed Al housing and end caps with screw back fixed for easy replacement;
• Patent Rotatable end cap ±90° rotatable could be different light emitting directions;
• Special design for passing 4000V Hi-pot testing;
• Temperature difference less than 10°C between inside and outside;
• Extremely low maintenance;( Safety and cost aspect)
• Durable structure and stable performance;
• Being reduced 40% heat dissipation, compared with traditional fluorescent lamp;
• OEM&ODM offering;
