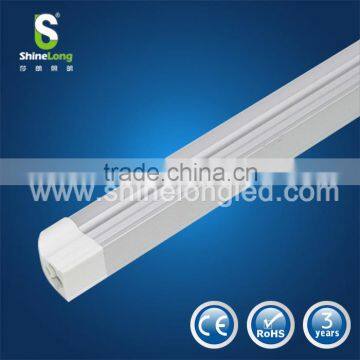

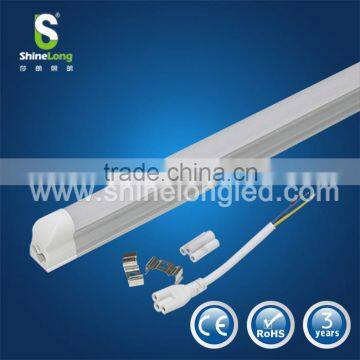

CE Transparent LED T5 Tube Light With Internal Driver and Fixture

FOB Price

US$ 8 - 26 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD2835	Warranty(Years)	3
Input Voltage(V)	AC100-240V	Lamp Power(W)	18
Lamp Luminous Flux(lm)	1800-2000	Lamp Luminous Efficiency(lm/w)	1000
Color Temperature(CCT)	Cool White	Working Temperature(℃)	-20, 50
Working Lifetime(Hour)	50000	IP Rating	IP33
Certification	CE, EMC, LVD	Place of Origin	Guangdong, China
Brand Name	Shinelong	Model Number	Other, T5, SL-T54X18-120-XT

T5-5W 549mm led tube light SPECIFICATION
Absolute Maximum Rating at TA=25°C
Parameter	Absolute Maximum Rating
Rated Input Voltage	AC90V ~ AC275V
Operating Voltage	DC24V
Operating Current	Constant 17mA
Operating Temperature	-20 ~ +50 °C
Storage Temperature	-30 ~ +50 °C
Material	Aluminum + transparent/frosted/stripped PC cover
Power consumption	5W
Led Qty	84 PCS
Luminous Flux(Typ)	400~550 LM
Color temperature	WW:3000-3500-4000K;PW:4500-5000-5500K; CW:>6000K
CRI	≥72a
Viewing angle	120°
Power Factor	≥0.85
Life Time	30,000-50,000 H

Product advantage

•Patent design for tube shape and product mix

•Isolated power supply and can be replaced easily by hand

•High Ilumination 0.06W SMD LED and low light decay

•Patent turnable end cap for different light emiting directions

•Constant LED forwarder current during tube operating

•Temperature difference less than 10°C between inside and outside

•TUV,UL,CE,RoHS approved
