Home > Products > Diesel forklift > Hot items Cheap High Quality 7T 7ton 7 ton ISUZU Engine Chinese Forklift Truck

Hot items Cheap High Quality 7T 7ton 7 ton ISUZU Engine Chinese Forklift Truck

FOB Price

US$ 22,865 - 22,879 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	GOODSENSE	Model Number	FD70
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	7000kg	Max. Lifting Height	6000mm
Min. Lifting Height	3000mm	Fork Length	770-2570mm
Fork Width	150mm	Overall Dimensions	356020102470mm
Certification	CE/ISO9001, CE/SGS	After-sales Service Provided	Overseas third-party support available

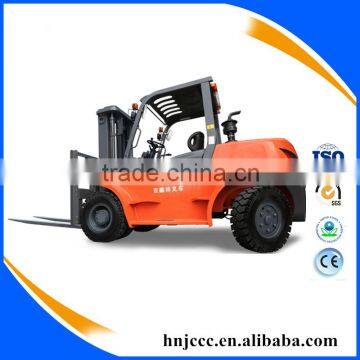

FD70 -- Goodsense 7.0T Chinese Goodsense Hot Sale Diesel Forklift

Product Description

	Model			FD70
1	Power Type			Diesel
2	Rated Capacity		kg	7000
3	Load Centre		mm	600
4	Lift Height		mm	3000
5	Fork Size (L×W×T )		mm	1220×150×65
6	Mast Tilt Angle (F/R)		Deg	6°/12°
7	Front Overhang (Wheel center to fork face)		mm	595
8	Ground Clearance(Bottom of mast)		mm	200
9	Turning Radius (outside)		mm	3350
10	Min. Intersecting aisle		mm	2960
11	Max.Gradeability (No load/Full load)		%	20
12	Wheelbase		mm	2250
13	Service weight		kg	9750
14	Battery (Voltage/Capacity)		V/Ah	(12/80)x2
15	Overall Dimension	Length to face of fork(Without fork)	mm	3560
16		Overall Width	mm	2010
17		Mast Lowered Height	mm	2500
18		Mast Extended Height(With backrest)	mm	4380
19		Overhead Guard Height	mm	2470
20	Speed	Travel (No load)	km/h	26
21	Speed	Lifting(Full load)	mm/s	460
22	Tire	Front	mm	8.25-15-14PR
23	Tire	Rear	mm	8.25-15-14PR
24	Engine	Model		6BG1
25		Manufacture		ISUZU
26		Rated output/r.p.m.	kw	82.3/2000
27		Rated torque/r.p.m.	N·m	416/1400-1600
28		No.of Cylinder		6
29		Bore×Stroke	mm	105×125
30		Displacement	cc	6494
31		Fuel Tank Capacity	L	140
32	Transmission	Type		Powershift
33	Transmission	Stage FWD/RVS		2/2
34	Operating Pressure for Attachment		Mpa	19

Advantages

-- Innovative Design

-- Simplified Serviceability

-- Enhanced Productivity

-- Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation

-- Solid Overhead Guard -- specially designed for additional security

-- Ergonomics Seat -- much more comfortable and fatigue- reliveable after long time operation

-- Powerful Engine -- imported brand engine ensures high performance, safty and efficiency

-- Super low & Non-slip step

Attachment:

Certifications

Quality Control
