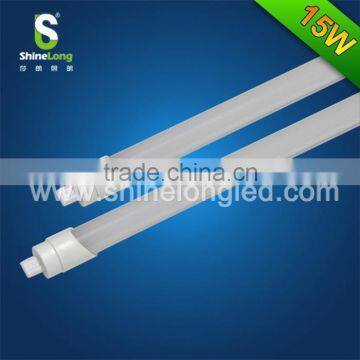

TUV approved 15W T5 4ft led tube light

FOB Price

USD $18 - $55 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD 2835	Warranty(Years)	3
Input Voltage(V)	AC100-240V	Lamp Power(W)	15
Lamp Luminous Flux(lm)	1500-1650LM	Lamp Luminous Efficiency(lm/w)	110
Lamp Body Material	PC	Place of Origin	Guangdong, China
Brand Name	Shinelong	Model Number	Other, SL-T54X15-96-X

T5-15W 120cm led 3528SMD tube light SPECIFICATION
Absolute Maximum Rating at TA=25°C
Parameter	Absolute Maximum Rating
Rated Input Voltage	AC100V ~ AC240V
Operating Voltage	DC36V ~ DC40V
Operating Current	Constant 17mA
Operating Temperature	-20 ~ +50 °C
Storage Temperature	-30 ~ +50 °C
Material	Aluminum + transparent/frosted/stripped PC cover
Power consumption	15W
Led Qty	258PCS
Luminous Flux(Typ)	1200~1500 LM
Color temperature	WW:3000-3500-4000K;PW:4500-5000-5500K; CW:>6000K
CRI	>70
Viewing angle	120°
Power Factor	>95
Life Time	30,000-50,000 H

Remarks: All the technical data was tested in Shinelong laboratory.

Why choose SHINELONG TUBES?

•Patent design for tube shape and product mix

•Isolated power supply and can be replaced easily by hand

•High Illumination 0.06W SMD LED and low light decay

•Patent turntable end cap for different light emitting directions

•Constant LED forwarder current during tube operating

•Temperature difference less than 10°C between inside and outside

•TUV, UL, CE, RoHS approved
