PVC Ceiling Making Machine/PVC Ceiling Extruder /china plastic

   PVC Ceiling Making Machine/PVC Ceiling Extruder /china plastic

PVC ceiling machine

PVC ceiling extrusion machine

PVC ceiling making machine
PVC ceiling extrusion line

PVC ceiling production line

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Production Description

This production line is composed of conical twin screw extruder, vacuum shaping table, drawer, cutter, pilling  frame,etc With different mould,WPC/PVC machine can produce wpc/pvc products  with different shapes.

Technical paramete

Main composition

Machine's Photos

1.Twin screw extruder  -- SJZ xx series conical twin screw extruder: (The model according to the sizes of final products to choose )

The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.

2.Die mould

Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

3.Vacuum calibration table

Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.

4.Haul-off unit and cutting unit

There are two tractors. The first one is of high powr, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.

5.Stacker

6.Electric control system

Application

wpc production line is mainly used for producing wpc profiles,such as decking,skirting stair handrails etc.Meanwhile,this production line can also produce pure pvc products,such as door&window frame,ceiling etc.

Certification

Services

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.

Our Partner

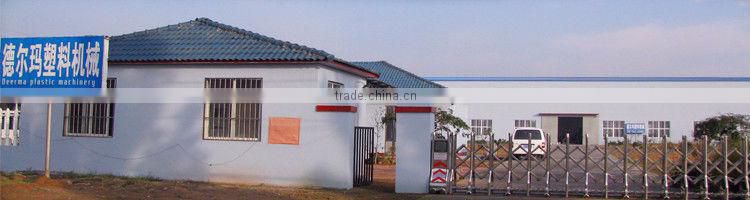

Our company

We have two this production lines in our showroom for other customer , welcome to visit our factory
