Steel Structure Warehouse / Factory

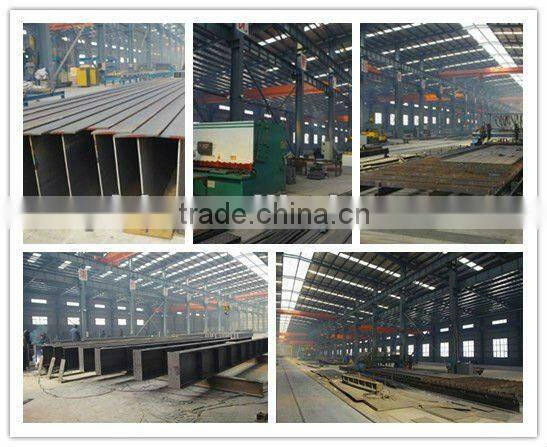

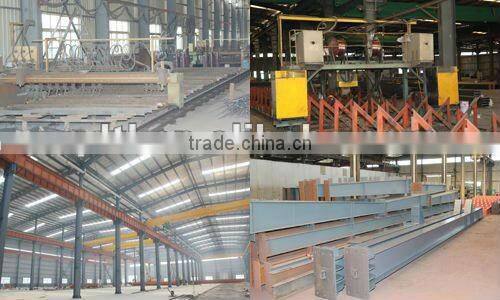

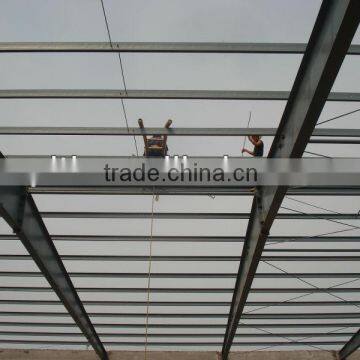

The steel structure warehouse in the pictures were designed, constructed and installed by TAILONG who are professional and practical in designing, processing and installing. You may give us your own drawings to enable us construct as per your request or you might just give us your ideas, we can design the project based on your ideas. Welcome to contact us for anything you needed.

1.size:
MOQ is 1000 square meter,   length X width X eave height, roof slope
2.type:
single slope, double slope, muti-slope ;single span,
double-span ,Multi-span, single floor, double floors
3.base:
Concrete and steel foundation bolts
lumn and beam:
material Q345(S355JR)or Q235(S235JR) steel, all bolts connection ,straight cross-section or Variable cross-section
5.bracing:
X or V or other type bracing made from angle , round pipe etc.
6.c or z purlin,
size from C100~C320,Z160~Z300
7.roof and wall panel:
single colorful corrugated steel sheet0.326~0.6mm thick ,YX26-205-820(820mm wide),
single colorful corrugated steel sheet0.326~0.6mm thick ,YX15-225-900(900mm wide),
single colorful corrugated steel sheet0.326~0.6mm thick ,YX35-125-750(750mm wide),
single colorful corrugated steel sheet0.376~0.6mm thick ,YX51-380-760(760mm wide),
single colorful corrugated steel sheet0.376~0.6mm
thick ,YX51-470(470mm wide),

sandwich panel with EPS, ROCK WOOL , PU etc insulation thickness around 50mm~150mm, width 950mm or 960mm!
8.accessories:
semi-transparent skylight belts, Ventilators, down pipe, out gutter etc
9.surfrace:
Paint or hot dip galvanized
10.packing :
main steel frame without packing load in 40'OT,roof and wall panel load in 40'HQ
If you need we design for you, pls supply us the following parameter together with detail size:
load on roof(KN/M2), live load on second floor(KN/M2) if have
d speed(KM/H) or wind load(Kn/M2)
3.snow load (Kn/M2) if have
4.earthquake load if have
5.crane (if have): crane span, crane type, crane quantity, crane lift height, max lift capacity, max wheel pressure and min wheel pressure
