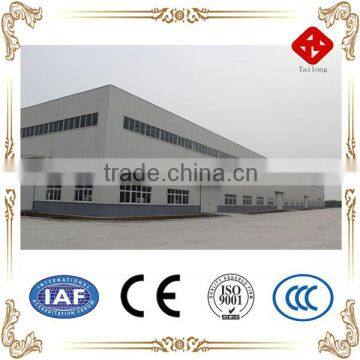

Construction design prefabricated steel structure hotel

Specifications

1. Opinions

  1)We can supply all kinds of steel structures, steel bulding, metal building, modular house,   steel frame for warehouse,workshop, garage etc, steel beams, other riveting and welding parts.

  2)We can also make and develop new parts according to customers' drawings and detailed dimensions.

2.Specifications

  1)Size:MOQ is 1000m2, width X length X eave height, roof slope

  2)Type:Single slope, double slope, muti slope; Single span, double span, Multi-span, single floor, double floors!

  3) Base:Cement and steel foundation bolts

  4)  Column and beam:Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section!

  5) Bracing: X or V or other type bracing made from angle, round pipe, etc

  6) C or z purlin:Size from C120~C320, Z100~Z200

  7) Roof and wall panel:Single colorfull corrugated steel sheet 0.326~0.8mm thick, YX28-205-820(820mm wide), sandwich panel    with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, width 950mm or 960mm!

   8)Accessories:Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc

  9)Surface: Paint or hot dip galvanize!

  10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ!

3. Design Parameters:

 if you need we design for you, pls supply us the following parameter together with detail size:

  1)Live load on roof(KN/M2)

  2)Wind speed(KM/H)

  3)Snow load (KG/M2) if have

  4)Earthquake load if have

  5)Crane (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!
