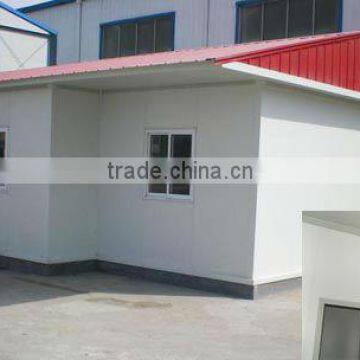

Insulated Sandwich Panel Portable Prefab House

Specifications

prefab house Specifications:

1. The Prefabricated House which is easy to disassembly, assembly department and ship.

2. The framework is light steel system, all the parts are prefabricated.
3. The prefabricated house is wind-proof, and the maximum speed of the wind can be 120KM/H.
4. The prefab house is earthquake-proof, and the maximum grade is 8 degrees.
5. The foundation of the prefab house is easy to make or no needed.
6. The modular house can be recyclable, it can last for 20 years long, and no construction waste.
7. The prefab house is easy to install, a skilled worker can install 20SQM-30SQM one day.
8. The prefab house is easily customized. The houses can be designed accordingly to the clients' needs.

Materials Details:
1. Ground channel: C section steel, C80×40×15×2mm
2. Column: double C section steel, 2C80×40×15×2mm welded
3. Beam for second floor: steel frame 2 C80×40×15×2mm, L40×4mm welded
4. Sub-beam for second floor: C section steel, 2 C80×40×15×2mm
5. Purlin for roof: angle steel L40×4mm
6. Bracing for roof: angle steel L40×4mm
7. Bracing for aisle: C section steel, C80×40×15×2mm welded
8. Bracing between the columns: round steel bolt φ8
9. Stairs: steel stairs
10. Wall panel: V950 50mm thickness EPS or rock wool sandwich panel, steel plate: 0.3mm
11. Roof panel: V950 50mm thickness EPS or rock wool sandwich panel, steel plate: 0.3mm
12. Floor for second story: 16mm thickness plywood
13. Rain shelter: 0.45mm thickness corrugated steel sheet
14. Windows: PVC sliding windows
15. Door: sandwich panel door or steel door
