Modern Design Competitive Price Movable Prefabricated House

Specifications

prefabricated house

It is a kind of light steel structure prefab house with the EPS color steel sandwich panel ,rock wool,PU for the insulation.It can maximize customer require and satisfaction for the cost and quality. All the house parts are knock-down as flat package before loading container.We can provide the service of installation, supervision and training by extra.Regarding to the house details,please check as follows:

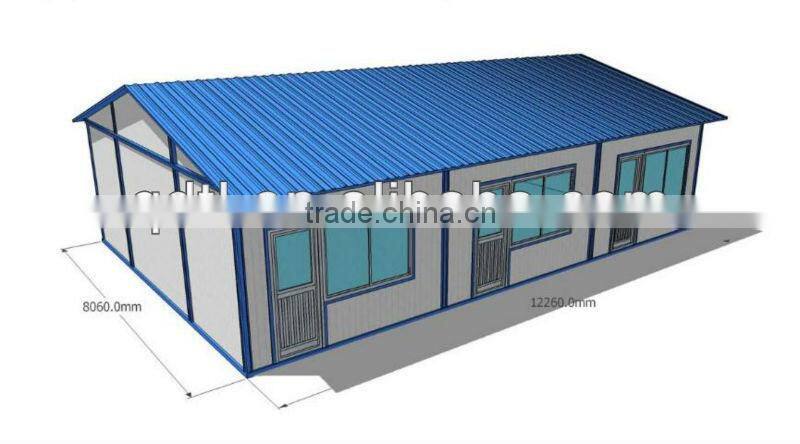

House Size:

1)Length is free as your requirement

2)Width:single-spanbeam less than 12m

3)Height:single floor less than 4m, for two and three floors height less than 3.5m

4)Roof pitch:slope is 1:10~1:3

5)Floors:max is three storeys

House Body:

1)Door:outside door as SIP door,aluminium alloy door or security door.inside door as SIP door, aluminium alloy door or Compound wooden door

2)Window:PVC material or aluminium alloy with window screen

3)Ground channel:U type,galvanized,thick is 0.8mm

4)Square column:painted, with color steel compression decorative parts

5)Wall beam:C type with paint

6)Roof beam:with paint

7)Purline:C type with paint

8)Compression decorative parts:made of 0.4mm thick color steel sheet

9)Ceiling:PVC ceiling or aluminium panel for bathroom and kitchen,mineral wool acoustic panel for the other area

10)Wall board:EPS color steel sandwich panel ,rock wool,PU for the insulation

11)Roof board:EPS color steel sandwich panel ,rock wool,PU for the insulation

House Accessaries:

1)Elevation floor:design as client's detailed requirement

2)Watering system: custom made design and construction or as chinese national standard

3)Wiring system: custom made design and construction or as chinese national standard

4)Sanitary appliance:source china market for your needs

5)Furniture:source china market for your needs

Design technical data:

1)Wind load:0.6KN/sqm

2)Roof dead load:0.35KN/sqm

3)Roof live load:0.5KN/sqm

4)Earthquake intensity:8 grade

5)Location temperature:-25ºC to 45ºC
