Prefabricated House

Specifications

These structures are manufactured using prefabricated insulated sandwich panels. The modular design of the prefabricated panel used in these structures ensures fire resistance, low maintenance cost, durability, strength and quick easy installation at site. Lastly, the unique selling point of the product is its low cost.

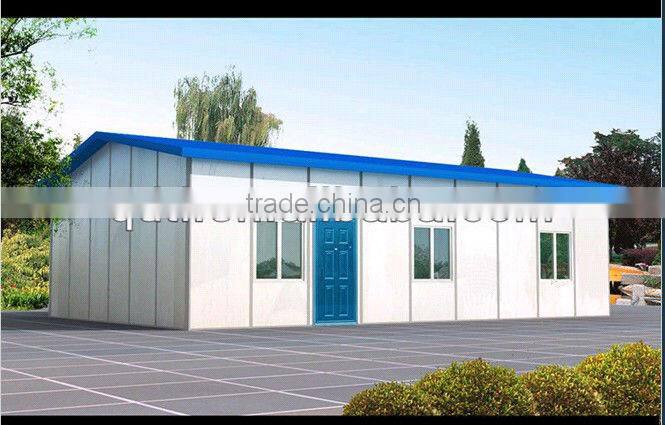

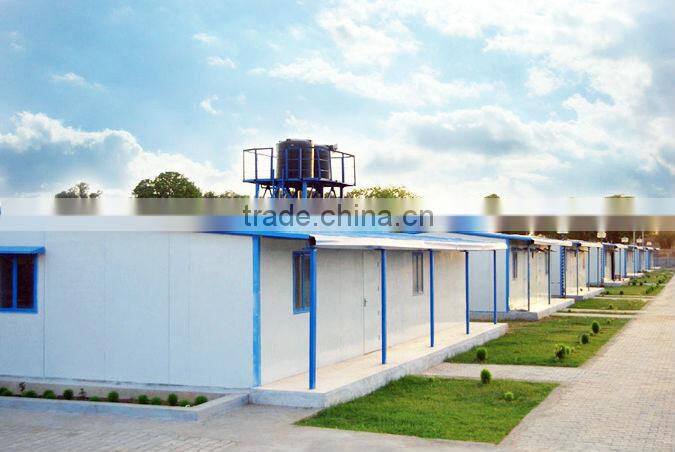

The prefabricated house in the pictures was designed, constructed and installed by TAILONG who are professional and practical in designing, processing and installing. You may give us your own drawings to enable us construct as per your request or you might just give us your ideas, we can design the project based on your ideas. Welcome to contact us for anything you needed.

1. Ground channel: C section steel, C80*40*15*2mm
2. Column: double C section steel, 2C80*40*15*2mm welded
3. Beam for second floor: steel frame 2 C80*40*15*2mm, L40*4mm welded
4. Sub-beam for second floor: C section steel, 2 C80*40*15*2mm
5. Purlin for roof: angle steel L40*4mm
6. Bracing for roof: angle steel L40*4mm
7. Bracing for aisle: C section steel, C80*40*15*2mm welded
8. Bracing between the columns: round steel bolt φ8
9. Stairs: steel stairs
10. Wall panel: V950 50mm thickness EPS or rock wool sandwich panel, steel plate: 0.3mm
11. Roof panel: V950 50mm thickness EPS or rock wool sandwich panel, steel plate: 0.3mm
12. Floor for second story: 16mm thickness plywood
13. Rain shelter: 0.45mm thickness corrugated steel sheet
14. Windows: PVC sliding windows
15. Door: sandwich panel door or steel door
