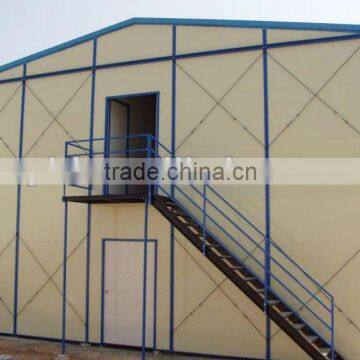

Low cost and long life prefab house

Specifications

prefab house

Specifications

1.House Body:

1)Door:outside door as SIP door with aluminum alloy frame,aluminium alloy door or security door,size:800mm*2000mm.Inside door as SIP door,aluminium alloy door or Compound wooden door,size:750mm*2000mm

2)Window:color steel material or aluminium alloy with window screen

3)Post:H 56*40, material:Q235, modular pace: 1224mm. Galvanized

4)Ground channel:Z 50X60X30mm, material:Q235. Painted

5)Roof beam:The trusses are composed of 353 steel and 20X20mm steel, Galvanized

6)Compression decorative parts:made of 0.4mm thick color steel sheet

7)Wall board:50mm thick EPS color steel sandwich panel for the insulation

8)Roof panel:60mm thick EPS color steel sandwich panel for the insulation

2.House Accessaries:

1)Ceiling board:Mineral wool,aluminium alloy,PVC and so on

2)Watering system: custom made design and construction or as chinese national standard

3)Wiring system: custom made design and construction or as chinese national standard

4)Sanitary appliance:source china market for your needs

5)Furniture:source china market for your needs

6)Elevated floor: steel structure

Design technical data:

1)Wind load:0.6KN/sqm

2)Bearing load:0.5KN/sqm

3)Earthquake intensity:8 grade

4)Location temperature:-15ºC to 50ºC

Installation efficiency:

Four skilled labor can assemble 120 sqm house body in 8 hours.

Container transportment:

Every 40ft sea container may load 300 Sqm house body stuff.

Design technical data:

1)Wind load:0.6KN/sqm

2)Bearing load:0.5KN/sqm

3)Earthquake intensity:8 grade

4)Location temperature:-15ºC to 50ºC

Installation efficiency:

Four skilled labor can assemble 120 sqm house body in 8 hours.

Container transportment:

Every 40ft sea container may load 300 Sqm house body stuff.
