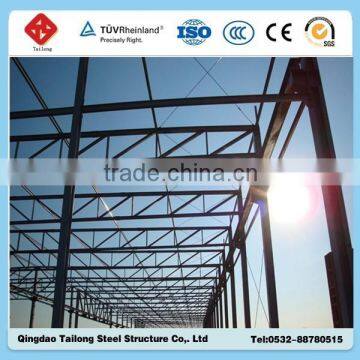

High Rise Steel Structure Two Story Building

NO

NAME

Specification of          High rise steel structure two story building

 1

Main structure

welding H steel or hot rolled H steel,all bolts connection straight cross-section orvariable cross-section

 2

Purlin:

 C section channel or Z section channel

 3

Roof cladding

 corrugated steel sheet or sandwich panel with fiber glass wool, EPS, rock wool, PU

 4

Wall cladding

 corrugated steel sheet or sandwich panel with fiber glass wool, EPS, rock wool, PU

 5

Column barcing

  angle steel or H section steel or steel pipe

 6

Knee brace

angle steel

 7

Roof ridge

corrugated steel sheet

 8

Wrapping cover

 color steel sheet

 9

Roof gutter

 color steel sheet

 10

Rainspout

 PVC pipe

 11

Design

  According to your drawings or some details needed.

 12

Fabrication

 Strictly fabricate every member based on the drawings confirmed.

Name

Specification of         High rise steel structure two story building

Length

Single/double/muti -slope

Width

Single/double/muti-span

Height

Single floor/ double floors

Column

Q235 Q345 welding H section steel

Beam

Q235 Q345 welding H section steel

Purlin

Q235 c channel or z channel

Knee brace

Q235 angel steel

Vertical and transversal support

Q235 angel steel, round bar, steel pipe

Tie bar

Q235 steel pipe

Brace

Q235 round bar

Cladding system

EPS, ROCK WOOL, PU,single color steel corrugated sheet

Partition wall

EPS, ROCK WOOL, PU,single color steel corrugated sheet

Ventilation

Ventilator

Door

color steel silding door or electric rolling gate

Gutter

Stainless steel or color steel corrugated sheet

Downpipe

PVC

High strength bolt

Anchor bolt

Live load on roof

In 120kg/sq

Wind resistance grade

12

Earthquake-resisitance

8
