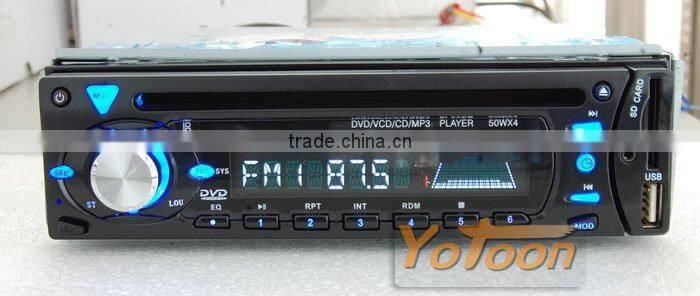

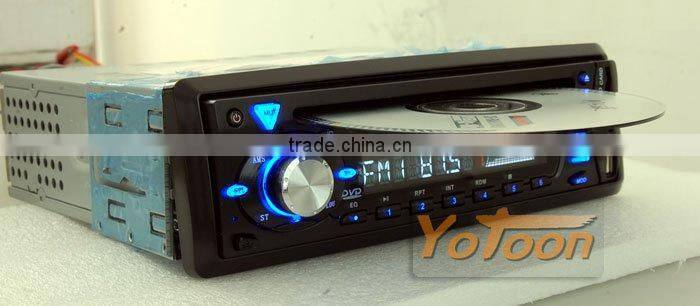

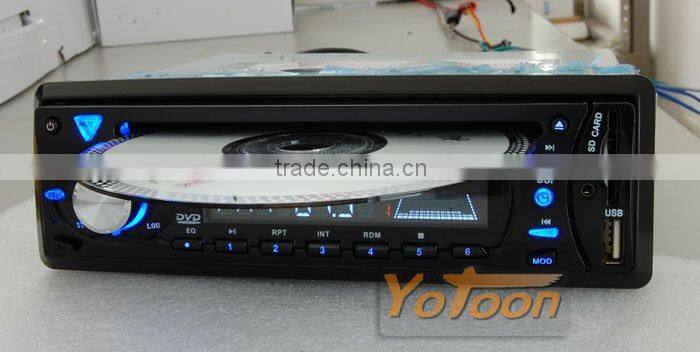

CAR 1 DIN DVD Player/CD/MP3/USB/SD CARD AM/FM PLAYER+AUX INPUT
- Shenzhen
- T/T Money Gram Credit Card
You May Like
-
CAR DVD Player/CD/MP3/USB/SD CARD AM/FM PLAYER+AUX INPUT
-
Singel DIN DVD/CD/MP3/USB/SD CARD AM/FM PLAYER+AUX INPUT
-
One Din Car Dvd With Mp3 Mp4 cd Player
-
Detachable Front Panel Car 1 Din DVD/VCD/MP3/CD Player FM/AM Tuner Built-In USB Port/SD Card Slot
-
1 Din Detachable Front Panel Car DVD Player FM/AM Tuner
-
ONE DIN CAR DVD Player/CD/MP3/USB/SD CARD AM/FM PLAYER+AUX INPUT
Product Details
| Screen Size | Other, No screen | Placement | Dashboard | |
| Combination | CD Player, MP3 / MP4 Players, Other, CD Player, MP3 / MP4 Players, DVD/USB/SD Card | Certification | CE | |
| Place of Origin | Guangdong, China | Brand Name | YOTOON | |
| Model Number | YT-D505 |
Product Description
Shenzhen CAR 1 DIN DVD Player/CD/MP3/USB/SD CARD AM/FM PLAYER+AUX INPUT
Specifications
General
power requirements:14.4V DC
load impedance:4Ω
Max.power output:50W×4
Tone controls:±8dB(Bass 100Hz,Treble10KHz)
Dimensions:Approx.192×178×50mm(d×w×h)
Mounting Dimensions:Approx.169×182×53mm(d×w×h)
Weight:Approx.1.75kg
DVD Deck Section
Discs Played:DVD,VCD 1.0/1.1/2.0/3.0,MP3,CD CD-R,CD-RW,PICTUER-CD
Video System:AUTO/PAL/NTSC
Mounting Angle:0to+/-30
Video Section
Video System:4:3 letter Box and 4:3 Pan Scan
video output level:1.0Vp-p 75 ohms
Horizontal Resolution:500
Audio Section
Maximum outputlevel:2Vrms(+/-3dB)
Frequency Response:20 to 20 Khz
Signal-to-noise ratio:85dB
Separation:80dB
AM Tuner Section
Frequency Range:522-1620(Europe/china),530-1710(u.s.a)
IF Range:450KHz
Usable Sensitivity(-20db):25db
FM tuner section
Tuning Range:87.5-108
IF Range:10.7MHz
Usable Sensitivity(-30dB):15dB
Signal-to-noise Ratio:60dB
Stereo Separation:30dB(1KHz)
Frequency Response:30-15000H
