Copper Coated MIG Welding wire

FOB Price

Negotiable / Metric Ton

1 Metric Ton(Min. Order)

Port Mumbai/ Mundra/ Pipavav
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	India	Brand Name	RAAJMIG 80 G
Model Number	AWS A-5.28 : ER80S-G	Material	Copper / Copper Alloy
Application	Suitable for welding structural

Product Description

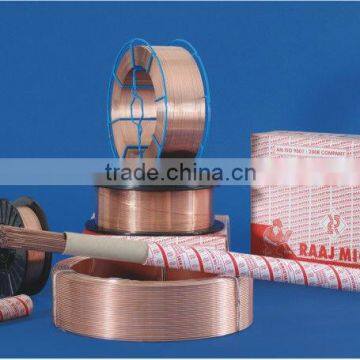

Copper Coated MIG Welding wire

RAAJ MIG 80 G

Copper coated continuous or cut length solid wire for TIG/MIG welding.

CLASSIFICATION : AWS/SFA-5.28 : ER 80S-G

CHARACTERISTICS   : Copper coated solid wire for all
                                         position welding. The special characteristics
                                         are smooth and stable arc low spatter Thin and uniform
                                         copper coating ensure good Conductivity useful for high
                                         speed feeding.

APPLICATION           : Suitable for welding structural
                                     Steels with UTS up to 550 N/mm2. Ideal for joining steels
                                       Conforming to ASTM grade SA-36,SA-36M and SA-283
                                       SA-283M and also suitable for carbon steel and low alloy
                                       Steel.

SHIELDING GAS      :  MIG welding with CO2 gas and Ar+ CO2 gas mixture
                                      TIG welding with Argon gas

CHEMICAL COMPOSITION % ( solid wire chemistry )

C	Mn	Si	S	P	Cu
0.070-0.14	1.80-2.10	0.80-1.15	0.035 Max	0.025 Max	0.50 Max

ALL WELD MECHANICAL PROPERTIES FOR MIG ( UNDER CO2 GAS SHIELD )

YS (N/mm²)	UTS (N/mm²)	EL %	CHARPY “V” NOTCH IMPACT AT
500 Min.	550 Min.	20.0 Min.	Minus 30°C : 27 J Min

DIMENSION, CURRENT CONDITION & PACKING DATA (RAAJMIG 80SG)

Size(mm)	Size(inch)	Current Condition (DC+)	Voltage (V)	Gas Flow Rate L/min.	Spool packing 12.5 kg.	Spool packing 15 kg	Drum packing 100/200kg
0.80	0.031	60-180	16-24	10-20			X
1.20	0.047	120-300	24-34	15-25

DIMENSION, CURRENT CONDITION & PACKING DATA (RAAJTIG 80SG)

Size(mm)	Size(inch)	Length (mm)	Length (inch)	Current Condition (DC+)	Voltage (V)	Tube packing 5 kg	Box packing 20 kg
1.60	1/ 16”	1000	36”	80-110	10-16
2.0	5/ 64”	1000	36”	100-150	12-18
2.4/ 2.5	3/ 32”	1000	36”	130-180	14-20
3.2	1/ 8”	1000	36”	150-220	16-24
4.0	5/ 32”	1000	36”	200-280	18-28

Raajratna offer a wide range of copper coated welding wires for MIG/TIG/SA welding.
