high-speed electrode for fillet welds
- Mumbai/ Mundra/ Pipavav
- T/T L/C D/P D/A
You May Like
Product Details
Place of Origin | Gujarat, India | Brand Name | RATNA 7024 | |
Model Number | AWS A5.1: E7024 | Material | Stainless Steel | |
Length | 450mm | Diameter | 3.15mm,4mm,5mm | |
Application | Assembly of earthmoving equipments,Welding heavy columns, locomo |
Product Description

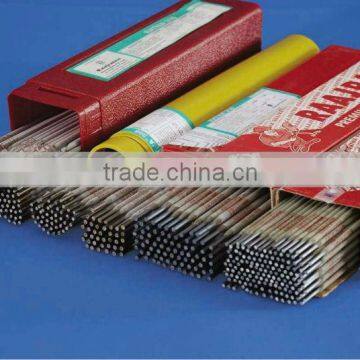

Welding Electrode
Low & Medium Tensile Steel Electrodes
RATNA 7024
Extra heavy coated, Iron powder & rutile type welding Electrode for high deposition efficiency 140% Min.
CLASSIFICATION : AWS/SFA-5.1: E 7024, BS 639 E 5122RR14032
IS-814: ERR 5242 KX , DIN 1913 E 5122RR1135140
CHARACTERISTICS : An extra heavy coated, iron powder, rutile type electrodes for achieving high deposition efficiency 140% Min. Electrode is touch welding type, gives smooth arc, least spatter losses, reduces welding time and gives increased productivity and output by using high current. Welds are of radiographic quality.
APPLICATION :
1) heavy sections machinery components.
2) Heavy Structural’s works like cranes and bridges.
3) Assembly of earthmoving equipments.
4) Welding heavy columns, locomotive.
5) Heavy machinery parts, in shipbuilding , pressure vessels etc.
RE-DRY CONDITION : Re-Dry the electrode at 120°C for one hour, for best results.
C | Mn | Si | S | P |
0.10 max. | 0.50-1.00 | 0.50 Max | 0.030 Max | 0.030 Max |
YS (N/mm²) | UTS (N/mm²) | EL % (l=4d) | CHARPY “V” NOTCH IMPACT AT |
400-500 | 500-600 | 22-28 | 0°C : 50-100 J |
Size(mm) (DXL) | Size(inch) (DXL) | Current Condition (DC-/AC) | No. of Pcs./pkt. | No. of Pcs./Case |
3.15/3.20x450 | 1/8”X18” | 140-170 | 75 | 300 |
4.00x450 | 5/ 32”X18” | 190-240 | 45 | 180 |
5.00x450 | 3/ 16”X18” | 230-290 | 25 | 60 |
