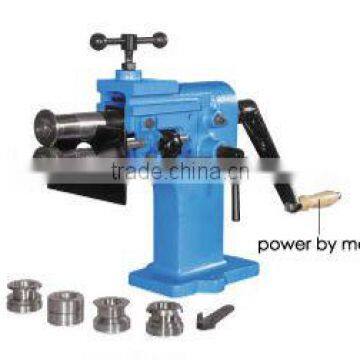

(TB-12) Metal Bead Bending Machine From China
Negotiable
/ Set
20 Sets(Min. Order)
- qingdao/shanghai/dalian
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | ouke | Model Number | Tb-12 | |
| Machine Type | Other, bead bending machine | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Carbon Steel | Power | Other, manual | |
| Automation | Manual | Extra Services | Machining | |
| Certification | CE | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
1. Cast iron construction2. Four sets of standard rollers
3. Special steel adjustable bottom spindle
Specifications
1. Cast iron construction
2. Four sets of standard rollers
3. Special steel adjustable bottom spindle
Features
1. Heavy and solid cast iron construction
2. Special steel adjustable bottom spindle.
3. Self-braking motor with subframe (E-type).
4.Easy to operate with foot pedal control (E-type).
5 4 sets of standard rollers.
Technical Specifications
| Model | TB-12 | ETB-12 |
| Thickness max | 1.2mm/18Ga | 1.2mm/18Ga |
| Cylinder length | 140mm/5-1/2" | 140mm/5-1/2" |
| Throat depth | 200mm/8" | 200mm/8" |
| Cylinder speed | - | 32rpm |
| Motor Power | - | 0.75kW/1HP |
| N.W. | 48kg | 120kg |
| Packing Size | 67x32x60cm | 110x48x148 |
