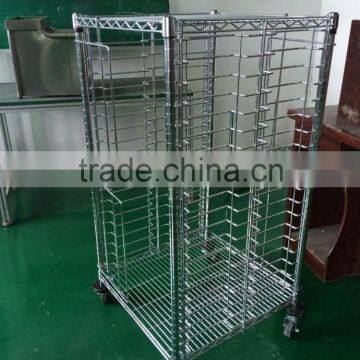

Electrolic storage ESD tray wire shelving trolley

SMT electrolic ESD tray wire shelving trolley

Normal size:

1.The size of cart : 735W*520D*1600H mm

2.The size of ESD plastic tray : 660W*460D*30H mm

3.The cart can hold 30 pcs ESD Plastic Tray(you can add two handles)

4.5'' ESD Caster(2 brake + 2 no brake)

6.2 pcs handle.

We are a factory,so different size can be cuastomized,but the size need to based on the size of plastic tray.

The size of ESD plastic tray:

375*250*65mm

440*290*80mm

315*230*40mm

432*290*50mm

228*168*38mm

282*192*26mm

300*200*21.5mm

375*275*40mm

660*560*32mm

The picture of ESD plastic tray:

SMT electrolic ESD tray wire shelving trolley

Available in full-size heights of 62 3/8 in. or half-size heights of 49 3/8 in., vibration-dampening tray cart stores and transports trays of vibration-sensitive electronic components. ESD protection is provided via aluminum split sleeves and drag chain or ESD cable grounding device. Product employs polyurethane, 50-shore A casters with expander stems and 5 in. swivels, with brakes on two. Offered in side- and end-loading models, cart has open-wire construction.

Electronics Tray Cart features chrome-plated tray slides with conductive plastic split sleeves. Add permanently conductive fiberglass trays (sold separately) to create a complete conductive storage unit. 1³/₄" slide space between trays. Other features include: front and back stop bars, anti-tip design, and (4) conductive casters, 2 with brake. Grounding cable included. Appropriate for lean manufacturing . .

Caster Height:5"

Caster Type:Conductive

Tray Spacing:1³/₄"

Material:Steel

SMT electrolic ESD tray wire shelving trolley store and move printed circuit boards on 26 x 20 inch ESD trays and ESD protective mats. Drag chain channels static electricity to ground. Smaller, 46 in. high model holds 20 trays, while 64 in. model stores up to 30 trays. Hard rubber-wheeled 4 in. Total Lock casters, available in standard or ESD versions, provide simultaneous wheel braking and swivel lock for stable positioning. Carts handle up to 425 lbs each.

 SMT electrolic ESD tray wire shelving trolley are offered in half size and full size units, designed to handle work in process. ESD trays can be used on tray cart for conductive applications with the addition of aluminum split sleeves (ESD-SS) And a drag chain . Optional Tray Stop prevents trays from

falling out. Finish: Chrome

SMT electrolic ESD tray wire shelving trolley provide economical solutions for storage and transport of trays. End-load models provide a large tray landing area, side-load models are highly space efficient. Choice of 1-1/2" spacing (38 pans) or 3" (20 pans) spacing. UPS shippable, quick, easy no-tool assembly, rolls easily on 5" swivel casters. Durable Super Erecta Brite finish.

ESD Classification: Non-Conductive (Units can be made conductive with use of 1 bag of conductive plastic split sleeves per shelf and a grounding cable or conductive casters).

The certification of our product

CE certification

Our factory business license:

 Our factory :

-Over 11 years experience in manufacturing
-Strictly quality control, nice design,competitive price

-Enjoy a high reputation at home and abroad

-We have more than 100 professional  technical engineer

*Our main product:*


We supply a lot of metal rack, such as:

          Kitchen racks, Bathroom racks, Wine rack, Fruit basket, handcart series, Shoe rack , Book rack, Wire shelving ,Accessory series, storage roll cage, pet cage,SMT Material storage series, PCB storage series, Worktable series, Storage series.
