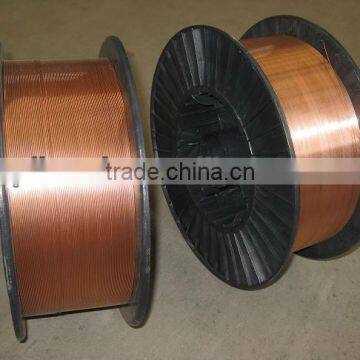

CO2 gas shielded mig mag welding wire ER70S-6

co2 gas shielded welding wire er70s-6

Brief Introduction:

HSMH co2 gas shielded welding wire er70s-6 has excellent technological properties such as smooth steady feeding, fast melting iatej high depositing efficiency, little sparer and beautiful seamj which are suitable fur all position welding work.

The series of welding wires are mainly suitable for welding low carbon steel and low alloyed steel structure, such as ships, vehicles, bridges, engineering machinery, pressure vessel and construction, etc.

Basic Information:

1. Standard:

   AWS: ER70S-6

   GB: ER50-6

   DIN: SG2

   BSA 5.18

   JISYGM12

   EN: G3Si1

 2. Material: 5.5mm low carbon steel produced by Qing Steel

 3. Surface: copper coated

 4. Shielded gas: CO2

 5. Welding position: all position

 6. Diameter: 0.8, 0.9, 1.0, 1.2, 1.6mm

 7. Application: The welding wire is used for welding low carbon structural steel and low alloy steel, such as ships, vehicles, bridges, heavy-duty machines, boilers, pressure vessel, buildings. etc.

  Chemical composition:

Typical mechanical properties of deposited metal:

Diameter of wire &  reference current (DC⁺)

 NOTE:

1.To guarantee usage performance of  the welding wire,please clean the surface contamination before usage.

2.The sretching length of the welding wire should be specially noted while welding,even that it can improve welding melting efficiency while also can worse welding process and performance if it is too long,such as bigger splashing and worse form.

3.when the wind speed is higher than 1.8m/s or welding in high floor,windshield measure should be taken and welding joint can't be blowed directly by fan

4.the flow of protection gas should be controlled between(15-20)L/min

5.splashing welding contamination in conductive mouth and conductive tube should be cleaned timely,it should be keep clean especially in large electrical current.

our products:

HSMH CO2 gas shielded weiding wires have excellent technological properties such as smooth steady feeding,fast melting rate,high depositing efficiency,stable arc,little spatter,beautiful seam,which are suitable for all position welding work.

The series of welding wires are mainly suitable for welding low carbon steel and low alloyed steel structure,such as ships,vehicles,bridges,engineering machinery,pressure vessel and construction etc.

1. Package: 15kg/20kg per plastic spool, covered by wax paper, heat-shrieked film, 1pc in one carton, 72/84 cartons per wooden pallet; 250kg/350kg per drum, 4 drums in one pallet. Or according to your specific requirement.

2. Payment: 30% T/T as down payment, balance against copy of B/L or L/C.

3. MOQ: 5Tons

4. It can load 25tons in 1X20FCL.

5. Delivery: within 15 days after receiving down payment.

Why choose our products of the HSMH ?

1) We are the factory, is a trading company, industry and trade integration of the manufacturers welcome!

2) We have more than 20 years of production experience, our excellent facilities and good price competitive advantage .

3) Our products, to the wire as an example, has these advantages, less smoke, less splash, plating finish, good fluidity .

4) We provide free technical training and solutions. If you have any questions feel free to contact us, we will be on hand to answer your questions.

Free Samples can be sent to check.

our enterprise's idea is " No end in pursuing high quality product:No flaw in serving our customers."
