corrugated paperboard rotary die cutting machine
- 50 Set / Sets per Month
- tianjin port
- T/T L/C
You May Like
-
corrugated carton box rotary die cutting machine / box making machine
-
carton box rotary die cutting machine / carton boxmaker
-
corrugated box rotary die cutting machine / machinery making box
-
3 layer corrugated paper rotary die cutting machine
-
raw material for carton boxes / automatic paper die cutter machine
-
automatic die cutter machine / carton box making machine prices
Product Details
Condition | New | Application | Other, Machinery & Hardware | |
Packaging Type | Cartons | Packaging Material | Paper, Wood | |
Automatic Grade | Semi-Automatic | Driven Type | Electric | |
Voltage | 220V/380V | Power | 1.5kw | |
Place of Origin | Hebei, China | Brand Name | jinguang corrugated paper making machine | |
Model Number | JGPC-06002 | Weight | 1000kg | |
Dimension(L*W*H) | Depends on the machine model | Certification | ISO9001:2000/ CE/SGS | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
machine troduction

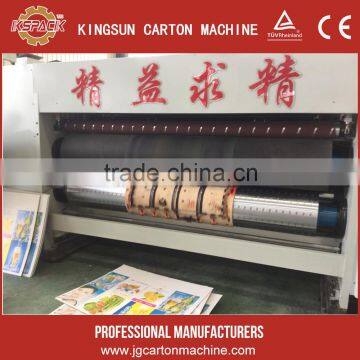

Automatic Rotary Die cutter
1. Using vacuum suck back-stopper and feeding automatic make the crooked carton level off.
2. All the transmission gears are made of high quality hardened and ground steel which has gringdinged under high temperature, Rockwell Hardness> 40º.
3. Spraying circulation is adopted to lubricate the gears, reducing noise and prolonging the service life.
4. The rubber roller and stencil roller both are made of high quality ground and chromed steel.
5. All drums are dynamic balanced, enhancing the transmission stability.
6. The stencil and rubber roller can auto take off by cylinder and partialities to ease the burden of the machine and extend the service life.
7. Air-operated automatic elevator device work in feeding system.(The roller descend when feeding and it rise when feeding stop. )
8. Move axis of merchanic transmission rubber roller 60mm, circumferencial direction differential device, cut at different position every time. (no circulate limitlessly)
9. Unique speed difference compensate device, whatever the dia. of cushion change, the device can make the rubber roller along with template roller glide, accordinerally let the surface of cushion and knife template at same speed and insure every batch carton in one size.
10. Equipped with high quality import amending rubber cushion, amending 3-4 times (1-1.5mm/time), prolong the service life.
11. Phase adjustment, epicyclic gear frame, electric digital 360º adjust.(open, stop, positive and negative all can be operated)
Model | MQJ 1300 | MQJ 1600 | MQJ1800 | MQJ 2000 |
Mechanical maximum speed (Piece/min) | 120 | 120 | 120 | 120 |
Rapid economic growth (Piece / min) | 100 | 100 | 100 | 100 |
Maximum feed size (mm) | 1300×1300 | 1300×1600 | 1300×1800 | 1300×2000 |
Minimum feed size (mm) | 400×600 | 400×600 | 400×600 | 400×600 |
To adapt to the thickness of cardboard | 3-5 ply | |||
Maximum cutting size (mm) | 1200×1200 | 1200×1500 | 1200×1700 | 1200×1900 |
Main Motor Power (KW) | 4.0 | 4.0 | 4.0 | 4.0 |
OUR ADVANTAGE
- 1)---High Quality
- 2)---Reliable
- 3)---Durable
- 4)---Reasonable Price
- 5)---Good after Service
- 6)---Passed ISO9001:2000,SGS certification
- 7)---Passed CE certification
- 8)10 year experience
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good aftersales-service, its free of charge during the warranty period.
3)Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we supply the technical support for the whole life of the equipment.
4:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI arrange the deposit or L/C---then OK
5:How to visit our company:
(1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you at the station.
(2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions,you can call my mobile phone at any times:0086-13703272761
