Home > Products > welding helmet > Masks Face Skull Helmet With 9-13 Din

Masks Face Skull Helmet With 9-13 Din

FOB Price

Negotiable / Piece

8 Pieces(Min. Order)

Port Qingdao or Shanghai
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	HSMH or OEM
Model Number	HSKM-Series	Auto-Darkening	Yes
Switch Time	1/25,000 seconds	View Area	100X 49mm , 93X 43mm
Solar Powered	Yes	Cartridge Size	103 X 54X 6mm , 95 X 48X 6mm
Sensitivity	adjustable: low / high	Power Supply	solar cell & lithium batteries
Helmet Material	PP

Product Description

Specifications

1. Auto darkening welding helmets
2. Welding + Grinding, perfect face protection from welding
3. CE&ANSI standard
4. OEM: YES

FAQ

1.Are your company a trading one or a factory?

We are Factory + trader

2.After an order is placed, when to deliver?

It depends on whether the products you buy has inventory. If we have inventory, as usual we can arrange shipment after 2 to 3 days.. If not, it will be decided by the time of the factory production.

3. Is your company accepting customization?

we accept OEM/ODM.

4.How about your company's certification?

CE, ANSI, ROHS

5.If the products are not conformity with requirements, how to solve?

If the products are not conforming to customer samples or have quality problems, our company will be responsible for it.

Product Description

1. Auto Darkening Welding Helmet,Welding Mask,Solar Powered Welding Mask

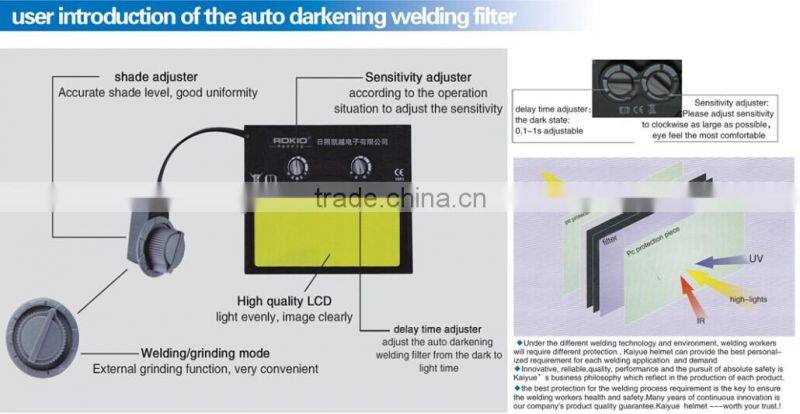

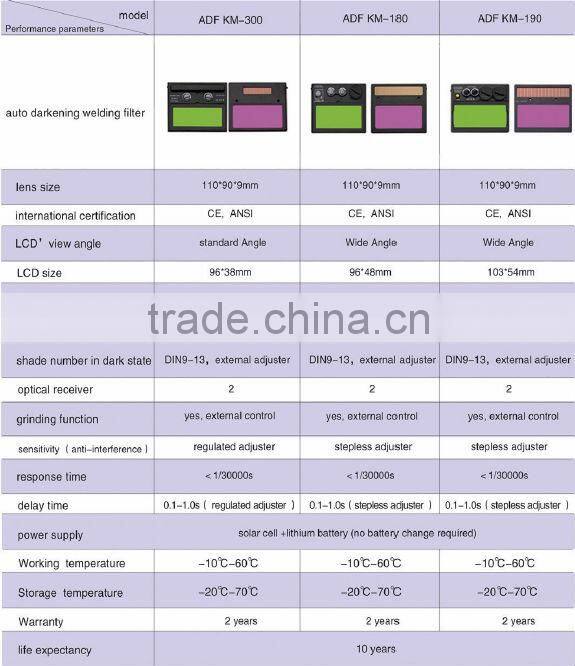

Technical Parameters	Helmet Model : (HSKM-Series)
Light states	DIN 4
Dark states	DIN9-13 free adjustment (Outside Variable)
Cartridge Size	103 X 54 X 6mm 95 X 48X 6mm
Response time( bright to darke)	< 1/25,000 seconds (normal temperature conditions)
The return time ( dark to bright)	adjustable: 0.15 S ~ 0.8 S
Sensitivity (welding based on current size)	adjustable: low/high
Battery:	lithium battery + solar cells (No Battery change required)
View Area:	100X49mm 93X 43mm
Ultraviolet transmittance:	313nm ≤0.00006% , 365nm ≤0.00006%
Uv protection:	15 levels
Infrared ray through rate:	780 ~ 1300nm ≤0.003% , 1300 ~ 2000nm≤ 0.009%
Working temperature:	-5°C ~ +55°C (23°F ~ 131°F)
Storage temperature:	-20°C ~ +70°C (-4 °F ~ 158 °F)
Masks materials:	The original import ultra light strengthen PP of South Korea
Weight:	450G

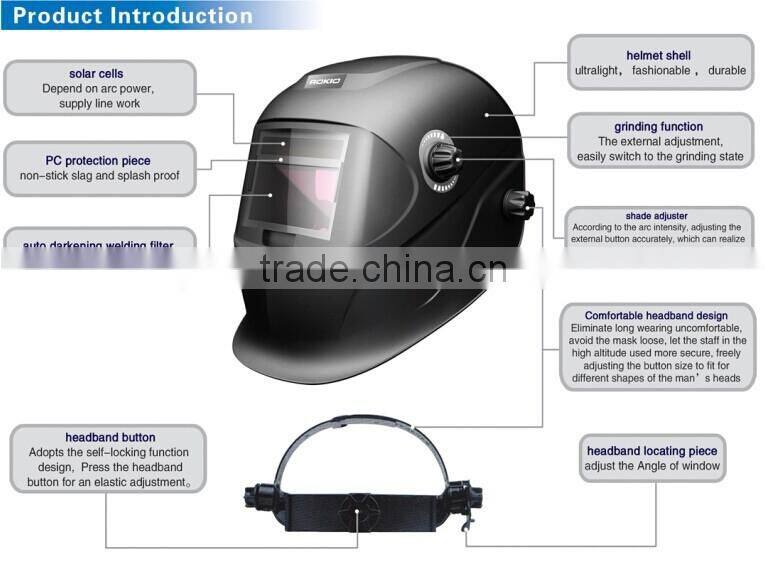

2. Auto-Darkening Welding Helmet Characteristics:

1.High strong materials and fire retardant, can prevent resistance ,anti-aging.

2.High definition protective filter,you can see the welding conditions clearly

when welding the goods.Welding luminosity is soft and comfortable.

3.It works the moment you start work,this products adopts advanced circuit design.

Striking the arc,the observing window darkens immediately.

4.Fashion appearance,ultra light designing,wearing comfortable.

5.High performance solar cells and lithium battery.

6.Sensitivity and delay time can be adjustable.

7.Working current range is big,which can be used for 400`450v welding current,

completely suitable for ships,aviation,tanks,rail transportation etc.

8.Applicable scope: electric welding, argon arc welding and gas shielded welding,

tin welding etc.outside of laser welding.

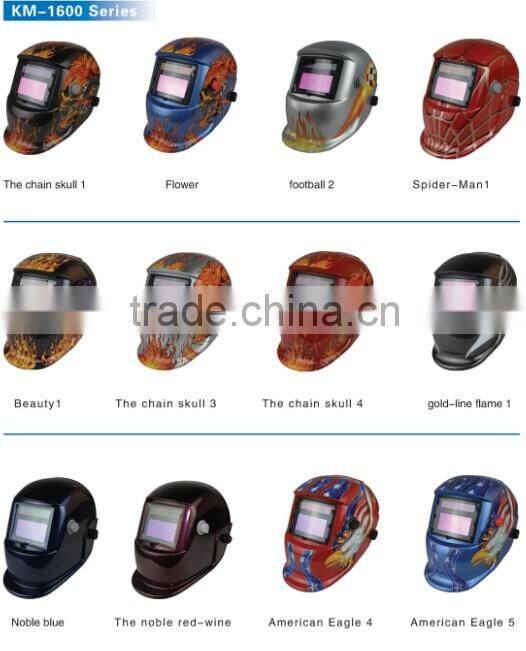

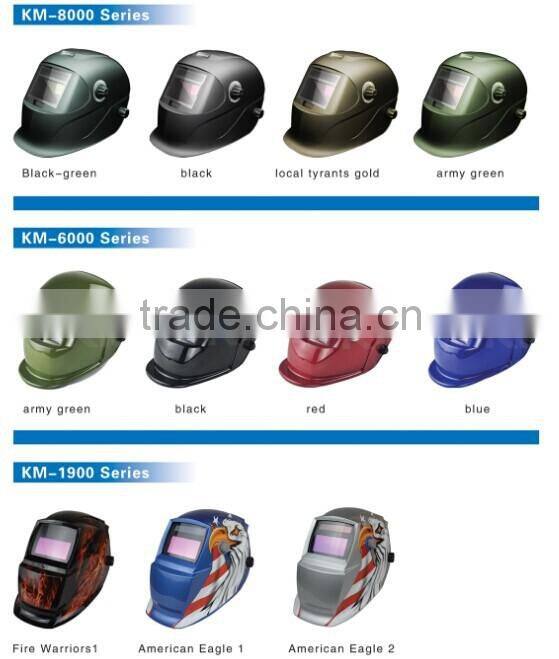

3. Products Picture.

4. Our Fair Show

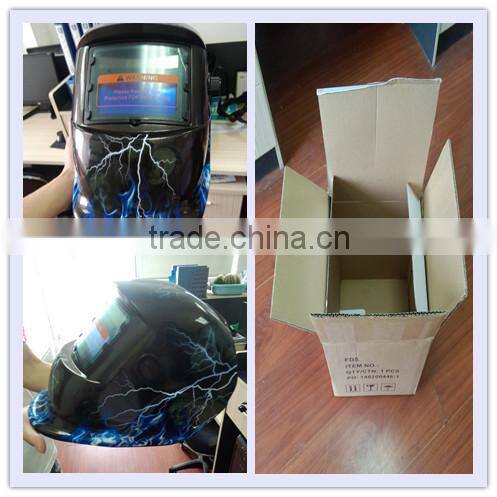

5. Packaging:

6. Welcome to contact us:
