Super Brightness Led Injection Module With Outdoor Waterproof LED 6 Chips SMD 2835 Led Module AC220V for Light Box
- guangzhou/shenzhen/zhongshan
- Credit Card
You May Like
-
Good Price High Quality 12V 3 Chips Waterproof Injection 5730 Led Smd Module for Light Box
-
3 Chips 5050 Led Smd Module 0.72W Best Price High Quality Dc12v IP65 Waterproof for Signage
-
Led Module 5050 0.48W High Quality Super Brightness 12V CE ROHS Certificated Waterproof IP65 RGB Led 5050 Smd Module
-
ZhongShan Factory Sign Module IP67 Waterproof 160 Degrees 12V 192LM CE Rohs Smd 6 Leds Module for Channel Letter
-
Mini Led Module Cool White Dc12v Ip67 CE Rohs Certificate 160degrees 1W Led Cob Module for Small Channel Letters
-
Waterproof IP65 Led Module Type 2835 3 Chips 0.72w Smd Injection Led Module for Light Box Quality Choice
Product Details
| Model Number | DW-M017-3W | Chip Material | AlGaInP | |
| Emitting Color | Cool White | Luminous Intensity | High | |
| Luminous Flux(lm) | 250lm | Optical Attenuation(%) | 0.2 | |
| Power | 3W | Power Dissipation | 0.72 | |
| Color Rendering Index(Ra) | 85 | Color Temperature | 10000K\6000K\3000K\R\G\B | |
| Operating Temperature(℃) | -40, 60 | Storage Temperature(℃) | -40, 60 | |
| Place of Origin | Guangdong, China | Brand Name | Shield King | |
| Certification | CE |
Product Description
Why choose us?

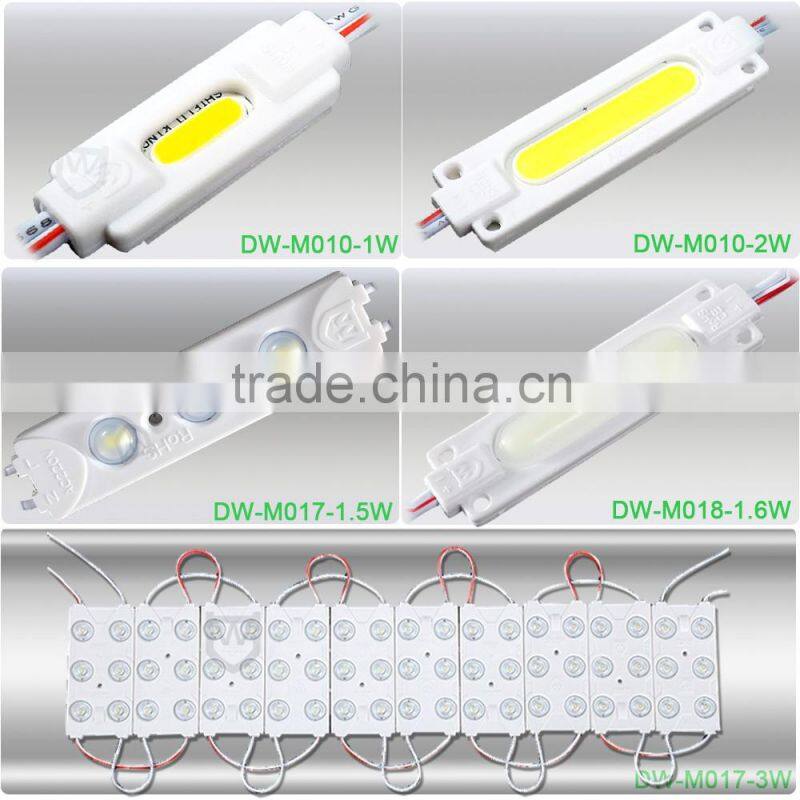

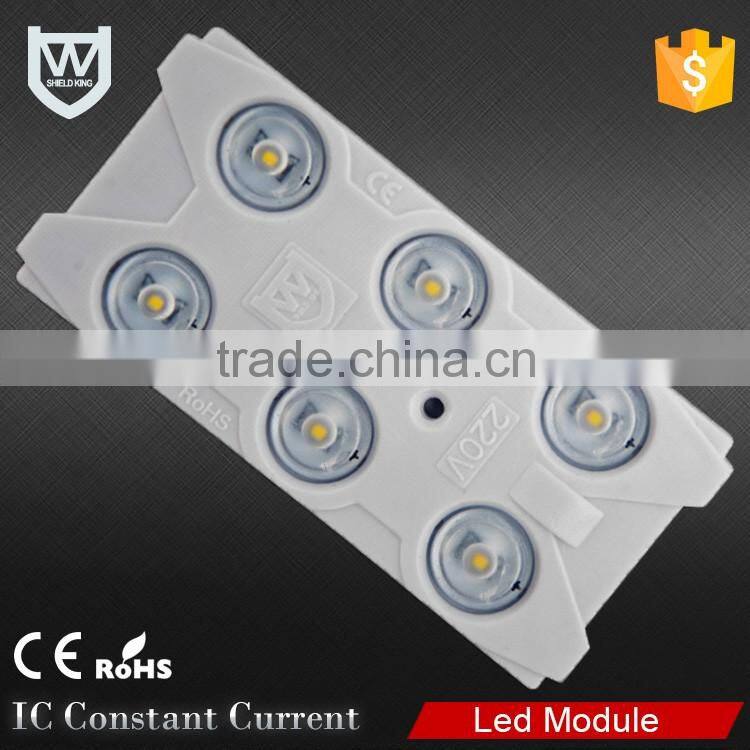

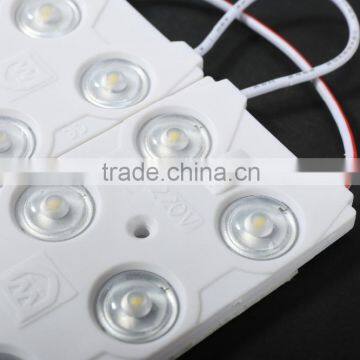

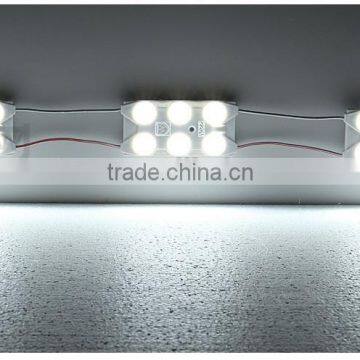

Super brightness led injection module with outdoor waterproof LED 6 Chips SMD 2835 led module AC220V for light box.
PRODUCT PARAMETERS | |||

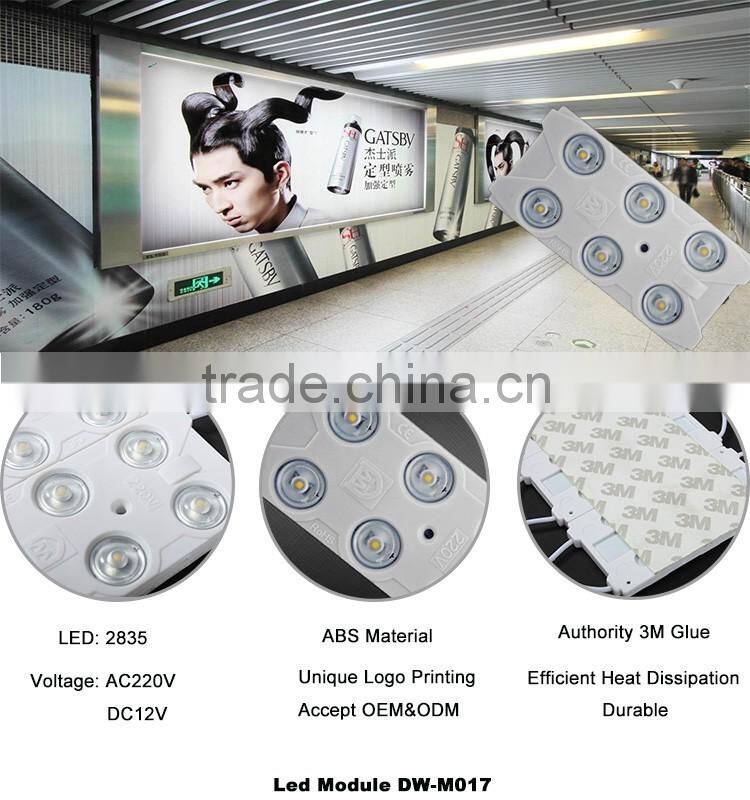

Item | DW-M017 | Angle | 160° |
power | 3W | IP Rating | IP67 waterproof |
LED | 2835 6PCS | Operating Temperatures | -40°—60° |
Voltage | AC220V | Series Qty | the largest series 60pcs (prohibit surpass in series qty) |
Material | PCB+ABS | Adapter power | NO NEED POWER |
Size | L87*W42*H8mm | Relative Humidity | 10%—90%RH |
CCT | 10000K6000K3000KRGB | Continuous power | >90% |
Lumen | 250LM | Warranty | 3years |
Current | 20MA | Packaging details | 10pcs per bunch 10bunch per bag 5bag per carton(500pcs per carton) |
Working life | ≥50000hrs | Carton size | 44*35*27cm |
Power factor | >0.9 | Weight |
|
Performance features:
(1)High quality import chip,Top-encapsulation ,high brightness,small lighting failure,good lighting effect

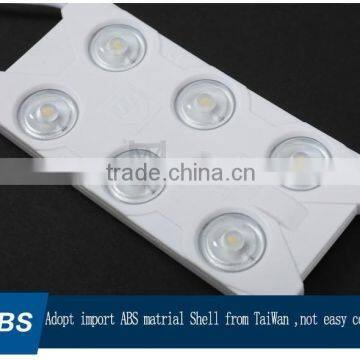

(2)Tai Wan Qi Mei sizing material anti flaming,anti-static,strong weather ability,impact resistant
(3)better heat dissipation,low-power,long-life,maintenance-free

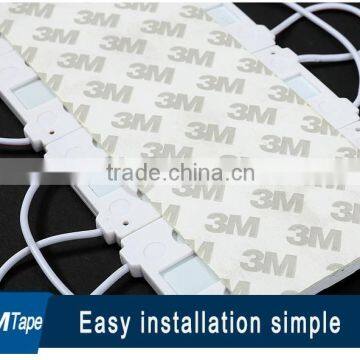

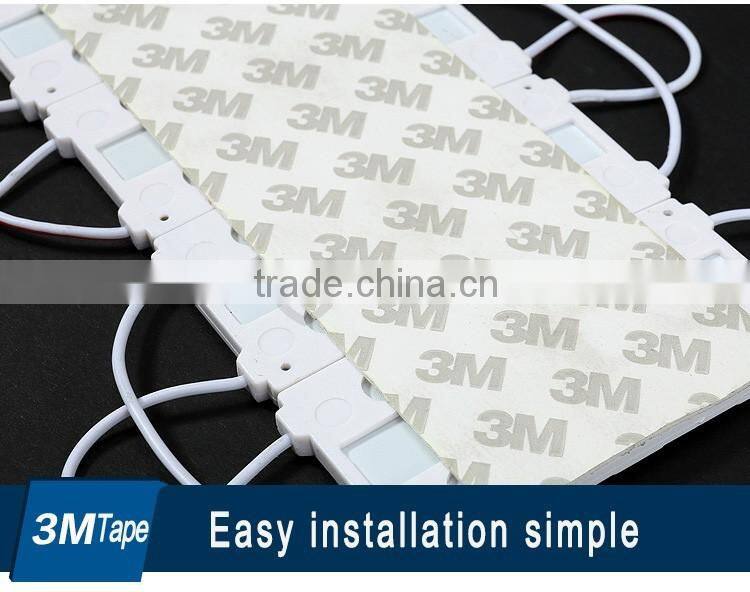

(4)With double-sided adhesive and screws two installation methods, the customers install and use easier
LED module ABS injection ,cob led module.Aluminum plate heat dissipation ,waterproof.

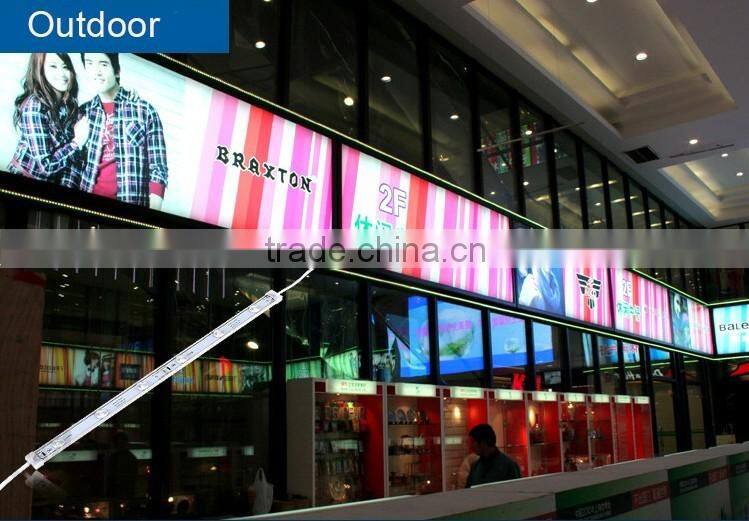

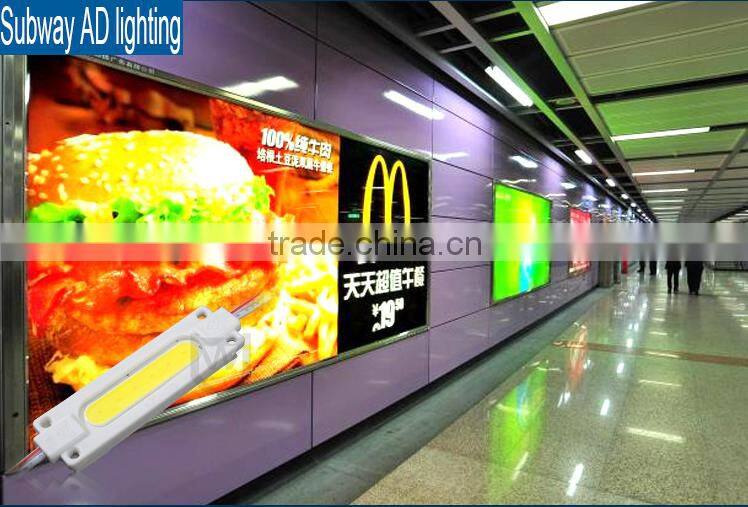

LED injection module for AD lighting boxes in subway, airport, railway station etc.



Our LED product has such features as energy conservation, environment protection, low carbon, healthy and durability.
Possessing advanced R&D team with high technology, we have comprehensive ability on LED lighting product appearance design, LED power driven design, optical design, heat dissipation design and water-proof design.
Our high-quality management team and strict production requirements ensure our product to be equipped with “the quality of Shield and the light of King”. We have thoughtful pre-sales, sales and after-sales service. Our noble customers’ satisfaction is our pride.
Our key products include LED indoor and outdoor lighting series. We have such products as LED fluorescent tube,LED module,LED light source,LED advertising lighting, LED ceiling spotlight, LED down lamp, LED track spotlight, LED bean lamp, LED panel lamp, LED colorful tube, LED digital tube, LED flood light, LED wall washer, LED underwater lamp, LED light source, LED road lamp, etc.
Our products are widely applied to such environments and fields as home furnishing, hotel & hostel, supermarket, store, parking lot, office building, KTV, garden, plaza, road, etc.

Packaging
•Normally neutural packed with carton.The carton size are according to the item size.
• And the details of package are according the demand of client.
Shipping
• Samples and small order shipped by Express (DHL/FEDEX/TNT/UPS/EMS/BY ),Big order generally by sea shipping .
• Lead time:Generally within 30 days after confirming the order .
- We are a professional designer and manufacturer of LED Module and Advertising light source.
- We have many patented products of led module in china.we innovate the products usually.
- We can desing and produce the led module as your requirement.
- Our products can be OEM, and the package can be your design.
- Our advantages and quick delivery,Competitive price,high quality and long term service to our customers.
- We provide best service for guests!

1. Can i get a sampe order for testing?
A: Yes, we welcome sample order to test and check quality. with freight collect or prepaid by
Paypal or Western Union or T/T.
2. How can i test SHILED KING led module?
A: Connect the wire of modules to your own power supply whose output voltage should be DC12V or
DC24V.If you do not have such a power supply, please ask us to provide with samples. pls kindly note
the +/- marks on the wire and connect to the +/- pole of power supply correctly.
3. What is the max quantity of one string?
A: Normally we suggest max 20pcs per string the largest series 60pcs(prohibit surpass in series qty)
if you really need more quantity of a string, please contact us to check the possibility.

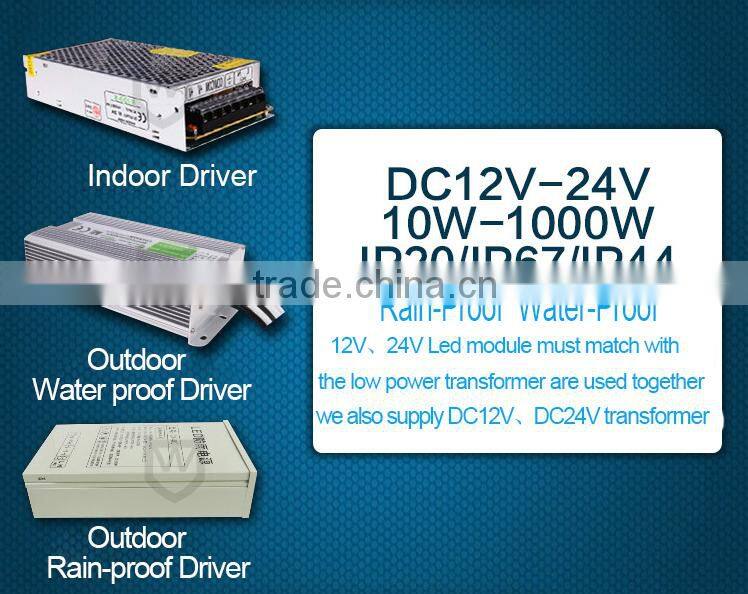

4.Do you also sell power supplies or connectors for the led modules ?
A: Yes. But please make sure the power supply should allow some capacity to protect itself and
modules with 20%~30% capacity unused, i.e. Power Input is 20%~30% more than the exact
power consumption of modules connected to it.
5.Can I install the high power LED modules into outdoor advertising
boards or use in opening conditions directly?
A: Our modules’ IP rating is IP65, are suitable to be used in outdoor advertising lighting boxes,
sign board channel letters or carbines, but we suggest better not to be exposed to opening
conditions influence working life.
6.How to deal with the defect products?
A: Firstly, our defective rate is less than 0.3%, so there is no big problem to the led modules.
Secondly, we usually offer 3 years warranty for our led modules.
Thirdly, during the guarantee period, we will resend new lights with the new order for small quantity,
if there are many lights don't work, we can repair them, then resend them to you.
7. Can we get support if we have our own market position?
A: Please inform us your detailed mind on your market demand, we will discuss and propose helpful
suggestion for you to find the best solution for you.
