YNZSY-LTY Tire Pyrolysis Oil Cleaning Recycling Machine
- Chongqing Shanghai
- T/T Credit Card
You May Like
-
TYRE OIL SOLUTION: YNZSY-LTY Used Tire Oil Distilled Plant Remove Smell, Restore Color
-
Made in China Waste Tyre Oil Refining Equipment With CE ISO
-
China Manufacturer Waste Tire Oil Pyrolysis Plant
-
Yuneng Oil Filter Waste Tire Oil Refining Plant
-
Chongqing Top Supplier Used Waste Tire Oil Refining Machine in India
-
TYRE OIL SOLUTION: YNZSY-LTY Waste Tire Oil Recycling Plant Remove Smell, Restore Color
Product Details
| Condition | New | Type | Other, Tire pyrolysis Oil Recycling | |
| Structure | Vacuum | Place of Origin | Chongqing, China | |
| Brand Name | Yuneng-Tire pyrolysis Oil Recycling | Model Number | YNZSY-LTY Series | |
| Power(W) | 13kw | Weight | 1500kg | |
| Dimension(L*W*H) | 4.7x2x3.2m | Certification | CE, ISO, SGS | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
YNZSY-LTY Tire pyrolysis Oil Cleaning Recycling Machine1. purify waste tyre oil
2. remove odd smell
3. remove color
YNZSY-LTY Tire pyrolysis Oil Cleaning Recycling Machine
YNZSY-LTY Tire pyrolysis Oil Cleaning Recycling Machine removing bad smell is a new technology, researched and developed by YUNENG and Chongqing University based on the natures of tire oil. It runs under low temperature from the beginning to the end.
YNZSY-LTY Tire pyrolysis Oil Cleaning Recycling Machine can effectively remove particles, colloidal matter, acid and odour from tire oil by acid-treatment and filtration. Finally you can get oil with clean and transparent color and qualified smell to improve its economic value. It has high recycling rate, low costs of energy consumption, It is suitable for purification and deodorization of tire oil.
Features
1) It combines physical and chemical method to remove the tiny impurities and colloidal substance in the tire oil.
2) We use special sand filtration technology to remove impurities and odour quickly, to restore color of used tire oil and improve quality
3) Interlocked electrical control system is safe, reliable and easy to operate.
4) There is automatic filling system which can fill the tire oil into tank automatically to save the human power.
5) The used tire oil cleaning machine occupies small area with novel structure and reasonable layout.
6) Obvious and direct effect from low treatment cost.
Main Structure
1) Filling system ( oil and chemicals)
2) Blending process system (chemical reaction and physical absorption)
3) Filtration process system
4) control system
5) vacuum system
6) No heating
YNZSY-LTY Tire pyrolysis Oil Cleaning Recycling Machine Parameter (choose a suitable model for you)
Index | Unit | YNZSY-LTY250 | YNZSY-LTY500 | YNZSY-LTY1000 | YNZSY-LTY1500 | YNZSY-LTY2000 |
Treatment capacity | L/H | 250 | 500 | 1000 | 1500 | 2000 |
Loading capacity | Liters | 250 | 500 | 1000 | 1500 | 2000 |
Recovery | % | 75-90 | 75-90 | 75-90 | 75-90 | 75-90 |
Working pressure | MPa | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
Vacuum degree | MPa | -0.06~ -0.095 | -0.06~ -0.095 | -0.06~ -0.095 | -0.06~ -0.095 | -0.06~ -0.095 |
Noise | dB(A) | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 |
Power | Kw | 10KW | 13KW | 13KW | 15KW | 15KW |
Size | M | 3X2X3.2 | 3.5X2X3.2 | 4.7X2 X3.2 | 5X2X3.2 | 6X2X3.2 |
Weight | Kg | 800 | 1300 | 1500 | 1700 | 2000 |

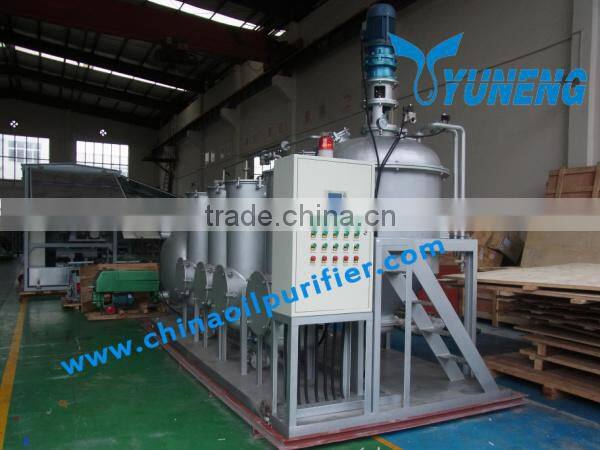

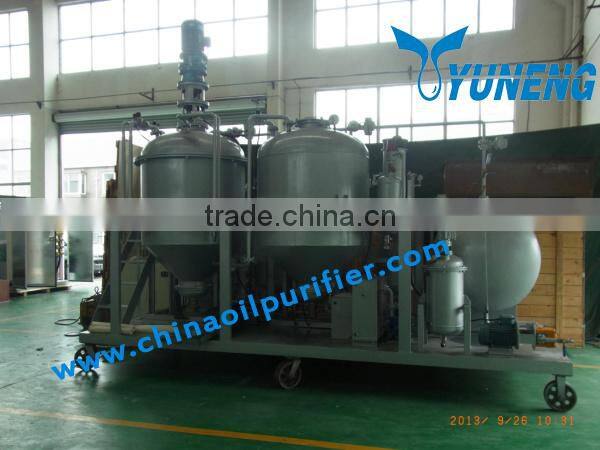

Look at factory and workshop
To be shipped
YNZSY-LTY Tire pyrolysis Oil Cleaning Recycling Machine before and After treatment
Yuneng products list:
1. Insulation Oil purifying machine:
ZJA Ultra-high Transformer / Insulation Oil purifying machine (1000KV, ±800KV, 750KV, ±660KV project) ( 2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil purifying machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil purifying machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).
JZ OLTC (on-load tap changer) online Oil purifying machine
Quantitative oil injection machine (customized product)
2. Turbine Oil purifying machine:
JT coalescing dehydration oil purifying machine (dehydration by special filters)
DYJC online turbine oil purifying machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil purifying machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil purifying machine:
ZJC-R vacuum Oil purifying machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil purifying machine for OCS. (oil with high viscosity 100-320cst at 40°C)
4. Other kinds of oil purifying machine:
KYJ fire-resistance oil purifying machine (EHC oil)
LY plate-frame pressure oil purifying machine (simple, paper filtration)
YL mobile oil purifying machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by distillation)
YNZSY Waste tire oil recycling machine (by chemicals)
YNZSY-LTY Tire pyrolysis Oil Cleaning Recycling Machine (by chemicals)
Waste oil distillation machine
