Product Details
| Place of Origin | Guangdong, China | Brand Name | Niteray | |
| Model Number | U50 | Type | VoIP Gateway |
Product Description
Specifications
1) 100 IP Phone registers & 20 concurrent call2) 4 FXO/FXS ports optional
3)1PRI &4 BRI support
The U50 IP Phone System is an ideal solution for small and medium business with up to 100 extensions.U50 supports industry standard SIP trunks, analog PSTN trunks (FXO Module), analog stations (FXS Module), mobile GSM trunks (GSM Module), as well as digital trunks (PRI/BRI Module).
Hightlights & Features
-IP PBX design for Office/Soho/Hotel ect.
-Up to 100 IP Phone Registers/Extensions& 20 Concurrent Call Legs
- HD Voice Codec G.722 for perfect voice quality
- Fax to Email/Email to Fax
- Voicemail to Email
- Console Port for easy management
- USB Port for expanded storage or 3G network connectivity
- Hardware Echo Cancellation module for great and smooth communication
Telephony Configuration

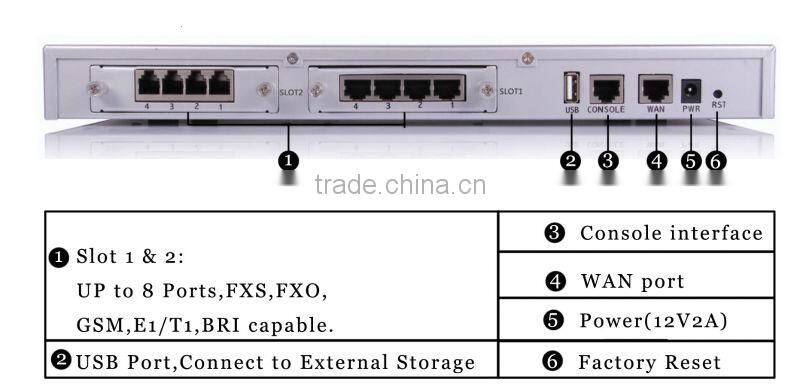

| Module | Slot1 | Slot2 |
| 4FXS | YES | YES |
| 4FXS | YES | YES |
| 2FXOS | YES | YES |
| 2GSM | YES | YES |
| 4GSM | YES | YES |
| 1PRI | YES | NO |
| 4BRI | YES | NO |
Slot 2 is for Analog/GSM Modules only
| System Specifications | ||
| Call Features | System Capacities | |
| Call Back | 20 Concurrent Call Legs | |
| Call Forward | Up to 100 IP Phone Registers/Extensions | |
| Call Group | Recording: 21,000 mins (.gsm); 3,000 mins (.wav) | |
| Call Hold | Voicemail: 21,000 mins (.gsm); 3,000 mins (.wav) | |
| Call Paging and Intercom | Codecs & Protocols | |
| Call Park | Audio Codecs: G.722/G.711-Ulaw/ G.711-Alaw/ | |
| Call Pickup | G.726/G.729/GSM/SPEEX | |
| Call Queue | Video Codecs: H.261/H.263/H.263+/H.264 | |
| Call Recording | Protocols: SIP (RFC3261)/IAX2 | |
| Call Routing | DTMF: RFC2833/SIP INFO/In-Band | |
| Blind Transfer | Network Features | |
| Attended Transfer | DDNS Client | |
| Call Waiting | DHCP Server | |
| Caller ID | IPv4/IPv6/IEEE802.1Q | |
| Dial by Name | IP Assignment (PPPoE/DHCP/Static) | |
| Music On Hold/Transfer | SNMP v1/v2 | |
| 3-Way Conference | TR069 | |
| Video Calls | Static Route Table | |
| Trouble Shooting (Ping/Traceroute) | ||
| PBX Features | VPN Client (N2N/L2TP/PPTP/OpenVPN) | |
| Black List | VPN Server (PPTP/L2TP/OpenVPN, Up to 10 Users) | |
| BLF (Busy Lamp Field) | Security Features | |
| CDR (Call Detailed Record) | Refuse SIP Register DoS | |
| Conference Room (3 Rooms) | Refuse Abort Invite DoS | |
| Call Monitoring | Refuse SSH Login DoS | |
| DID (Direct Inward Dialing Number) | Firewall | |
| DISA (Direct Inward System Access) | Logs | |
| Distinctive Ringtone | PBX Log | |
| DND (Do Not Disturb) | Web Access Log | |
DNIS (Dialed Number Identification Service) | PBX Debug Log | |
| Feature Codes | Hardware Interfaces | |
| FOP (Flash Operation Panel) | 1 Reset Button | |
| Follow Me | 1 Power Interface | |
| IVR (Interactive Voice Responses) | 1 Ethernet Interface | |
| Mobility Extension | 1 Console Interface | |
| Multi-Language Prompts | 1 USB Interface | |
| Multi-Language GUI | 1 Hardware Echo Cancellation Interfaces (Onboard) | |
| One Touch Recording | 1 UMTS Interface for 3G Data (Onboard) | |
| Phone Book | Slot 1 for ZYCOO Analog/GSM/PRI/BRI Module | |
| Phone Provisioning | Slot 2 for ZYCOO Analog/GSM Module | |
| Pin Set | Hardware Specifications | |
| Record File Download | Processor: DualCore 500MHz DSP | |
| Ringgroup | SDRAM: DDR2 256MB | |
| SIP Register with UDP/TCP/TLS | Storage: 4GB SD Card | |
| SIP Trunk | Power Supply: Input AC 100~240V, 50/60Hz; | |
| Skype for SIP | Output DC 12V/2A | |
| Smart DID | Environment | |
| Speed Dial | Working Temperature: 0°C ~40°C | |
| Spy | Storage Temperature: -20°C~55°C | |
SRTP (Secure Realtime Transport Protocol) | Humidity: 5~95% Non-Condensing | |
| T.38 Fax (Pass-through) | Packings | |
| Time Based Rule | Dimension: 410 × 220 × 85mm | |
| Virtual Fax | Weight/Unit: 1.8kg | |
| Voicemail & Voicemail to Email | Unit/Carton: 6 Units | |
| Weight/Carton: 12kg |
