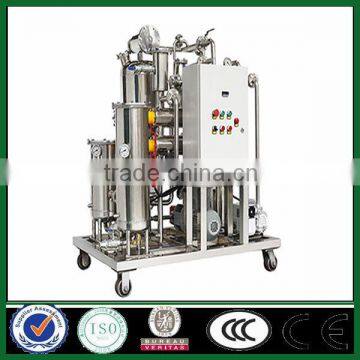

KYJ Vacuum Type Fire-Resistant Oil Cleaning Machine
- 300 Set / Sets per Month
- Shanghai..Chongqing...etc
- T/T Credit Card
You May Like
-
Vacuum Fire-Resistant Oil Treatment Machine/EH Oil Purifier
-
Vacuum Fire-Resistant Oil Purification Equipment/EH Oil Purifier
-
Latest Technology KYJ Vacuum Type Fire Resistant Oil Filtration Machine
-
Stainless Steel And Anti-explosion Fire Resistant Oil Filtering Machine
-
Latest Design CE Approved Fire Resistant Oil Filter Machine
-
China Leading Supplier, KYJ Series Fire Resistant Oil Purifier
Product Details
Condition | New | Flow | 10L/min | |
Working Pressure | ≤0.5Mpa | Place of Origin | Chongqing, China | |
Brand Name | Yuneng | Model Number | KYJ | |
Usage | Other, Fire-Resistant /EH oil cleaning machine | Voltage | 380V, 50Hz,3 phase or follow yours | |
Power(W) | 10.5kw | Dimension(L*W*H) | 130x90x150cm | |
Weight | 370kg | Certification | CE, ISO9001 | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Oil cleaning Machine1. Vauum type
2. Stainless steel material
3. Acid-removal
KYJ Vacuum Type Fire-Resistan Oil cleaning Machine (also call EH oil purifier)
KYJ Oil cleaning Machine is especially designed for fire-resistant oil with suitable material for vacuum dehydration, particles-removal and acid-reduction.
For customer choice, we also have a simple type to purify fire-resistant oil: KYJ-I high precision oil filtration. It has simple structure with multi-stage filters to remove particles to NAS grade 5. This machine almost could not remove water. It is suitable for customer who cares about cleanness but does not care about water content.
Features:
1. The tank and pipelines where fire-resistant oil going through are all made of stainless steel.
2. Dehydrate by vacuum distillation, water content less than 100ppm.
3. Oil-input and oil-output keep balance by photoelectric switch which is sensitive and accurate to monitor oil level in the tank, stop inputting oil when level marked high and keep inputting oil when low. Therefore, all series of YUNENG brand oil filtration machines never spray oil.
4. We use filters which designed only for fire-resistant oil to remove particles. Cleanness up to NAS grade 5.
5. There is system with absorbent to solve acid problem.
6. After treatment, the important index-resistivity up to ≥ 6 x 109.
Factory & workshop look
To be shipped
Parameter
Item | Parameter | Unit | KYJ-10 | KYJ-20 | KYJ-30 | KYJ-50 | |
Technical Parameter | Flow Rate | L/MIN | 10 | 20 | 30 | 50 | |
Working Vacuity | Mpa | -0.09 | |||||
Working pressure | Mpa | ≤0.5 | |||||
Temperature Range | oC | 45-65 | |||||
Power Supply |
| 50Hz 380V 3-Phase, Wire (or as requested) | |||||
Total Power | KW | 10 | 12 | 13.5 | 33 | ||
Inlet/Outlet Diameter | mm | 32 | 48 | ||||
Size | Length | mm | 1200 | 1200 | 1200 | 1600 | |
Width | mm | 940 | 960 | 1000 | 1200 | ||
Height | mm | 1550 | 1550 | 1600 | 2000 | ||
Weight | Kg | 380 | 400 | 420 | 500 | ||
Oil Treatment Index | Water Content | ppm | ≤50 | ||||
Filtering Accuracy | µm | ≤1 | |||||
Cleanness | NAS | Grade 5 | |||||
Acid Value | Mg KOH/g | ≤0.03 | |||||
Resistivity | .cm | ≥5x109 |
Yuneng products list:
1. Insulation Oil re-cycle Machine :
ZJA Ultra-high Transformer / Insulation Oil purifying machine (1000KV, ±800KV, 750KV, ±660KV project) ( 2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil purifying machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil purifying machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).
JZ OLTC (on-load tap changer) online Oil purifying machine
Quantitative oil injection machine (customized product)
2. Turbine Oil purifying machine:
JT coalescing dehydration oil purifying machine (dehydration by special filters)
DYJC online turbine oil purifying machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil purifying machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil purifying machine:
ZJC-R vacuum Oil purifying machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil purifying machine for OCS. (oil with high viscosity 22-320cst at 40°C)
4. Other kinds of oil purifying machine:
KYJ fire-resistance oil purifying machine (EHC oil)
LY plate-frame pressure oil purifying machine (simple, paper filtration)
YL mobile oil purifying machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil purifying machine (by chemicals)
YNZSY-LTY used tire oil purifying machine (by chemicals)
