Home > Products > JT / DYJC Online Coalescing Turbine Oil Purifier > JT Series High-Efficiency Dehydration Oil Refining Purifier
JT Series High-Efficiency Dehydration Oil Refining Purifier
- 300 Set / Sets per Month
- Shanghai...Chongqing...etc
- T/T Credit Card
You May Like
-
JT series coalescing dehydration and separation oil purifier
-
JT Series Dehydration And Precise Filtering Oil Refining Purifier
-
YUNENG JT series coalescing dehydration and separation oil separation system
-
JT Industrial oil recycling machine with cars oil filtration
-
JT Coalescing and Dehydration Filtering Machine For Light Oil
-
JT Coalescing and Dehydration Filtering Machine For Turbine Oil
Product Details
| Condition | New | Flow | 6000L/H | |
| Working Pressure | ≤0.35Mpa | Place of Origin | Chongqing, China | |
| Brand Name | Yuneng | Model Number | JT-Dehydration Oil Filtering Machine | |
| Usage | Other, Coalescing and Dehydration Oil Filtering | Voltage | 380v,50hz,3 phase or follow yours | |
| Power(W) | 1.5kw | Dimension(L*W*H) | 175x110x165cm | |
| Weight | 450kg | Certification | CE,ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JT Series High-Efficiency Dehydration Oil Refining Purifier
(remove water from turbine oil by speical filters, no heating, no vacuum)
for higher requirements, serch our DYJC which conbined JT with vacuum systems
JT Series High-Efficiency Dehydration Oil Refining Purifier dehydrates by 2 kinds of filter elements. Coalescing filter will make the free and dissolved water from small molecule to big drop, then separation filter remove the water drop by gravity, falling into the water tank. It removes the particles by stages of filters and cleanness up to NAS grade 6.
JT Series High-Efficiency Dehydration Oil Refining Purifier is applicable for on line running with light oil filled, turbine oil filled and lubricating oil filled systems, especially good for water- leakage systems.
Features:
1. The pipelines and tank of the purifier can be stainless steel or carbon steel.
2. Oil / water interface detector is used to monitor water level and discharge water automatically.
3. The electric system is controlled by PLC (with touch screen) , the working conditions of all the parts are displayed clearly, monitoring, alarming, action control and safety stop enable the oil filtration machine to run online.
4. Germany brand oil pump has good sealing quality, low noise and long service life.
5. Multilayer filtration can remove the impurities through coarse filter, protecting filter, and fine filer. Granularity test is good to achieve NAS6.).
Technical Data of JT Series High-Efficiency Dehydration Oil Refining Purifier
Item | Parameter | Unit | JT-50 | JT-100 | JT-150 | JT-200 | |
Technical Parameter | Flow Rate | L/MIN | 50 | 100 | 150 | 200 | |
Working Pressure | Mpa | ≤0.5 | |||||
Temperature Range | oC | 45-65 | |||||
Power Supply |
| 50Hz 380V 3-Phase 4-Wire (or as requested) | |||||
Total Power | KW | 1.5 | 3 | ||||
Inlet/Outlet Diameter | mm | 32 | 38 | 45 | 50 | ||
Size | Length | mm | 1500 | 1500 | 1600 | 1650 | |
Width | mm | 1000 | 1050 | 1200 | 1250 | ||
Height | mm | 1400 | 1400 | 1500 | 1600 | ||
Weight | Kg | 450 | 500 | 600 | 700 | ||
Oil Treatment Index | Water Content | ppm | ≤100 | ||||
Kinematic Viscosity | m/s | ≤20% in comparison to the original bias value of new oil | |||||
Demulsibility | min | ≤15 | |||||
Filtering Accuracy | µm | ≤5 | |||||
Cleanness | NAS | Grade 6 | |||||
Oil Appearance |
| Transparence | |||||
According to your financial budget and requirements on purified oil, you can choose our ZJC-T vacuum oil purifier (dehydrate by vacuum distillation) or JT online coalescing dehydration oil purifier (dehydrate by special filters) or DYJC online oil purifier (combined function of ZJC-T and JT to dehydrate by both vacuum distillation and special filters).
Contact us now to discuss your oil condition and get our professional solution.

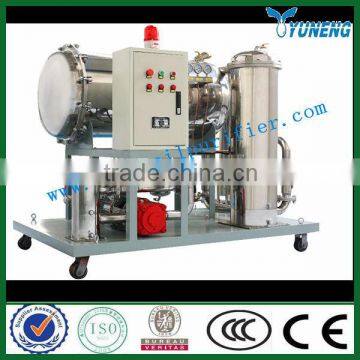

Photos of JT Series High-Efficiency Dehydration Oil Refining Purifier
After-sales Services
One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.
Founded in 1997, Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd located in Chongqing China. Our company is a new and high-tech joint-stock enterprise. We specialize in the R&D, manufacturing, and marketing of oil, water and gas filtering and purification products and complete sets of related equipment. We gather a group of specialized talents with years of working experience and technological development. We can produce 1,000 sets of oil-filtering equipment and purification equipment for other fluids each year. So far we have sold over 15,000 sets of Yuneng-brand oil purifiers. Twenty of our new technologies have received national patents of invention. In 2004 and 2009, our company was rated as “new and high-tech enterprise of Chongqing” twice; there are eleven series products rewarded as “New and High-tech Products of Chongqing”. We have passed I S O 9 0 0 1 quality management certification; some products have passed CE certification, such as YNZSY used oil recycling machine, ZJA double stage vacuum oil purifier. Our products are popular in central South Asia, Middle-East, Europe, America and dozens of countries.In 2009, the latest statistic from Chinese market research center indicated that, among the domestic oil purifier industry, our company’ s market share, competiveness, ranks number one. Yuneng has become a famous brand in the middle-high oil treatment industry. Looking forward to be your supplier and welcome to visit Yuneng.
Factory & workshop look
Yuneng products list:
1. Insulation Oil Purification Series:
ZJA Ultra-high Transformer / Insulation Oil Filtration Machine (1000KV, ±800KV, 750KV, ±660KV project) ( 2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil Filtration Machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil Filtration Machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).
JZ OLTC (on-load tap changer) online Oil Filtration Machine
Quantitative oil injection machine (customized product)
2. Turbine Oil Filtration machine:
JT coalescing dehydration oil filtration machine (dehydration by special filters)
DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil Filtration machine:
ZJC-R vacuum Oil Filtration machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil...)
ZJC-M Oil Filtration machine for OCS. (oil with high viscosity 22-320cst at 40°C)
4. Other kinds of oil filtration machine:
KYJ fire-resistance oil filtration machine (EHC oil)
LY plate-frame pressure oil filtration machine (simple, paper filtration)
YL mobile oil filtration machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil recycling machine (by chemicals)
YNZSY-LTY used tire oil recycling machine (by chemicals)
Waste oil distillation machine
6. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
