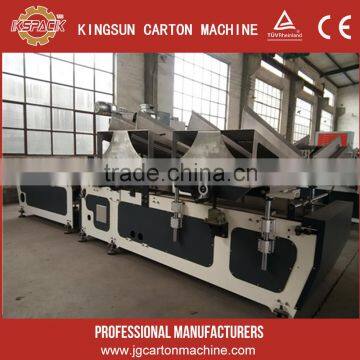

automatic corrugated paperboard partition assembling machine

FOB Price

US$ 19,000 - 30,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Machinery & Hardware
Packaging Type	Cartons	Packaging Material	Wood, Other
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V/380V	Power	8KW
Place of Origin	Hebei, China	Brand Name	KINGSUN
Weight	1000kg	Dimension(LWH)	Depends on the machine model
Certification	ISO9001:2000/ CE/SGS	After-sales Service Provided	Engineers available to service machinery overseas

automatic corrugated paperboard partition assembling machine

Automatic cardboard assemble machine feature:

1.Vacuum sucker adsorb feed cardboard lengthways

2.Pneumatic feed cardboard crosswise,right and fast

3.Electric adjust lengthways feeding cardboards device go up and down

4.Electric adjust crosswise feeding cardboards device go up and down

5.Electeic adjust crosswise grating height

6.Crosswise and lengthways feeding paperboards can work at same time

7.Adpot for every carton boxes,grating,parrying

8.Double station feed cardboard,double work efficiency

9.Pneumatic and electric control ensure the machine advancement

10.Adpot for compressed air hold-up vessel central gas supply,air pressure reliable

11.Testing faulting device,if has problem during the operation of machine,then will autoamtic stop work

Name	Size	Data
Crosswise insertion width A	mm	KSJ 450-2 model
		120-700	Single out
		120-320	Double out
		KSJ 450-3model
		120-900	Single out
		120-420	Double out
Crosswise feeding cardboards length B	mm	120-450
Grating height C	mm	80-300
lengthways cardboards insertion spacing D	mm	20-250
Crosswise cardboards insertion spacing D	mm	KSJ 450-2 model
		50-115	2insert double out
		50-230	2 insert single out
		50-250	4 insert single out
		KSJ 450-3model
		50-110	3 insert double out
		50-225	3 insrt single out
		50-128	6 insrt single out
Cardboard slot width	mm	>cardboard thickness
Cardboard thickness	mm	1.5-8mm
