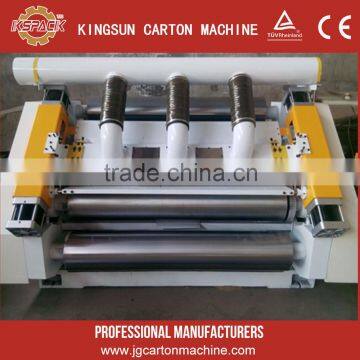

paperboard corrugation single facer equipment
- tianjin port
- T/T L/C
You May Like
-
e flute corrugation machine
-
SF-320S(360S) corrugated cardboard fingerless type single facer machine for carton box / double layer production line machine
-
corrugated cardboard rotary sheet cutting for carton box packaging machine / sheet cutter machine production line
-
Paper box Single facers,corrugated carton making machine
-
SF-280S adsorb type single facer corrugation machine ,carton box making machine
-
single facer for corrugated paperboard,carton single facer factory
Product Details
Condition | New | Application | Other, Machinery & Hardware | |
Packaging Type | Cartons | Packaging Material | Paper | |
Automatic Grade | Semi-Automatic | Driven Type | Electric | |
Voltage | 220V/380V | Power | 1.5kw | |
Place of Origin | Hebei, China | Brand Name | jinguang corrugated paper making machine | |
Model Number | JGF-06019 | Weight | 1000kg | |
Dimension(L*W*H) | Depends on the machine model | Certification | ISO9001:2000/ CE/SGS | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
paperboard corrugation single facer equipment
corrugated carton factory Technical parameter :
Working Width | 1600mm | 1800mm | 2000mm | 2200mm | |||
Heating method | Oil heating / Steam heating/electrical heating | ||||||
Design speed | 80m/min | ||||||
Economical speed | 45-60 m/min | ||||||
Compress-air pressure | 0.4-0.9MPa | ||||||
Flute type | Standard flute | UVE Flute | |||||
Standard spec. | A,B,C,E,F | ||||||
For other type and model, we can produce as customer’s requirement. | |||||||
Corrugated roll diameter (mm) | 280 | ||||||
Wall Thickness (mm) | 130 | ||||||
Type | Vacuum Absorb | ||||||
Roller material | 48CrMo alloy, Heat treated | ||||||
Machine Size (mm) | 3300*1300*1700 | 3550*1300*1700 | 3800*1300*1700 | 4050*1300*1700 |
Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.
Characteristics:
1. Cover vacuum suction.
2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3. No gear transmission.
4. Glue roll is lifted and lowered pneumatically.
5. Independent glue clean device and electric glue-separate board to control the width of glue.1.Manually regulate or electrically regulate the display device.
6. Lubricated by high temperature lubricate grease.
7.Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.
8. Pressure roll is medium- frequency quenched and chrome-plated.
9. Width 1400mm~2000mm.
10. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.
OUR ADVANTAGE
- 1)---High Quality
- 2)---Reliable
- 3)---Durable
- 4)---Reasonable Price
- 5)---Good after Service
- 6)---Passed ISO9001:2000,SGS certification
- 7)---Passed CE certification
- 8)10 year experience
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good aftersales-service, its free of charge during the warranty period.
3)Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we supply the technical support for the whole life of the equipment.
4:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI arrange the deposit or L/C---then OK
5:How to visit our company:
(1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you at the station.
(2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions,you can call my mobile phone at any times:0086-13703272761
