Single Facer Corrugated Machine,corrugated Cardboard Making Machine
- tisnjin
- T/T D/P D/A
You May Like
-
Corrugator , Corrugated Cardboard Making Machine ,carton Box Making Machine Prices
-
Paper Corrugated Making Machinery,corrugated Paper Making
-
1.6m Single Facer , Corrugator ,corrugated Cardboard Single Facer Machine
-
Duplex Paper Board Packing Production Line ,corrugated Cardboard Single Facer Machine
-
Semi-automatic Box Gluing Machine ,corrugated Paperboard Gluer Machine
-

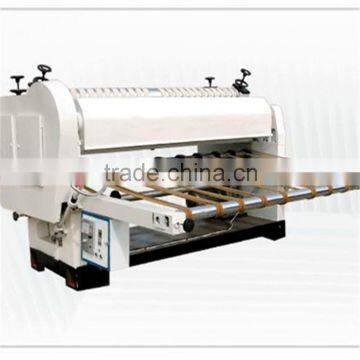

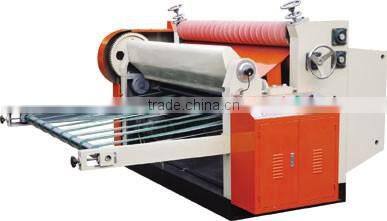

Single Sheets Cutter / Corrugated Paperboard Cutting Machine (after Single Facer)
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Cartons | Packaging Material | Metal, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 4KW | |
| Place of Origin | Hebei, China | Brand Name | JGF-06036 | |
| Model Number | JGF-06036 | Dimension(L*W*H) | Depends on the machine model | |
| Weight | 1000kg | Certification | ISO9001:2000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
single facer corrugated machine,corrugated cardboard making machine
single facer corrugated machine,corrugated cardboard making machine
Working Width | 1600mm | 1800mm | 2000mm | 2200mm | |||
Heating method | Oil heating / Steam heating/electrical heating | ||||||
Design speed | 80m/min | ||||||
Economical speed | 45-60 m/min | ||||||
Compress-air pressure | 0.4-0.9MPa | ||||||
Flute type | Standard flute | UVE Flute | |||||
Standard spec. | A,B,C,E,F | ||||||
For other type and model, we can produce as customer’s requirement. | |||||||
Corrugated roll diameter (mm) | 280 | ||||||
Wall Thickness (mm) | 130 | ||||||
Type | Vacuum Absorb | ||||||
Roller material | 48CrMo alloy, Heat treated | ||||||
Machine Size (mm) | 3300*1300*1700 | 3550*1300*1700 | 3800*1300 | ||||

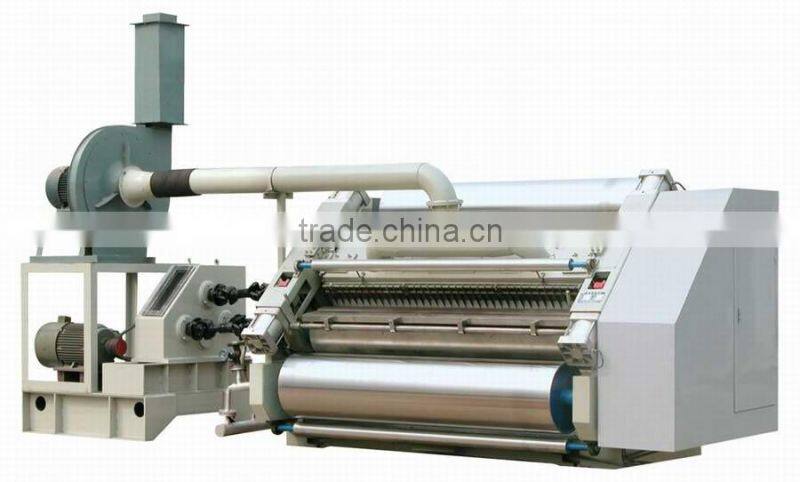

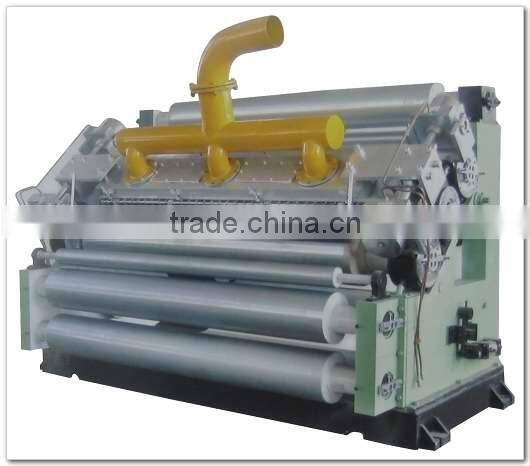

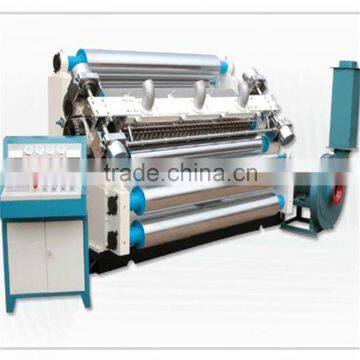

Introduction:single facer corrugated machine,corrugated cardboard making machine
Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.
Characteristics:single facer corrugated machine,corrugated cardboard making machine
1. Cover vacuum suction.
2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3. No gear transmission.
4. Glue roll is lifted and lowered pneumatically.
5. Independent glue clean device and electric glue-separate board to control the width of glue.1.Manually regulate or electrically regulate the display device.
6. Lubricated by high temperature lubricate grease.
7.Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.
8. Pressure roll is medium- frequency quenched and chrome-plated.
9. Width 1400mm~2000mm.
10. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.
OUR ADVANTAGE
- 1)---High Quality
- 2)---Reliable
- 3)---Durable
- 4)---Reasonable Price
- 5)---Good after Service
- 6)---Passed ISO9001:2000,SGS certification
- 7)---Passed CE certification
- 8)10 year experience

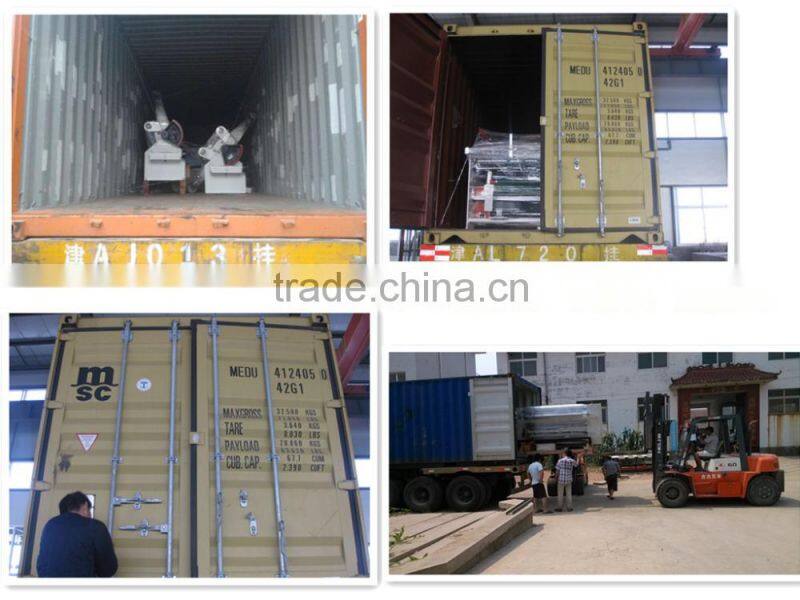

Packing and shipping
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main corrugated box machines and un-coiler is naked(If you need we can also packed with water-proof plastic)
3. PLC control system and motor pump are packed in wooden box with water proof paper coverage

Contact Us
- Cangzhou Kingsun Imp.& Exp. Co., Ltd.
- Contact namelinda liu Chat Now
- Phone86-317-7759118
- AddressXINYI CENTER BUILDING1-320B , XINHUA DISTRICT, CANGZHOU CITY, Cangzhou, Hebei
Product Categories
New Products
-
Folder Glue Corrugated Box Making Machine , Corrugated Carton Box Folder Gluer Machine
-
Chain Slotting Machine for Card Box Making Carton Machine
-
Golden Supplier Automatic Hydraulic Mill Roll Stand Machine/corrugated Cardboard Paper Production Line
-
320s/360s Single Facer Corrugator Machine /double Corrugated Cardboard Making Machine/carton Box Making Machine
-
Heavy Type Single Facer Machine /double Corrugated Cardboard Paper Making Line/carton Box Making Machine
-

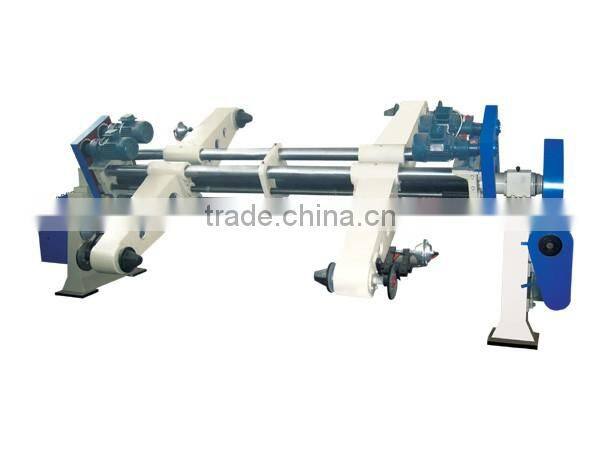

Corrugated Cardboard Mill Roll Stand Carton Box Making Machine
-

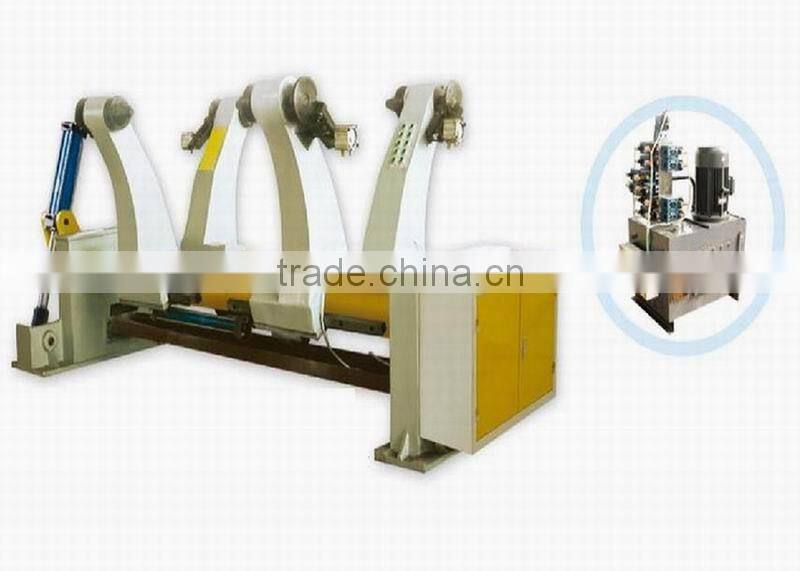

Corrugated Cardboard Hydraulic Pressure Mill Roll Stand/Corrugated Cardboard Production Line/Carton Box Making Machine Prices
-

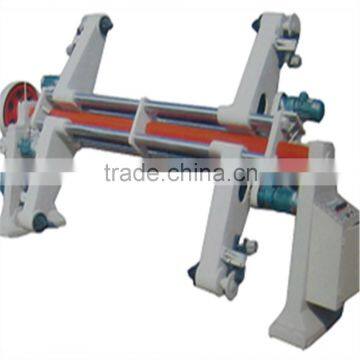

Carton Box Making Machine / Corrugated Cardboard Electrical Mill Roll Stand
-
