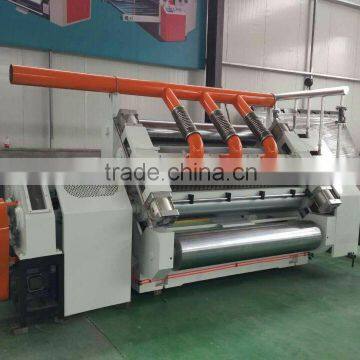

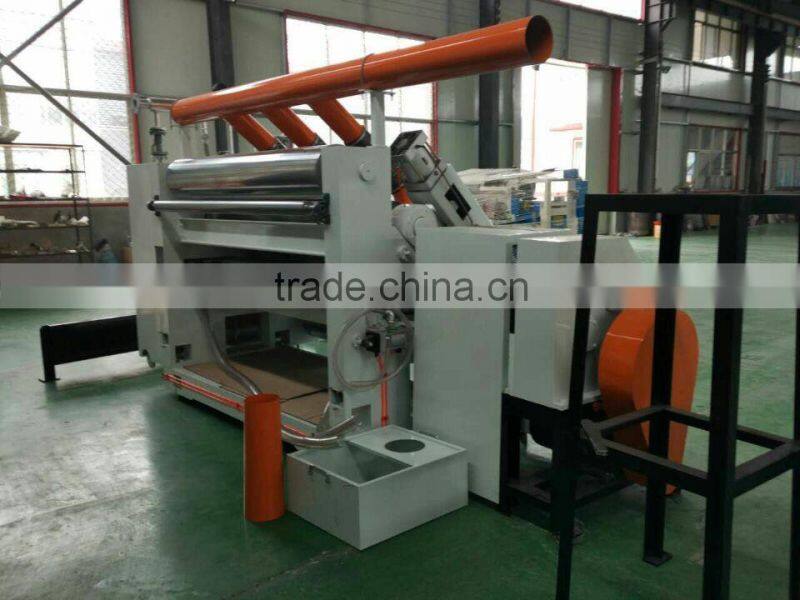

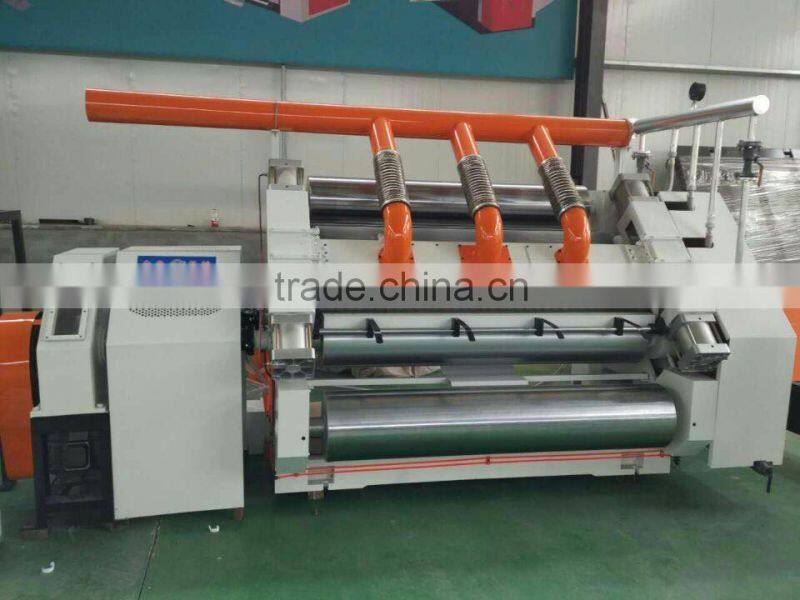

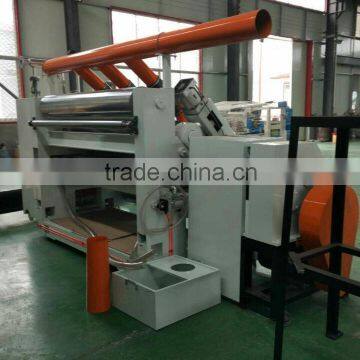

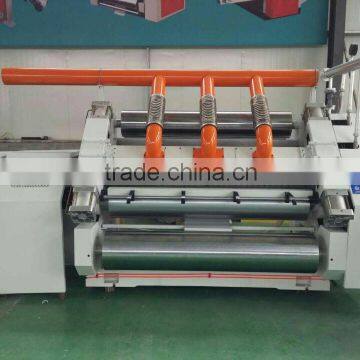

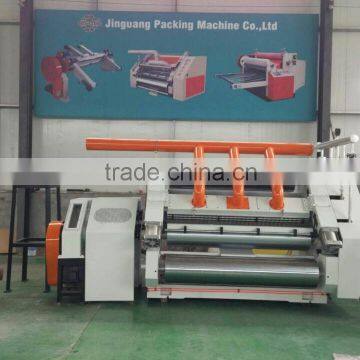

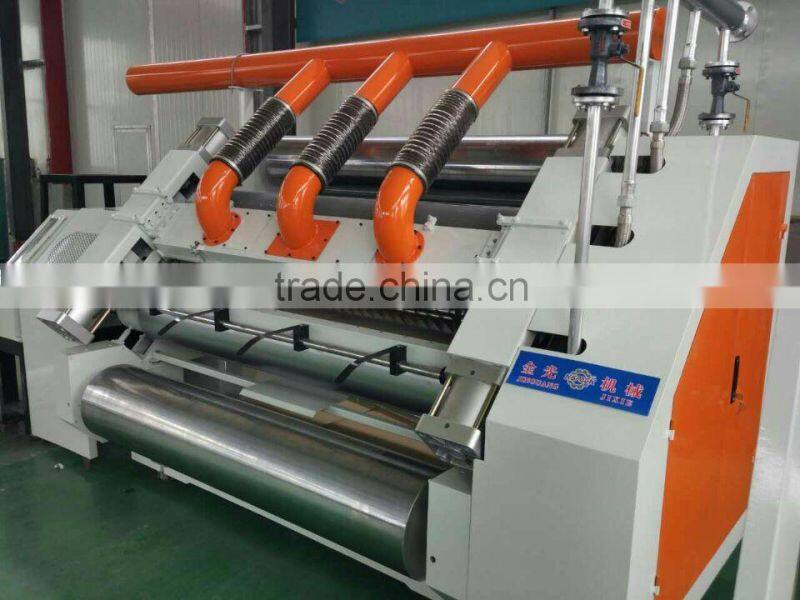

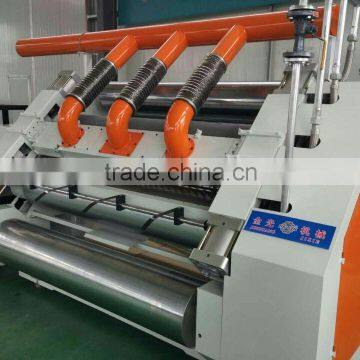

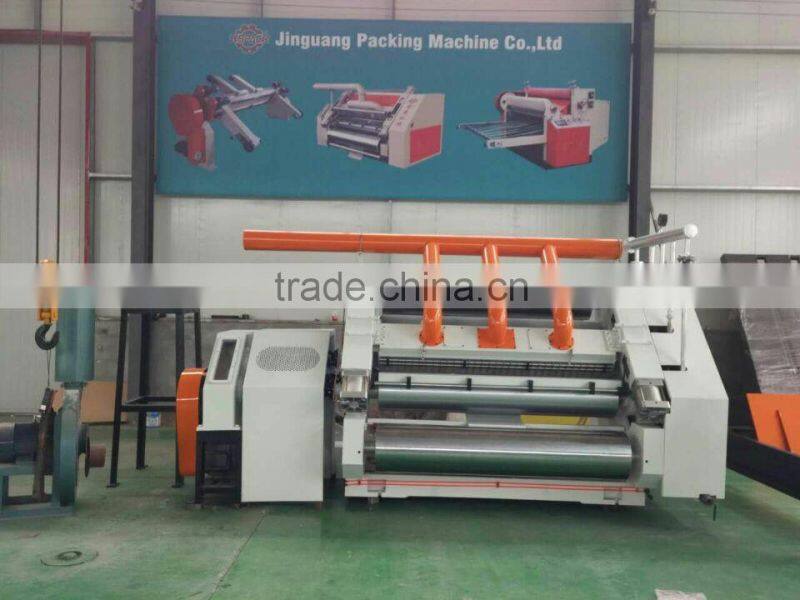

SF-280S adsorb style single facer

characteristics:

1. Adopt the cover style adsor structure ,match with high pressure winder , winder match with quiter ,air and electrical control centrated in the operation work table, distance with main machine1.5 m .main machine operation side all have the cover.

2. Machine seat with wallboard all case iron , the thickness of wall board 130mm ,adopt the alone gearbox ,and gimbal transmission

3.Corrugated roller adopt 52 crmo ,alloy steel ,after laser hardening

Surface grinding , corugated roller diameter 280mm ,surface hardness HRC60 ,main part bear of the corrugated roller ,and pressure roller with stand high temperature

4.Pressure roller diameter324mm ,surfacer grinding and chormeplated ,cylinder control move up and down ,material medium carbon steel 45#,hardening and tempering (with cushioning device)

5. Pneumatic control supply or reback the glue ,coating glue roller diameter 215mm ,surface after grinding ,carved 25line steel pit anilox , then chorme plated , even glue roller after grinding then chorm plated .

6. Corrugated roller ,pressure roller material suppled by zhongyuan tegang, corrugated roller single side have 0.15mm middle height, pressure roller single side 0.075mm middle height.  Add the limit device,

Press clycinder use diameter 160mm

Preheater diameter 320mm ,use the steamless steel ,connect by steel soft tube

techinical parameter :

single facer corrugating machine,corrugation machine china,2 ply corrugated paperboard making machine

1,work width:1600mm

2,operate direction :left or right ( according the cletns workshop design)

3,design speed :80m/min

4,temperature scale:160—200℃

5,air compressor:0.4—0.9Mpa

6,stear pressure:0.8—1.3Mpa

7,corruated style (Uvstye or UVVstyle):

roller diameter parameter:

1,corruated roller diameter : 280mm

2,pressure roller diameter: 324mm

3,glue coating roller diameter: 215mm

4,preheater diamter: 320mm
