Customize Front Panel Overlay Membrane Flat PC Keyboard With Transparent Window Quality Choice

FOB Price

USD $0.5 - $3 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	Geeton
Model Number	GMS-111	Application	Other, Home Appliance, Industrial Equipments
Keypad Button Material	Other, Poly

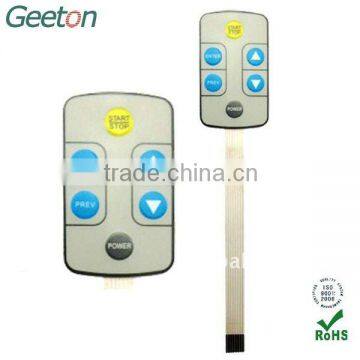

Customize Front Panel Overlay Membrane Flat PC Keyboard With Transparent Window

Flat PC Keyboard Performance

Electronic Characteristics
Circuit rating	35V(DC),100mA,1 W
Contact resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation resistance	>100MΩ 250V(DC)
Contact bounce	≤5ms
Dielectric withstand	250VRms(50 - 60Hz/1 min)
Life expectancy	flat type≥5 million times,tactile type:≥1 million times
Mechanical Properties
Operating pressure	flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)
Switch stroke	flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm
Environmental parameters
Operating Temperature	-20°C - +80°C
Storage temperature	-40°C - +85°C
Humidity	40°C,90%-95%,240 hours

Payment&Packaging Terms:

Flat PC Keyboard Type

Other Type Of The Flat PC Keyboard

The Application of The Flat PC Keyboard

Workshops

Packaging

Customers Visit

Certifications

Any colours, any logos are acceptable, free samples service, leave an inquiry to know more detail about the Price, Shipping and Discount.
