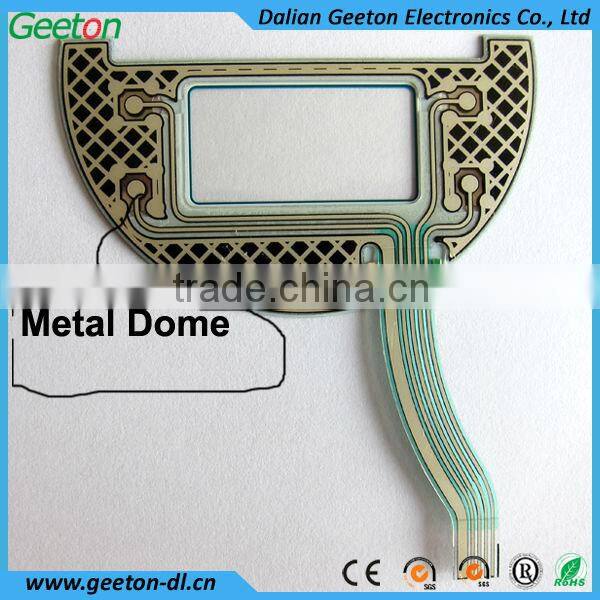

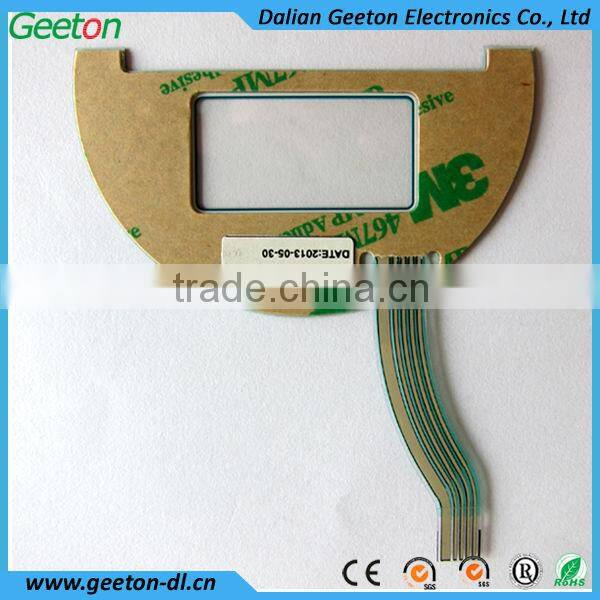

Metal Dome Membrane Switches Keypad Manufacturer
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | Geeton | |
| Model Number | GMS-324 | Application | Other, Test Machine Control Panel | |
| Keypad Button Material | Other, PET |
Product Description
Specifications
Membrane Switches1. Manufacturer
2. OEM&ODM
3. 10 years experence
4. ISO9001,ISO14001,TS16949
NO1. Metal Dome Membrane Switches Keypad Manufacturer
NO.2 Membrane Switches Performance
Electronic Characteristics | |
Circuit rating | 35V(DC),100mA,1 W |
Contact resistance | 10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation resistance | >100MΩ 250V(DC) |
Contact bounce | ≤5ms |
Dielectric withstand | 250VRms(50 - 60Hz/1 min) |
Life expectancy | flat type≥500 million times,tactile type:≥1001 million times |
Mechanical Properties | |
Operating pressure | flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz) |
Switch stroke | flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm |
Environmental Parameters | |
Operating Temperature | -20°C - +80°C |
Storage temperature | -40°C - +85°C |
Humidity | 40°C,90%-95%,240 hours |
NO.3 Membrane Switches Type
NO.4 Membrane Switches Application
NO.5 Flow Chart
NO6. Company Panorama & Customers Visiting
NO7. Why Choose us!
Brief Company Introduction
1. Founded in 2003, have 6000 m2 workshop area and 200 employees.
2. Main products: membrane switch, graphic overlay, label, acrylic panel, sticker,
FPC and 2D&3D automotive dials.
3. Application Fields: household electrical appliances, beauty medical equipment,
sports equipment, telecommunication, office automation, test instrument,
children’s toys, industrial meters and automotive instrument.
4. Certification: ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can
meet RoHS standard.
5. Cooperative Clients
