Dalian Geeton Electronics Co., Ltd.: Dalian, Liaoning, China; Main products: Membrane Switches, Nameplates, Automobile Instruments

Home > Products > Metal Dome Membrane Switch > Transparent LCD Window Membrane Keypad With Snap Metal Dome

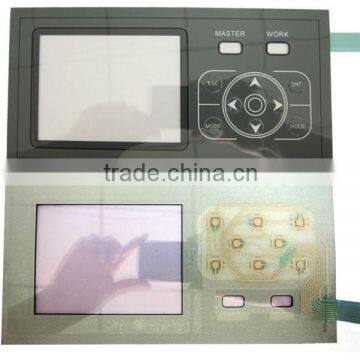

Transparent LCD Window Membrane Keypad With Snap Metal Dome

FOB Price

USD $0.1 - $10 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	Geeton
Model Number	GMS-321	Application	Other, Industrial Control Keypad
Keypad Button Material	Other, PET

LCD Membrane Keypad
1. Manufacturer
2. OEM&ODM]
3. ISO9001, ISO14001, TS16949
4. Best Quality, Resonable Price

LCD Membrane Keypad

Geeton Electronic were founded in 2003, a professional manufacturer with great reputation, specializing in

membrane switch, membrane keypad, label, nameplate, overlay and auto dials.Our products are widely used

in various fields, such as home appliances,medical Instrument, Childrentoys,office automation, telecommunication,

auto dials and Industrial meters. We are providing high quality products and superior service for many

world- famous companies, such as Panasonic, TOSHIBA, OMRON, SANYO, YAMAHA ,Aerospace, Continental and

other world-famous companies.

Products Structure

Membrane Switch Performance

Electronic characteristics
Circuit rating	35V(DC),100mA,1 W
Contact resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation resistance	>100MΩ 250V(DC)
Contact bounce	≤5ms
Dielectric withstand	250VRms(50 - 60Hz/1 min)
Life expectancy	flat type≥5 million times, tactile type:≥1 million times
Mechanical Properties
Operating pressure	flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)
Switch stroke	flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm
Environmental parameters
Operating Temperature	-20°C - +80°C
Storage temperature	-40°C - +85°C
Humidity	40°C,90%-95%,240 hours

Certification

Workshop Picures

Our Customer

If you have any queries about our products, pls feel free to contact us.

Your small order will be welcomed in Geeton.
