Home > Products > Full auto PET bottle blowing machine(Normal) > water bottle blowing machine

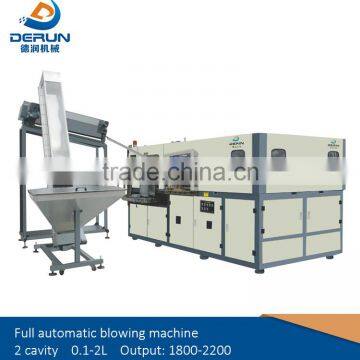

water bottle blowing machine
- NINGBO (Also can according your requirements)
- T/T Credit Card
You May Like
Product Details
Condition | New | Application | Bottle | |
Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
Automatic | Yes | Place of Origin | Zhejiang, China | |
Brand Name | DR | Model Number | DR-S2 | |
Voltage | 220/380 | Power(W) | 16KW | |
Dimension(L*W*H) | 2.8*1.45*2.15 m | Weight | 2500kgs | |
Certification | CE | Warranty | 1 year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Technical parameter
Item | DR-S2 | |
Bottle type specification | Cavity | 2 |
Theory output | 1800-2200 | |
Max.volume | 2L | |
Bottle mouth maximum overall diameter | 80mm | |
Bottle biggest diameter | 100mm | |
Bottle maximum height | 330mm | |
Power specifications | Light tube quantity | 32pcs |
Light tube power | 0.75KW | |
Maximum heating power | 24KW | |
All electric machine installation | 27KW | |
Actual consumption | 8.1KW | |
Air pressure specification | Work pressure | 7-9kg/cm2 |
Low-pressure gas consumption | 1000L/min | |
Blow bottle pressure | 25-35kg/cm2 | |
Higher -pressure gas consumption | 1500Ltr/min | |
Forzen water specification | Work pressure | 5-6 kg/cm2 |
Temperature range | 10℃ | |
Consumption | 5000kcal/hr | |
Forzen water flow | 30L/min | |
Machine specification | Size of the machine | 2.25x1.6x1.7 |
Weight of the machine | 2.5ton |
DERUN PLASTICS MACHINERY CO.,Ltd OF TAIZHOU,is one of the earliestly-established enterprise specializing in production of plastic packaging machinery and plastic mould in china,
which is special in produce,sell and design two-step full-automatic bollowing machine.In recent years,the enterprise has been tracing conscientiously on the latest international development related to the plastic packaging technology,and adopting the globally utilized CAD/CAN system to develop a series of equipments,such as the multi-functional and comprehensively,such as the multi-functional and comprehensively automated DR type of bottle-blowing machine,as well as infra-red rotational circulating automated heater and DR type of full-automatic hydraulip preaaure hollow machine and also those moulds complementary to the production of the afore-mentioned bottle-blowing machine,and multi-shaping cavity plank.All these serial equipments are featured by their reliable quality,easy to operate,easy to operate,easy to operate,extensive application range,and low cost,which are the ideal mechanical packaging equipment for idustries to manufacture beverages,confectioneries,pharmaceuticals,chemicals and oils ,extensively adopted by the relevant enterprise.
DR type,which could be produce hollow products from 5mi to 200L,such as plastic bottle,barrel,tool box,special-shaped hollow products,oil box,convey,we could also do special design according to our custom's request,for example single-die,double-die,tri-die,tetra-die,six-die and single-layer,double-die,tri-layer,tetra-layer.This machine is used for many plastics material,including PE.PP.PC.PA.PS.ABS.EVA.PVDC.PAN.PPE.TPE etc.
For many years,the afore-menuoned equipments have been enjoy a brisk market domestically and also exported in considerable quantity to humdred of countries and regions,such as Russia,SE Asian countries,Middle East and African countries.The enterprise has set up database for it's customers and clients,ensuring a comprehensive feedback system,as well as highly efficient post-sale service system,for provision of technical support and the lastest information of equipment development.
PACKING:WOODEN CASE OR PLASTIC BAGS.
SHIPPING: BY SEA
GUARANTEE: 1 YEAR
If the Wearing part is broken, we will change it in free
In one year, Free maintenance
1. Q:Are u a factory ?
A: Yes
2. Q: Could you mind to introduce your company?
A: Yes, We are a factory making and salesing together.So u don't need worry our price is higher, We will use the best quality and service to meet your requirements.
3. Q: Where is your company located?
A: We are located in Huangyan Zhejiang province, Chine. There is Taizhou Airport and Train station, it's comvenient in transportation for customers coming and going.
4. Q: What's your product area?
A: We main making the PET bottle blowing machine,Bottle molds,Extrusion blow molding machine for HDPE,PP,PE,PC bottles,barrel,plastic table legs and so on .
5. Any more questions or details you need to know about us, please send email to us or call us by+86-13105630033 or send us email, waiting for your news, my dear friends!
