Pvc Conduit Extrusion Machine
- Shanghai port
- T/T Credit Card
You May Like
Product Details
| Type | Pipe Production Line | Pipe Material | PVC | |
| Application | Drain Pipe | Place of Origin | Jiangsu, China | |
| Brand Name | Baixiong Klimens | Model Number | SJZ20--630 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PVC pipe making machine :
1.Characteristic:
- Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity, max 1000KG/H
- Diameter: from 16mm to 710mm.
- Auxiliary machine closely meet customer specifications. Nice out-look, automatic control and stable running performance
2. Technical datas:
Pipe range | 20-110mm | 75-200mm | 110-315mm | 315-710mm |
Extruder | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
Extruder power | 18.5kw | 37kw | 55kw | 110Kw |
Extrusion capacity | 120kg/h | 250kg/h | 360kg/h | 800kg/h |
Max. Production speed | 10m/min | 10m/min | 3 m/min | 1.2m/min |

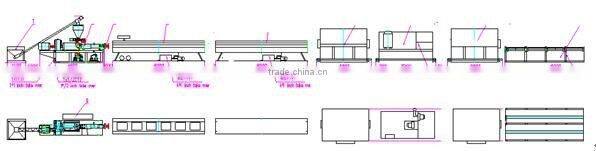

3. System configuration
Item | Machine |
| Quantity |
1 | auto loader |
| 1 set |
2 | Twin-Screw Extruder SJSZ80/156 |
| 1 set |
3 | Die & head and calibrators for pipes |
| Full set |
4 | Vacuum calibration tank |
| 1 set |
5 | Extended cooling tank |
| 1 set |
6 | Wheel-ink printer |
| 1 set |
7 | Four-claws hauling Machine |
| 1 set |
8 | Pipe planet-cutting machine |
| 1 set |
9 | Automatic belling machine |
| 1 set |
10 | Belling molds |
| Full set |
4. Detailed pictures
