HDPE PE winding pipe extrusion production machine line Quality Choice
- Shanghai port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Pipe Production Line | |
| Pipe Material | Other, HDPE | Application | Drain Pipe | |
| Production Capacity | Max. 800kg/h | Place of Origin | Jiangsu, China | |
| Brand Name | Baixiong Klimens | Model Number | HDPE winding pipe production line | |
| Voltage | 380V or as required | Power(W) | ~570 KW | |
| Dimension(L*W*H) | 58*5*4.5 | Weight | no record | |
| Certification | CE ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HDPE winding pipe machine:
1. Product Specification(mm)
Φ200 to Φ3000
Each specification divides two grades, ring stiffness: S1 is 4KN/M2 , S2 is 8KN/M2
2. Extruder:
Main technical standards | SJ90 single screw extruder | SJ65 single screw extruder |
Screw diameter(mm) | Φ90 | Φ65 |
Ratio of length and diameter | 33:1 | 30:1 |
The screw speed(r/min) | 95 | 95 |
Main electrical engineering power(KW) | 90 | 45 |
Heating power(KW) | 40 | 22 |
Max. output (Kg/h) | 350 | 150 |
3. Application & Features:
(1) The pipes we produced base on high density polythene (PE) as main material.
(2) The rectangle pipes are extruded by the first extruder and then enter into the twine form machine , at the same time , the second extruder spray the rubber strips and then squeeze to reunite it.
(3)This kind of pipes have many extremely excellent characteristics, such as , corrosion resistant light , easy to fix , long life time (50years),etc.
lt is widely used for sewer in super high-way, municipal construction , flats , athetic field, square , mine agriculture , and bridges etc.

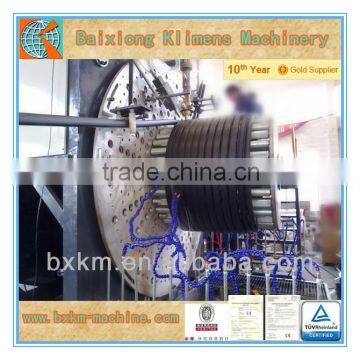

HDPE winding pipe production line
spiral pipe productiion line
4. Detailed flow chart & detailed pictures
Item | Machine | Quantity |
1 | Mixer | 1 set |
2 | Vacuum loader | 1 set |
3 | Hopper dryer | 1 set |
4 | Single-Screw Extruder With PLC control cabinet | 1 set |
5 | Die & Head & calibrators for profiles as required pressure class | complete set |
6 | Vacuum calibration tank | 1 set |
7 | Extended cooling tank | 1 set |
8 | Haul off unit | 1 set |
9 | Vacuum loader | 1 set |
10 | Hopper dryer | 1 set |
11 | Single screw extruder | 1 set |
12 | Winding forming machine | 1 set |
12.1 | Winding forming moulds | 1 set |
13 | Pipe Cutting Machine | 1 set |
14 | Pipe discharger | 1 set |
15 | PLC control cabinet for glue extruder and winding machine and cutting machine | 1 set |
detailed pictures :
day and night
CE :
Our Global Footprint :
Looking forward to our meet oneday, expectedly or unexpectedly .
