PE plastic pipe making machine
- Shanghai
- T/T
You May Like
Product Details
| Type | Pipe Production Line | Pipe Material | PE | |
| Application | Drain Pipe | Place of Origin | Jiangsu, China | |
| Brand Name | BXKM | Model Number | PL Series 65-150 |
Product Description
Specifications
PE pipe plastic machinePLC control system and large liquid crystal screen
extruder for mark line
ISO9001 & CE Certificate
PE pipe plastic machine :
1. Configuration:
(1) 1 set of Spring feeding machine
(2) 1 set of Hopper dryer
(3) 1 set of Single-Screw Extruder type SJ65/33
(4) Die & head for PPR pipes size 16--63mm and die cores for PE pipes
(5) 1 set of Mark line extruder
(6) 1 set of Vacuum calibrationtank +
(7) 2 sets of Extended cooling tank
(8) 1 set of Pedrail-Hauling Machine
(9) 1 set of Cutting machine
(10)1set of Pipe stacker
(11) 1 set of Pipe winder for PE pipes 16-63mm
(12) PLC Control panel.
2. Detailed Product Description:
(1).single screw extruder, very suitable to process PE resin with high capacity, max capacity 1000kg/h.
(2).The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
(3).Diameter range is 16mm-800mm, which can be changed into inch standard to meet clients special requirement.
3. Technical data:
Pipe range | 16-63mm | 20-110mm | 75-160mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800mm |
Extruder | ¢45mm | ¢60mm | ¢75mm | ¢75mm | ¢90mm | ¢90mm | ¢120mm | ¢150mm |
Extruder power | AC30kw | DC75kw | DC110kw | DC110kw | DC160kw | DC160kw | DC280kw | DC335kw |
Extrusion capacity | 60-100kg | 100-150kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
Max. Production speed | 10m/min | 6m/min | 6 m/min | 6 m/min | 3 m/min | 1.2m/min | 0.9m/min | 0.7m/min |

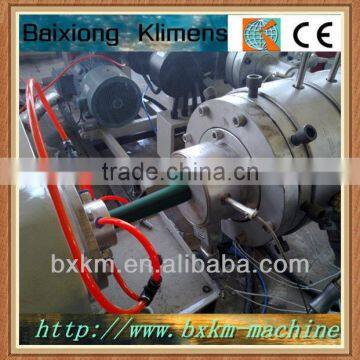

detailed pictures :
let's get a close look
calibrators :
CE :
