1kV Flexible Control Cable PVC Insulated Control Cable Low Voltage Electric Cable

Chinese Type

Description

Conductor

range (mm²)

Core qty

Application Site

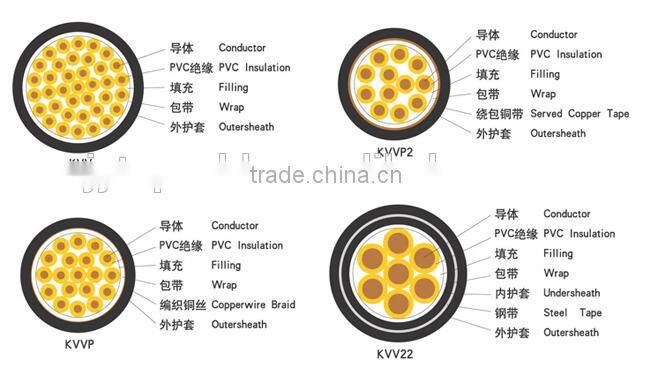

KVV

Copper Conductor, PVC Insulated and Sheathed Control Cable

0.75,1.0,1.5,2.5

2~16

Permanent installation indoors in cable ditches or pipes

4,6

2~14

10

2~10

KVVP

Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded

Control Cable

0.75,1.0,1.5,2.5

2~61

Permanent installation indoors, in cable ditches or pipes where shielding is required

4,6

2~14

10

2~10

KVVP2

Copper Conductor, PVC Insulated and Sheathed, Copper Tape Screened Control Cable

0.75,1.0,1.5,2.5

4~10

Permanent installation indoors, in cable ditches or pipes where shielding is required

4,6

7~61

10

4~10

KVV₂₂

Copper Conductor, PVC Insulated and Sheathed, Steel Tape Armored

Control Cable

0.75,1.0,1.5,2.5

7~61

Permanent installation indoors, in cable ditches, pipes or underground Be able to bear stronger outer mechanical force

4,6

4~14

10

4~14

KVVR

Copper Conductor, PVC Insulated and Sheathed Flexible Control Cable

0.5~2.5

4~61

Installation indoors where flexibility and movability are required

KVVRP

Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded Flexible Control Cable

0.5,0.75,1.0

4~61

Installation indoors where flexibility

Shielding and movability are required

1.5,2.5

4~48

KYJV

Copper Conductor, XLPE Insulated and PVC Sheathed Control Cable

0.75, 1.0, 1.5, 2.5

2~16

Permanent installation indoors, in cable ditches or pipes

4, 6

2~14

10

2~10

KYJVP

Copper Conductor, XLPE Insulated ,Braiding Shielded, PVC Sheathed Control Cable

0.75, 1.0, 1.5, 2.5

2~61

Permanent installation indoors, in cable ditches or pipes where shielding is required

4, 6

4~14

10

4~10

KYJV₂₂

Copper Conductor, XLPE Insulated, Steel Tape Armored, PVC Sheathed Control Cable

0.75, 1.0, 1.5, 2.5

7~61

Permanent installation indoors, in cable ditches or pipes underground, Be able to bear stronger outer mechanical force

4, 6

4~14

10

4~10

KVJVP₂

Copper Conductor, XLPE Insulated, Copper Tape Screened, PVC Sheathed Control Cable

0.75, 1.0, 1.5, 2.5

7~61

Permanent installation indoors, in cable ditches or pipes where shielding is required

4, 6

4~14

10

4~10

KYJVR

Copper Conductor, XLPE Insulated, PVC Sheathed Flexible Control Cable

0.5-2.5

4~61

Installation indoors where flexibility and movability

KYJVRP

Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable

0.5, 0.75, 1.0

4~61

Installation indoors where flexibility shielding and movability are required
