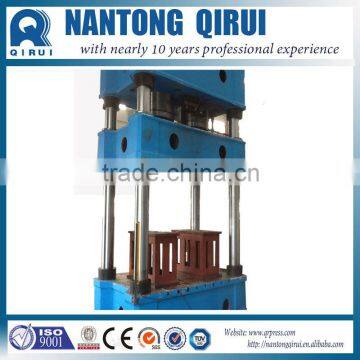

Adjustment manual semiautomatic cold (hot) metal extrusion molding presses
- any port
- T/T L/C D/P D/A Credit Card
You May Like
-
Hot sale deep drawing power press machine for all kinds of materials
-
High quality four column hydraulic high speed press machine
-
CE ISO Certification Four-column hydraulic heat press machine for plastic products
-
High quality universal 4 column hydraulic pressed machine for all kinds of products
-
Convenient repaired screen safety 4-column hydraulic press for plastic material
-
Safe reliable Hydraulic damping system 37kw four-column guide molding hydraulic press
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Jiangsu, China | |
| Brand Name | Qirui | Model Number | HP32-500 | |
| Power(W) | 37kw | Dimension(L*W*H) | 2020mmx1440mmx4995mm | |
| Certification | ISO9001 TUV CE | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The series hydraulic machine is an universal press equipment.It can be used in the plastic material. Such as powder molding, Plastic molding,Cold (hot) metal extrusion molding and stamping, Bending, Drawing and flanging of the sheet.
The machine has the independent electrical and hydraulic system, it has the adjustment,manual and semiautomatic operating methods and constant process and pressure.
It is Safe and reliable to work, and it is convenient to be repaired.
The series hydraulic machine equipped with accessories for customers to choose :
• Mobility workbench
• Hydraulic damping system
• Screen safety protection device
• Displacement sensing device
• Knock-out device
• Quick die clamping mechanism
• Rail lubricate device
| Adjustment manual semiautomatic cold (hot) metal extrusion molding presses | |||||
| Nominal Force | Return Pressure | Knock-out Pressure | Stroke of Slide | Stroke in Knock-out Cylider | Daylight |
| 5000kn | 1000kn | 1000kn | 900mm | 300mm | 1500mm |
| Speed of Slide | Overall Dimensions of Machine | ||||
| Emply Descending | Pressing | Return | Left to Right | Front to Back | Height Above Floor |
| 120mm/s | 5-15 mm/s | 60mm | 2020mm | 1440mm | 4995mm |
| Speed of Knock-out Cylinder | Dimensions of Table | Distance Between Columns | |||
| Knock-out | Return | Left to Right | Front to Back | Left to Right | Front to Back |
| 80mm | 160mm | 1400mm | 1400mm | 1700 mm | 1120mm |
| Hight of Table Above Floor | Motor Power | ||||
| 500 mm |
37kw | ||||
recommend products
| Packing | Carton, Pallet or In nude | |
| Detail accordance with the actual dimension. | ||
| Shipping | Time of Delivery | Within 20-90days after make deposit. |
| Shipping Terms | Seaway or Airway. | |
