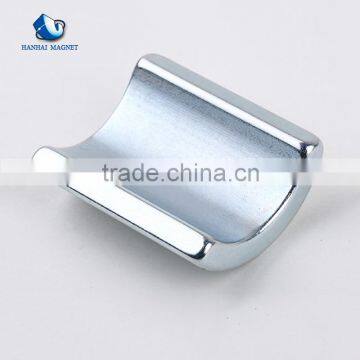

High Quality Arc Neodymium Motor Magnet

FOB Price

USD $0.1 - $1.2 / Piece

200 Pieces(Min.Order)

Port Shenzhen
Payment TermsD/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Hanhai
Model Number	N35~N50,33M~45M,30H~45H,32SH~42SH,30UH~35UH,28EH~35EH, OEM	Type	Permanent
Composite	Neodymium Magnet	Shape	Other, Arc
Application	Moto Magnet

Product Description

High Quality Arc Neodymium Motor Magnet

Product Description

We own 3 factories and 11 branches all over china.

Here is our website, http://hanhaimagnet.en.china.cn.

We accept small customize production available.

High accuracy
Our magnet is strong magnetic force
High intrinsic ,coercive force
Material:Sintered Neodymium-Iron-Boron
Shape:Ring,block,disc,segment,strip and so on
Size:As your requirement,large to about 200mm
Magnetization direction: through diameter or thickness, width,length
Grade:N35-N52,35M-50M,35H-48H,33SH-45SH,30UH-40UH and 30EH-38EH
Surface treatment: Coating is an in alienable component of NdFeb magnets. It prevents these magnets from oxidation.Widely used coatings are Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation

Magnetization:

Thickness Magnetized
Axially Magnetized
Diametrically Magnetized
Multi-poles magnetized
Radial Magnetized
Customized specific requirements magnetized

Grade	Residual Induction (Br)		Coercive Force (Hcb)		Intrinsic Coercive Force (Hcj)		Max Energy Product (BH)max		Max Working Temp.
Grade	T	kGs	kA/m	kOe	kA/m	kOe	Kj/m³	MGOe	(°C)
N35	1.17-1.22	11.7-12.2	≥ 868	≥ 10.9	≥ 955	≥ 12	263-287	33-36	80
N38	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 955	≥ 12	287-310	36-39	80
N40	1.25-1.28	12.5-12.8	≥ 907	≥ 11.4	≥ 955	≥ 12	302-326	38-41	80
N42	1.28-1.32	12.8-13.2	≥ 915	≥ 11.5	≥ 955	≥ 12	318-342	40-43	80
N45	1.32-1.38	13.2-13.8	≥ 923	≥ 11.6	≥ 955	≥ 12	342-366	43-46	80
N48	1.38-1.42	13.8-14.2	≥ 923	≥ 11.6	≥ 955	≥ 12	366-390	46-49	80
N50	1.40-1.45	14.0-14.5	≥ 796	≥ 10	≥ 876	≥ 11	374-406	47-51	60
N52	1.43-1.48	14.3-14.8	≥ 796	≥ 10	≥ 876	≥ 11	390-422	49-53	60
N35M	1.17-1.22	11.7-12.2	≥ 868	≥ 10.9	≥ 1114	≥ 14	263-287	33-36	100
N38M	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 1114	≥ 14	287-310	36-39	100
N40M	1.25-1.28	12.5-12.8	≥ 923	≥ 11.6	≥ 1114	≥ 14	302-326	38-41	100
N42M	1.28-1.32	12.8-13.2	≥ 955	≥ 12	≥ 1114	≥ 14	318-342	40-43	100
N45M	1.32-1.38	13.2-13.8	≥ 955	≥ 12.5	≥ 1114	≥ 14	342-366	43-46	100
N48M	1.37-1.43	13.7-14.3	≥ 1027	≥ 12.9	≥ 1114	≥ 14	366-390	46-49	100
N50M	1.40-1.45	14.0-14.5	≥ 1033	≥ 13	≥ 1114	≥ 14	382-406	48-51	100
N35H	1.17-1.22	11.7-12.2	≥ 868	≥ 10.9	≥ 1353	≥ 17	263-287	33-36	120
N38H	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 1353	≥ 17	287-310	36-39	120
N40H	1.25-1.28	12.5-12.8	≥ 923	≥ 11.6	≥ 1353	≥ 17	302-326	38-41	120
N42H	1.28-1.32	12.8-13.2	≥ 955	≥ 12	≥ 1353	≥ 17	318-342	40-43	120
N45H	1.32-1.36	13.2-13.6	≥ 963	≥ 12.1	≥ 1353	≥ 17	326-358	43-46	120
N48H	1.37-1.43	13.7-14.3	≥ 995	12.5	≥ 1353	≥ 17	366-390	46-49	120
N35SH	1.17-1.22	11.7-12.2	≥ 876	≥ 11	≥ 1592	≥ 20	263-287	33-36	150
N38SH	1.22-1.25	12.2-12.5	≥ 907	≥ 11.4	≥ 1592	≥ 20	287-310	36-39	150
N40SH	1.25-1.28	12.5-12.8	≥ 939	≥ 11.8	≥ 1592	≥ 20	302-326	38-41	150
N42SH	1.28-1.32	12.8-13.2	≥ 987	≥ 12.4	≥ 1592	≥ 20	318-342	40-43	150
N45SH	1.32-1.38	13.2-13.8	≥ 1003	≥ 12.6	≥ 1592	≥ 20	342-366	43-46	150
N28UH	1.04-108	10.4-10.8	≥ 764	≥ 9.6	≥ 1990	≥ 25	207-231	26-29	180
N30UH	1.08-1.13	10.8-11.3	≥ 812	≥ 10.2	≥ 1990	≥ 25	223-247	28-31	180
N33UH	1.13-1.17	11.3-11.7	≥ 852	≥ 10.7	≥ 1990	≥ 25	247-271	31-34	180
N35UH	1.17-1.22	11.7-12.2	≥ 860	≥ 10.8	≥ 1990	≥ 25	263-287	33-36	180
N38UH	1.22-1.25	12.2-12.5	≥ 876	≥ 11	≥ 1990	≥ 25	287-310	36-39	180
N40UH	1.25-1.28	12.5-12.8	≥ 899	≥ 11.3	≥ 1990	≥ 25	302-326	38-41	180
N42UH	1.28-1.32	12.8-13.2	≥ 899	≥ 11.3	≥ 1990	≥ 25	318-342	40-43	180
N28EH	1.04-1.08	10.4-10.8	≥ 780	≥ 9.8	≥ 2388	≥ 30	207-231	26-29	200
N30EH	1.08-1.13	10.8-11.3	≥ 812	≥ 10.2	≥ 2388	≥ 30	223-247	28-31	200
N33EH	1.13-1.17	11.3-11.7	≥ 836	≥ 10.5	≥ 2388	≥ 30	247-271	31-34	200
N35EH	1.17-1.22	11.7-12.2	≥ 876	≥ 11	≥ 2388	≥ 30	263-287	33-36	200
N38EH	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 2388	≥ 30	287-310	36-39	200
N40EH	1.25-1.28	12.5-12.8	≥ 899	≥ 11.3	≥ 2388	≥ 30	302-326	38-41	200
N28AH	1.04-1.08	10.4-10.8	≥ 787	≥ 9.9	≥ 2624	≥ 33	207-231	26-29	230
N30AH	1.08-1.13	10.8-11.3	≥ 819	10.3	≥ 2624	≥ 33	223-247	28-31	230
N33AH	1.13-1.17	11.3-11.7	≥ 843	≥ 10.6	≥ 2624	≥ 33	247-271	31-34	230
N35AH	1.17-1.22	11.7-12.2	≥ 876	≥ 11	≥ 2624	≥ 33	263-287	33-36	230
N38AH	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 2624	≥ 33	287-310	36-39	230

Manufacturing process:

Magnet Application:

Motors,Wind Power,Sensors,Computers and Peripherals,Magnetic Assemblies,Automotive,Motion Control,Aerospace,Research and Development,Communications,Medical Device and Diagnostics,Home appliance,Other magnetic applications or you can find new application according to your design.

Our Advantages:

Stable supply of rare earth raw materials because we built our own plant 30000 sq meters in lu’an city, Anhui Province ,also we have our sales office in Shenzhen. We have been manufacturing rare earth raw materials and magnet over 15 years.
The quality will be guaranteed due to our 15 year's experience in magnet field, our strong technical capacity, most advanced processing and many testing equipments/producing machine.
Production Capacity: Neodymium magnet: 2200Tons /year.

Export Advantage:

All inquiries, questions and emails will be replied within 24 hours.
Samples and small quantity are available.
Stock material for stable production.
Most favorable Price is available.
Excellent shipping forwarder to help to delivery magnet.
Flexible Payment items include T/T in advance and western union and L/C at sight or others.
Quick delivery time & precise size tolerance.
Good quality and assured service.

In order to quote you the best price quickly. please provide the following information:

Magnet grade, size,coating etc.
Order quantity.
Attached the drawing if customized.
Any special packing or other requirements.

Packaging&Shipping

Packaging Details:	Anti-magnetic package for air transportation; Hard Paper Carton and Pallet; Standard Sea package; or as per clients'special requirements.
Delivery Detail:	About 5-15 days after payment
