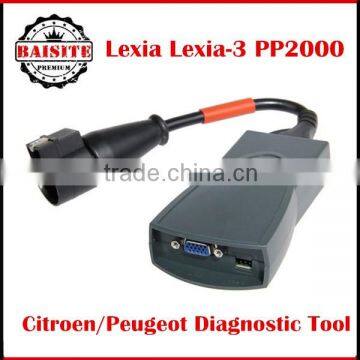

Factory price!!!Peugeot Lexia3 Lexia 3 lexia-3 V48 for Citroen for Peugeot Diagnostic Tool Lexia-3 PP2000 V25 With New Diagbox

Lexia-3 lexia3 V48 for Citroen/Peugeot Diagnostic PP2000 V25 XS Evolution with Diagbox V7.57 Software Support Peugeot 307

Top 7 Reasons to Get Lexia3 XS Evolution with Original Chip:

1. Update: By CD
2. Support Multi-Language: English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech
3. It works for both Citroen and Peugeot. Now support Peugeot 307!
4. Version: Lexia3 V48, PP2000 V25, Diagbox V7.57
5. Lexia-3 PCB edge is golden with original full chips.Double PCB has 7pcs optocouplers, which are 100% original and new.
6. lexia-3 relays are 12pcs, which are 4.5V, it is more stable.
7. PP2000 have 2pcs Optocouplers

Hardware and Software Requirements

Software requires at least Intel Celeron/Pentium III 400 MHz, 128 MB RAM, 50MB free HDD space and USB 1.1 port (USB 2.0 recommended) and Microsoft Windows 98 SR2/2000/XP with the latest service pack installed. If customer requires, we can prepare ready to work PC.
Please setup the software according to the requirements to hardware and software. Otherwise it will fail to setup and bring you much trouble.
Better to install the software on the computer with Windows XP system.
Better to close the Anti-virus software on your computer. Because the Anti-virus may recognize it as a type of virus, it will clear off all the software on the CD.

LEXIA-3/PP2000 Description:

1.It is compatible with Citroen cars including: C1,C2,C3,C4,C6,C8,C-CROSSER,NEMO,BERLINGO,JUMPY,JUMPER,AX,SAXO,BX and so on. But please pay attention, according to our customer's experience, this item can not works good at C5 new models.
2.It is compatible with most Peugeot cars from 1995..If you have the two types of cars, please pay attention, please check with us first before purchase.
3.Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

LEXIA-3/PP2000 Function:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1.Read Identification
Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read Fault Codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").
Program supports report printing or copy to clipboard.

3. Clear Fault Codes
this function clears all stored fault codes and other diagnostic information.

4. Auto-Scan (Complete Car Scan/Test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values
Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator Test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

LEXIA-3/PP2000 Package List:

1pc x Main unit with extension OBD2 cable
1pc x Long 9pin to USB cable
1pc x Short 9pin to USB cable
1pc x OBD2 cable
1pc x Instruction for Installation and Activation DVD for PP2000

Lexia-3 Setup Instruction

PP2000 is the Software for Peugeot !
Click ‘InstPC’ to install

LEXIA3 is the Software for Citroen !
Click ‘Instlex3’ to install

Important Note: Please create a blank txt file named ‘version’ in C:   before installation of LEXIA3



Otherwise it will display a warning as follow:


Lexia3 PP2000 Install Software:
Before installation, windows system needs to be English, and you cannot choose the language you want unless the language selection windows appear.

Lexia3 PP2000 Activate Software:
Under the file “LEXIA3_KEYGEN”, there are the activation pictures for lexia3 and the file “PP2000_KEYGEN” contains the activation pictures for PP2000 (PPS).
It needs registered code for PP2000 (PPS), but no registered code for lexia3, as for the registered code.
