Product Details

Place of Origin	Zhejiang, China		Brand Name	Bonly
Model Number	T78B

Product Description

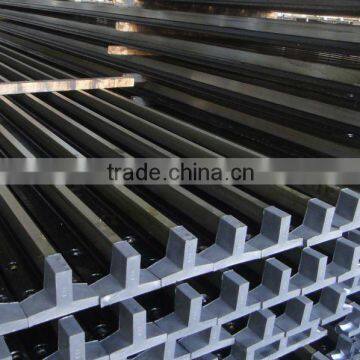

China Bonly T78B Machined Elevator Guide Rail

1. Elevator Guide Rail T78B 10mm

2. Basic dimensions: International Standard ISO7465.

3. Processing methods: machining

4. Packing:

Bonly general packing: all types of guide rails are packed in bundles, with protective sheathes protecting both ends and each bundle repacked in blue plastic sheeting. Customers' desires may be satisfied accordingly.

7. Material: all types of guide rails material is Q235

Chemical Composition		Mechanical Characteristic
C%	≤0.28	Breaking Point	370-520N/mm²
Mn%	≤1.40	Elongation	>24%
P%	≤0.045	Hardness	HB143
S%	≤0.045
Si%	≤0.35

8. our other types of guide rails basic dimensions: are as follow

T45A: 45*45*5mm Cold drawn

T50A: 50*50*5mm Cold drawn

T70-1B: 70mm*65mm*9mm
T75-3B: 75mm*62mm*10mm
T78B: 78mm*56mm*10mm

T82B: 82.5mm*68.25mm*9mm

T82-3B:

T89B: 89mm*62mm*16mm

T89-1B:
T90B: 90mm*75mm*16mm

T114B:114*89*16mm

T127-1B: 127*89*16mm

T127-2B: 127*89*16mm

T140-1B:140*108*19mm

TK3

TK5

TK5A

9. Remarks

All Bonly products are produced according to ISO7465 international standard. OEM services provided. Dimensions displayed here is only for information. For details, you are welcome to contact us.
