Mini Din 6P Male Connector Nickel Plated

Specifications

Mini Din 6P Male Connector Nickel Plated

Product informations

 Material

1.Shell:Brass

2.OD=10.0mm

3.Size of shell:12*10mm

4.Total Length: 15mm

5.Shell plated:Ni/Au

6.Pin:6(also can choose 3p to 13p)

   Plated:Ni/Au/Silver

   Contact:Brass

7.Assembled type, solder type

Environmental Spec.(have passed below tests)

1. Salt fog test

2. Air reflow soldering test

3. Mechanical Vibration test

4. Adhered Tin test

5. Temperature Cycle test

Usage:

1.Using for connecting component video and audio for cable TV operator

2.Using for Car Audio or Car cable

3.Using for GPS Navigation

4.Car headrest monitors

5.Computer,Mouse, Keyboard,Video,ect.

3-pin

• Apple LocalTalk Network
• VESA Stereo
• SGI StereoView (pinout diagram)
• Behringer Mixer Power Supplies
• Optoma EH1020 Projector
• TOPFIELD TF5400 PVR Combo Receiver

4-pin

       4 pin mini-DIN for S-Video

5-pin

• Low-voltage power supply input connector on various pieces of equipment
• SONY LANC camcorder control interface (Pinout diagram)
• 5-pin MIDI input and output connectors used by the Creative Technology Sound Blaster X-Fi Front I/O Panel and the Creative LivedriveII (pinout diagram)
• Altec Lansing ACS 45 (2.1)

6-pin

         The color-coded PS/2 connection ports (purple for keyboards and green for mice)

7-pin

         Example of the standard 7 pin mini-DIN connectors. These are from a Commodore 1531 datasette and its adapter.

8-pin

• Sony VISCA Camera Control
• Apple Macintosh Serial Port
• Epson
  • Epson PX-8 and Epson PX-4 RS-232 and Serial port
  • Scanner TPU and automatic document feeder

9-pin

      Alternate Video In Video Out (VIVO) port connector

10-pin

• Sega Saturn (shows pinouts)
• HANNspree monitors and televisions

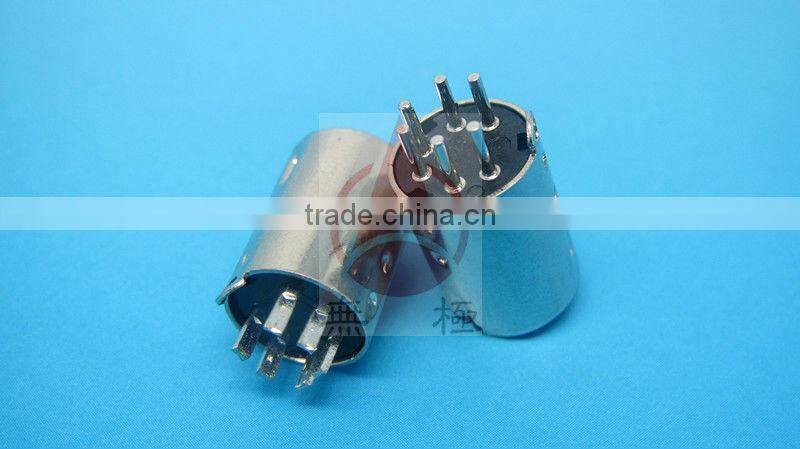

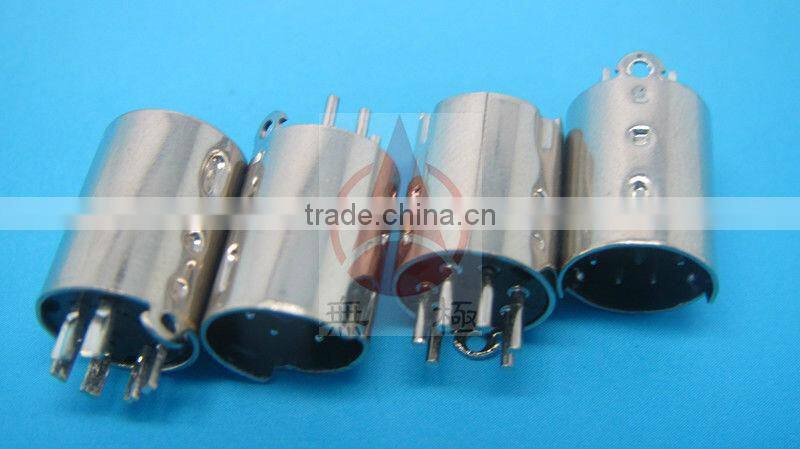

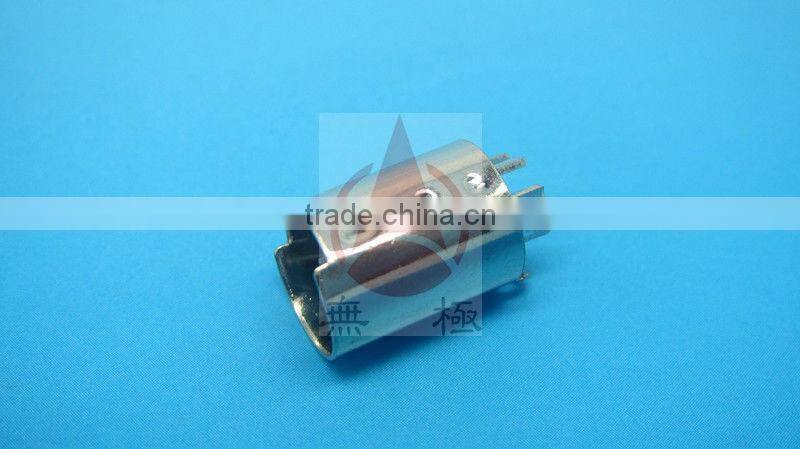

Product pictures:

Packing picture:

Manufacture pictures:

To choose us is your first choice:

Our company is specializing in designing and manufacturing all kinds of  DC plug and jack connectors, headphone charger plug connectors, earphone plug connctors, converter plug connectors, audio/video plug connectors etc.

1. Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers.

2. We provide the cables as well as connectors linked with the cable.

3. We use selected raw-material, our products are in high quality, competitive price, prompt delivery.

4. Samples can be provided for free for reasonable quantity, small order also welcomed, the large order you place, the more favorable you will get.

 We well being trusted worthy, warm welcomed your inquiry, we will provide you the best service.
