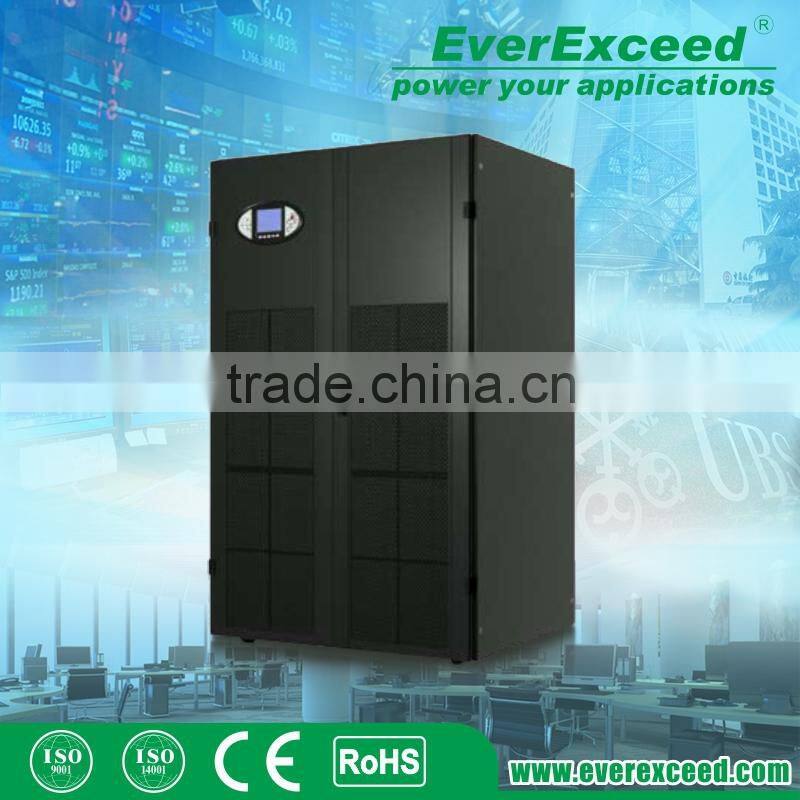

10-120KVA EverExceed Power Champion TL Series UPS for ISP/IDC/Computer Center/Bank/Server Center Use

PowerChampion TL three phase UPS offers advanced technology that increase performance and reliability: three high speed DSPs with completed digital control fully ensure high quality of power supply, high input power factor and low input current distortion. It also offers humanization design: full front access of serviceability, user friendly interface.

1. Green power technology, high input power factor, low current THD, high efficiency.
2. Online double conversion, offering load with best power quality, compatible with utility of 200/208/380/400/415VAC, 50/60Hz.
3. Wide input voltage window, compatible with different utilities.
4. Support all kinds of load, high overload capability.
5. Fully digital control with three DSP including IGBT rectifier, inverter, charger.
6. Intelligent battery management, extending battery lifetime.
7. Intelligent self-diagnose function, all kinds of fault protection , large capability of history record storage.
8. Full front maintenance ,Configured with top and bottom cable connection, saving space.
9. Modularized design of subsystem, convenient field maintenance.
10. Redundant design of power model fans, increasing the system reliability.
11. Large LCD display, friendly human machine interface.
12. All PCB with conformal coating.
13. Modular, high power density design, save valuable space for customer.
14. Critical components adopt the well-known international corporation, high margin design.
15. Achieve the advanced international level with original technology of IGBT and integrated parallel technique .

• ISP (Internet Service Provider)
• IDC (Internet Data Center)
• Computer Room
• Service Center
• Precision Instruments
• Intelligent Equipment

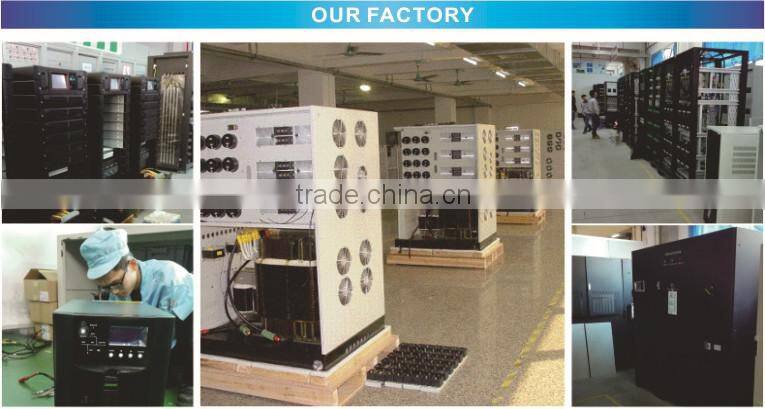

EverExceed Group was established in 1980s and has its headquarter in Shenzhen, China, and subsidiaries in Singapore, UK and operations in six continents. We are manufacturing and supplying worldwide reliable power solutions with continuous innovative technologies, cost-effectiveness and good service, including industrial batteries (lead acid batteries, NiCad batteries, Lithium-ion batteries), solar power systems, UPS systems and DC power systems.

EverExceed attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / VDE/ CE/ IEC/ UL/ RoHS/ DEKRA. Our advanced technology, professional technique, automatic equipment, experienced staff and strict operation system assure high level product quality. By now, reliable products with our brand “EverExceed” have been exported to more than 60 countries all over the world.

Warmly and sincerely welcome you to join us, and become a distributor and a partner in the future.

For more information, please visit our website:.

Q:How does the on-line UPS normal work principle?

A: The input converter and output inverter shall operate in an on-line manner to continuously regulate power to the critical load. The input and output converters shall be capable of full battery recharge while simultaneously providing regulated power to the load for all line and load conditions within the range of the UPS specifications.

Q:What’s the meaning of UPS’s battery mode?

A:Upon failure of the AC input source, the critical load shall continue being supplied by the output inverter, which shall derive its power from the battery system. There shall be no interruption in power to the critical load during both transfers to battery operation and retransfers from battery to normal operation.

Q :What’s the meaning of UPS’s bypass mode?

A:The static bypass shall be used to provide transfer of critical load from the Inverter output to the bypass source. This transfer, along with its retransfer, shall take place with no power interruption to the critical load. In the event of an emergency, this transfer shall be an automatic function.

Q: What’s the meaning of UPS’s THDi?

A: The input current THDI(Total Harmonic Distortion) shall be held to 5% or less at full system, while providing conditioned power to the critical load bus, and charging the batteries under steady-state operating conditions. This shall be true while supporting loads of both a linear or non-linear type. This shall be accomplished with no additional filters, magnetic devices, or other components.

Q:What’s the meaning of UPS’s overload capacity?

A:Steady-state overload conditions, of up to more than 100% of system capacity, shall be sustained by the inverter for several seconds in normal and battery operation. Should overloads persist past the outlined time limitation the critical load will be switched to the automatic static bypass output of the UPS.
