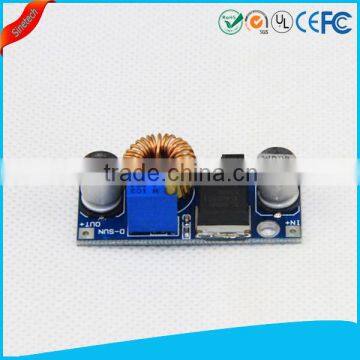

5000mA output dc to dc charger converter module

FOB Price

USD $1 - $3 / Piece

500 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Performance and features:

1),Module Properties: non-isolated step-down module (BUCK)

2),Input voltage : 4-38V ( input please try not to exceed 38V)

3),Output voltage : 1.25-36V continuously adjustable

4),Output current : 0-5A, recommended in 4.5A

5),Output power : recommend to use in the 75W.

6),Operating temperature : -25 to +85 degrees

7),Working Frequency : 180KHz

8),Conversion efficiency : up to 96% ( efficiency of input and output voltage , current , pressure related )

9),Load regulation : S (I) ≤0.8%

10),Voltage Regulation : S (u) ≤0.8%

11),Power Indicator : YES

12),Short-circuit protection : YES ( limit current 8A)

13),Over temperature protection : Yes ( automatic shut off the output after overtemperature )

14),Input Reverse Polarity Protection: None ( if necessary please enter the string into the high current diode )

15),Installation mode : two 3mm screws

16),Wiring way : soldering , V-IN is the input , V-OUT output

17),Module dimensions : 54mm*23mm*18mm

Specifications:

Model	Converter-D010
Output power(W)	100W
Input voltage(V)	From 4VDC to 38VDC(5V,12V,24V...)
Output voltage(V)	From 1.25VDC to 36VDC(3.3V,5V,9.5V,12V,24V...)
Conversion efficiency	96%
Isolation/Non-isolated	Non-isolated
Output type	Multi
Output current (Amp)	5000mA(Max.)
Input/output interface	Wiring, customization available
Load regulation rate	<1%
Voltage regulation rate	<2%
Ripple	<50mV
Protection	Over-current, over-voltage, Over-temperature, shutdown, short-circuit, reverse polarity protections
Waterproof	Yes
Basic parameter
Dimension(LxWxH)	54mm * 23mm * 18mm , etc
Weight	5g
Rated temperature	40°c
Operating temperature	-25°c~85°c
Warranty	1 year

DC-DC Converter customize range:

Item	Type	Voltage convert	Output current
1	DC-DC Converter - step down	24vdc to 12vdc	1/2/3/4/5/8/10/15/20/25A
2	DC-DC Converter - step down	12vdc/24vdc to 5vdc	1/2/3/4/5/8/10/15/20/25/30A
3	DC-DC Converter-Boost	5vdc to 12vdc	1/2/3/4/5/8/10A
4	DC-DC Converter-Boost	12vdc to 36vdc	1/2/4/5A
5	DC-DC Converter-Boost	12vdc to 48vdc	1/2/4/5A
6	DC-DC Converter - step down	36vdc/48vdc to 12vdc	1/2/3/4/5/10/12/15/20A
7	DC-DC Converter-Boost	12vdc to 24vdc	1/2/3/4/5/8/10/12A
8	DC-DC Converter - step down	60vdc to 12vdc	10/12/15A
9	DC-DC Converter - step down	60vdc to 24vdc	10/12/15A
10	DC-DC Converter - step down	60vdc to 36vdc	5/8A
11	DC-DC Converter - step down	12vdc to 5vdc	1/2/3A
12	DC-DC Converter - step down	36vdc/48vdc to 24vdc	10/12/15/20A
13	DC-DC Converter - step down	48vdc to 36vdc	5/8A
14	DC-DC Converter---Automatic Step down and Boost	12vdc-12vdc	1/2/3/6A
15	DC-DC Converter---Automatic Step down and Boost
