Home > Products > DC converter cable > Standard Output Current 500mA dc dc Step-up 5v to 12v Converter

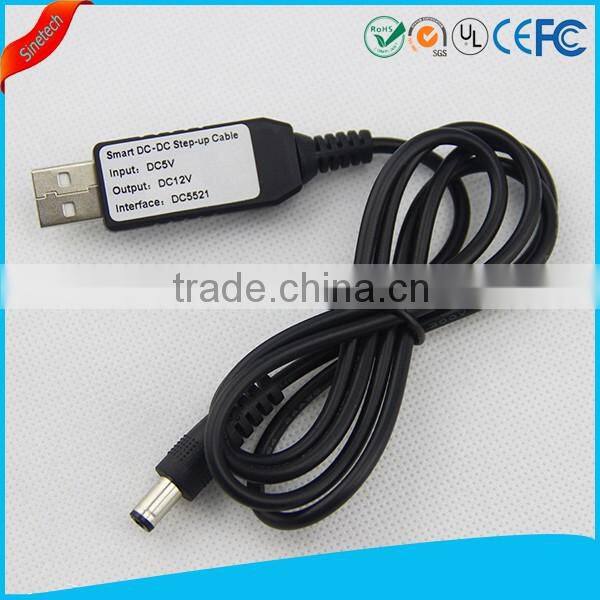

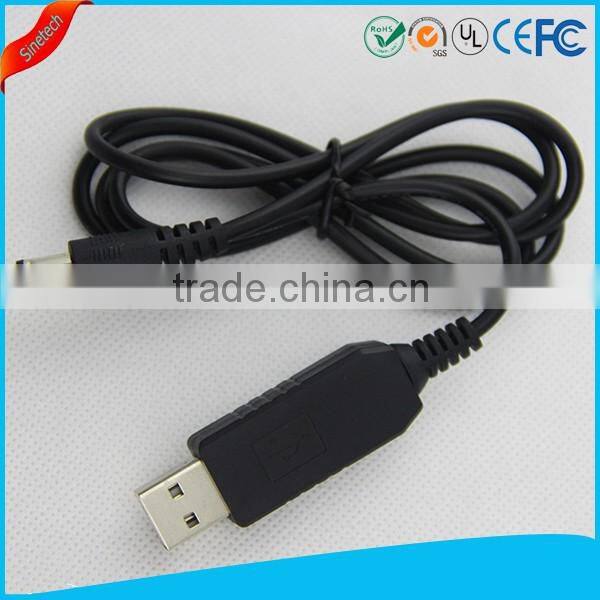

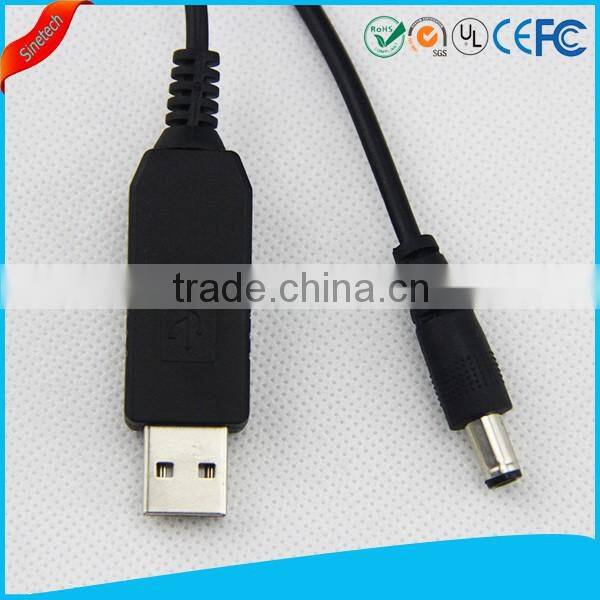

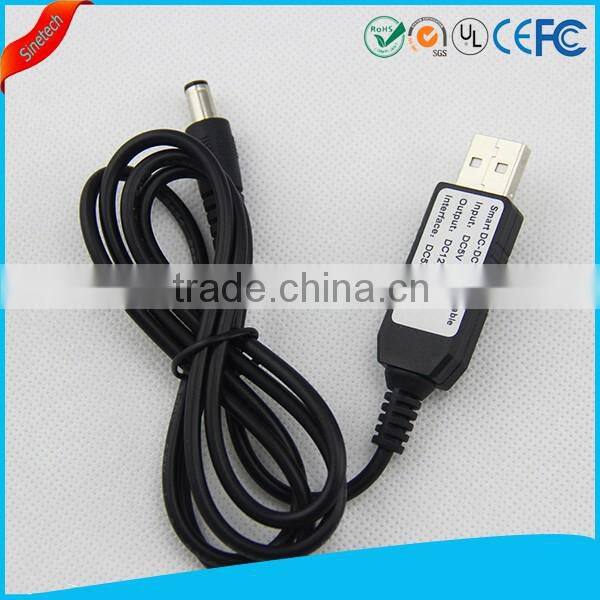

Standard Output Current 500mA dc dc Step-up 5v to 12v Converter
- Shenzhen
- T/T Credit Card
You May Like
-
dc Converter 5V to 8V Smart DC-DC Step-up Converter Cable With Switch
-
Single & Dual Output With 5V to 9V&12V Step up Dc/dc Boost Converter
-
24v dc to 12v dc Step-down Converter
-
Car Cigarette Lighters Cable Mini Din 4pin Plug Power Cable With 12V to 12V
-
Mini Din 4pin 12V Car Cigarette Lighter Power Adapter Cable
-
High Quality Car Cigarette Lighter to Mini 4pin Din Cable With 12V to 12V
Product Details
| Place of Origin | Guangdong, China | Brand Name | Sinetech | |
| Model Number | DC DC converter | Output Power | 1 - 50W | |
| Output Type | Single | Size | 58mm*18mm*10mm | |
| Weight | 30g, 30g | Input Voltage | 5V | |
| Output Voltage | 12V | Type | DC/DC Converters | |
| Output Frequency | 0-400HZ | Output Current | 500mA |
Product Description
Standard output current 500mA dc dc step-up 5v to 12v converter
Module Features
1 ) Maximum output current : 500mA
2 ) Input voltage : 5 v
3 ) Maximum output voltage :12 v
4 ) Efficiency: > 95% ( efficiency of input and output pressure related )
5 ) Size : 58mm * 18mm * 10mm ( L * W * H )
6 ) Interface: USB A to DC 5.5*2.1mm or 3.5mm*1.3mm
7 ) Excupt black color shell,other color MOQ 1000pcs.
Model | DC DC Converter |
Output power(W) | 10W |
Input voltage(V) | 5VDC |
Output voltage(V) | 12V DC |
Conversion efficiency | 96% |
Isolation/Non-isolated | Non-isolated |
Output type | Singal |
Output current (Amp) | 500mA, self-adaption |
Input/output interface | Wiring, customization available |
Load regulation rate | <1% |
Voltage regulation rate | <2% |
Ripple | <50mV |
Protection | Over-current, over-voltage, Over-temperature, shutdown, short-circuit, reverse polarity protections |
Waterproof | Yes |
Basic parameter | |
Dimension(LxWxH) | 58x18x10mm, etc |
Weight | 30g |
Case | Plastic ABS |
Cooler | Natural cooling |
Rated temperature | 40°c |
Operating temperature | -25°c~85°c |
Warranty | 1 year |
Item | Type | Voltage convert | Output current |
1 | DC-DC Converter - step down | 24vdc to 12vdc | 1/2/3A |
2 | DC-DC Converter - step down | 12vdc/24vdc to 5vdc | 1/2/3A |
3 | DC-DC Converter-Boost | 5vdc to 12vdc | 1/2/3A |
4 | DC-DC Converter-Boost | 12vdc to 36vdc | 1/2A |
5 | DC-DC Converter-Boost | 12vdc to 48vdc | 1/2A |
6 | DC-DC Converter - step down | 36vdc/48vdc to 12vdc | 1/2/3A |
7 | DC-DC Converter-Boost | 12vdc to 24vdc | 1/2/3A |
8 | DC-DC Converter - step down | 60vdc to 12vdc | 10/12/15A |
9 | DC-DC Converter - step down | 60vdc to 24vdc | 10/12/15A |
10 | DC-DC Converter - step down | 60vdc to 36vdc | 5/8A |
11 | DC-DC Converter - step down | 12vdc to 5vdc | 1/2/3A |
12 | DC-DC Converter - step down | 36vdc/48vdc to 24vdc | 10/12A |
13 | DC-DC Converter - step down | 48vdc to 36vdc | 5/8A |
14 | DC-DC Converter---Automatic Step down and Boost | 12vdc-12vdc | 1/2/3A |
15 | DC-DC Converter---Automatic Step down and Boost |
|
|
PAYMENT METHOD
We accept PayPal, T/T, L/C,Western union, Escrow and cash.
If not more than 5000USD, please 100% T/T to my company account number.
If more than 5000USD, we are accept prepaid 30% and 70% before shipment.
DELIVERY GUARANTEE
We are professional manufacture and wholesaler of all kindly of Cables, so you could buy most kinds of cables in our campany.
Accept OEM order and customized order .When what you need is different with our regular products,we can OEM customized product for you,but sometimes the MOQ is 1000pcs or 3000pcs for special ones.
If you have any problem, please feel free to contact us.
Good and fast service: one seller to one customer.
Your inquiry about our 1Meter or length customized DC 5V to 12V step up converter boost cable factory to computer is warmly welcomed.
The Shenzhen SineTech electronic Co.,Ltd is a quality-focused company which designs, manufactures, markets and sells various IR cable,Audio/Stereo/Video cable(AV cables), adater/power supply/converter cable, DC converter cable cable,VGA cable , harness cable, RJ45 cable,RS232 Cable and accessories. Our aim is to produce high-quality products. We are committed to customers’ satisfaction and keep abreast growth with customers. We have won a good reputation at home and abroad, especially in USA, European, Middle East, Asia etc.
We have made cables and accessories to computers, consumer electronic products and auto electronic products for many years. Our team’s R&D department focus on new and front-end products in the market and have strong ability to help customers to design and develop new products.
Innovation is the motivation and direction of us. Connecting everything around electronic products , making the life easier and more convenient and providing customers a high-quality life style are our mission. We welcome customers who need various products related to cables.
The Shenzhen SineTech electronic Co.,Ltd is a quality-focused company which designs, manufactures, markets and sells various IR cable,Audio/Stereo/Video cable(AV cables), adater/power supply/converter cable, DC converter cable cable,VGA cable , harness cable, RJ45 cable,RS232 Cable and accessories. Our aim is to produce high-quality products. We are committed to customers’ satisfaction and keep abreast growth with customers. We have won a good reputation at home and abroad, especially in USA, European, Middle East, Asia etc.
We have made cables and accessories to computers, consumer electronic products and auto electronic products for many years. Our team’s R&D department focus on new and front-end products in the market and have strong ability to help customers to design and develop new products.
Innovation is the motivation and direction of us. Connecting everything around electronic products , making the life easier and more convenient and providing customers a high-quality life style are our mission. We welcome customers who need various products related to cables.
