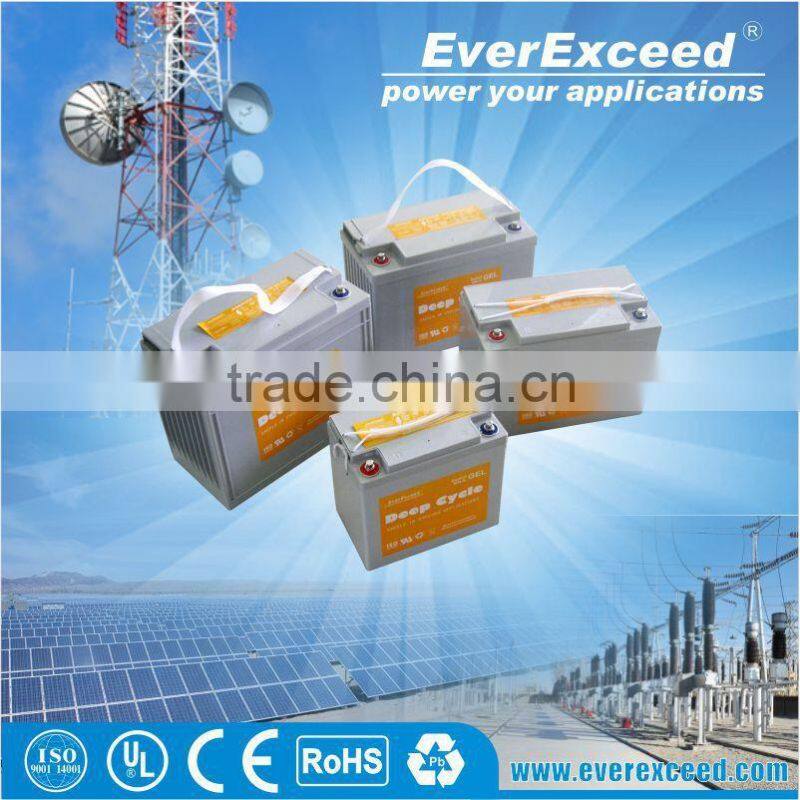

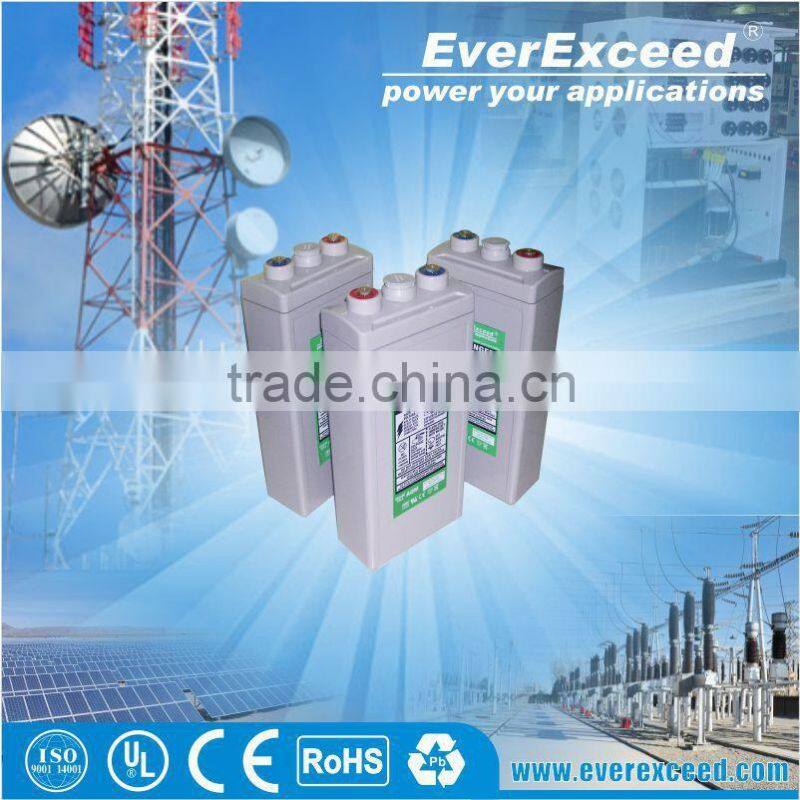

EverExceed Maintenance Free 220ah Battery , Deep Cycle Solar Battery for Solar Energy

The extremely powerful and reliable EverExceed’s Solar Gel Range VRLA batteries perfectly fulfills the requirement for many different applications including telecommunications for many different applications including telecommunications, home medical equipment (HME)/ mobility, industrial and utility applications where frequent deep cycle are required and minimum maintenance is desirable. Our development team combines the market’s demand with design optimization, precision component selection and state-of-the-art manufacturing process to produce the most cost-effective battery solution for today’s applications.

Applicable operating temperature range: -40°C~+70°C

Ideal operating temperature range: +20°C~ +35°C

Storage time from a fully charged condition: 24 months at 25°C, for each 9°C rise, reduce the storage time by half.

Designed in quality manufacturing

Advanced Germany technology and the use of the most modem computer-aided design and manufacturing techniques combine to make EverExceed’s Solar Gel Range Batteries the ideal power solution for your applications. Each and every unit is capacity tested.

• Exceptional energy storage capacity combined with long life-BCI classification;
• Thick positive plate design for maximum service float life-12 year design life@20°C
• Thickness positive plate plus optimized plate alloy to anti-corrosion;
• UL recognized component;
• Spill-proof and leak-proof;
• Maintenance-free (no topping up ) during the whole service life due to EverExceed GEL technology.
• Flame-arresting one-way pressure -relief vent for safe and long life;
• Microporous tubber and corrugated PVC SiO2 separator, the special design increase the high porosity and anti-corrosion and decrease the internal resistance;
• Electrolyte in solid form will not stratify no equalization charge required;
• Sulfuric acid thixotropic gel, gel powder from Europe leading supplier to ensure the unique performance of gel batteries.
• Increase durability and deep cycle ability for heavy duty applications;
• Increased durability and deep cycle ability for heavy duty applications;
• Fully tank formed grid lead Calcium Tin plate ensures voltage matching between cells;
• Shelf life up to 2 years at 20°C, very low gassing due to internal gas recombination;
• Can be used in any orientation. Upright , side or end mounting recommended;
• Unique performance against high temperature.

Solar GEL VRLA Battery
- Maintenance free
- Leak proof / Spill proof
- High gas recombination
- Low discharge rate

Specifications:

Voltage:6&12 volts nominal

Plate alloy: Calcium-Tin alloy

Element, post: silver plated copper female insert

Container/cover:reinforced ABS,  UL V-0 on request

Specific:1.280

Electrolyte:sulfuric acid thixotropic solid get

Vent: self sealing (2 PSI operation)

• Telecommunication
• Water pumping
• Residential
• Lighting
• Cathodic protection
• Solar / Photovoltaic
• Wind generation
• RV/ Marine
• Golf cart
• Solar energy

EverExceed Group was established in 1980s and has its headquarter in Shenzhen, China, and subsidiaries in Singapore, UK and operations in six continents. We are manufacturing and supplying worldwide reliable power solutions with continuous innovative technologies, cost-effectiveness and good service, including industrial batteries (lead acid batteries, NiCad batteries, Lithium-ion batteries), solar power systems, UPS systems and DC power systems.

EverExceed attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / VDE/ CE/ IEC/ UL/ RoHS/ DEKRA. Our advanced technology, professional technique, automatic equipment, experienced staff and strict operation system assure high level product quality. By now, reliable products with our brand “EverExceed” have been exported to more than 60 countries all over the world.

Warmly and sincerely welcome you to join us, and become a distributor and a partner in the future.

For more information, please visit our website:.

Q: What is an AGM battery?

A: An AGM battery is a lead-acid battery that is sealed using special pressure valves and completely maintenance-free. It has all of its electrolyte absorbed in separators consisting of a sponge-like mass of matted glass fibers, and uses a recombination reaction to prevent the escape of hydrogen and oxygen gases normally lost in a flooded lead-acid battery (particularly in deep cycle applications).

Q: What is a GEL battery?

A: A gel battery is a lead-acid battery that is sealed using special pressure valves and completely maintenance-free. It uses thixotropic gelled electrolyte and uses a recombination reaction to prevent the escape of hydrogen and oxygen gases normally lost in a flooded lead-acid battery (particularly in deep cycle applications).

Q: What is a NiCad Battery?

A: The nickel cadmium battery is a type of rechargeable battery using nickel oxide hydroxide and metallic cadmium as electrodes. EverExceed manufactures pocket plate and sintered plate nicad batteries.

Q: What is battery rating?

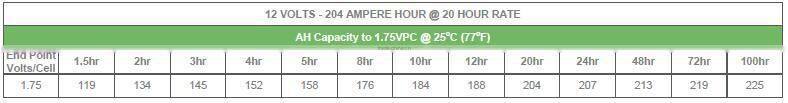

A: The most common battery rating is the Ampere-hour Rating. The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current.For example: 10 amperes for 20 hours (10 x 20) = 200 Ah @ the 20-hour rate.

Q: How can you tell if a VRLA battery has been damaged by under- or overcharging?

A: The only way is with a load test. Use the same procedure you would use with a wet cell battery:

a. Recharge if the open circuit voltage is below 75%.

b. If adjustable, set the load at 1⁄2 the CCA rating or three times the 20 hour rate.

c. Apply the load for 15 seconds. The voltage should stabilize above 9.6 volts while on load.

d. If below 9.6 volts, recharge and repeat test.

e. If below 9.6 volts a second time, replace the battery.

Q: How long does it take to recharge a fully discharged VRLA battery?

A: A specific time is difficult to determine because recharging depends on the following factors: depth of discharge; temperature; size and efficiency of the charger; age and condition of the battery.

Q: How do I select the right battery for my applications?
A: Proper battery selection may require the assistance of a knowledgeable battery sales or service technician. Please consult EverExceed for more details.
