Automatic terrazzo machine terrazzo tile polishing machine terrazzo grinding machine
- QINGDAO
- Credit Card
You May Like
-
Automatic stone machine stone polishing machine stone grinding machine
-
Automatic stone machine cnc stone machine stone cnc machine for polishing
-
QM90 Bridge Single Head Automatic Polisher
-
Single head marble granite bridge polisher
-
Hiersun automatic granite polishing machine one head
-
Granite marble stone slab polishing machine
Product Details
| Condition | New | Application | Building Materials Machinery | |
| Automatic Grade | Automatic | Production Capacity | Year | |
| Place of Origin | Shandong, China | Brand Name | Hiersun | |
| Model Number | HX | Voltage | three phase | |
| Power(W) | 7.5KW per head | Dimension(L*W*H) | Models | |
| Weight | 17T | Features | Automatic | |
| Certification | SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic terrazzo machine terrazzo tile polishing machine terrazzo grinding machine
We have manufacturing stone processing machine since the year 1992, so we have enough experience in
providing you high quality and matured machines
We provide:1. stone cutting, polishing, calibrating, profile making machine and so on. 2. artifcial marble stone and quartz stone producing machine line. 3. Stainless steel polishing machine
we can send our engineer to your factory to install and explain how to use these machines, we also have
oversea agent.
Wood packing or waterproof membrance for Automatic terrazzo machine terrazzo tile polishing machine terrazzo grinding machine
Automatic terrazzo machine terrazzo tile polishing machine terrazzo grinding machine
Main function and characteristic,
Hiersun series continue resin abrasive polishing machine with 9-12 head, This machine is mainly for slab polishing. The structure is reasonable, steady performance, high work efficiency. With the import PLC controlling system, text display is controlled intelligence. linear guide rail for high precision
Out air cylinder ,long life using, lower hazard rate, lower maintenance cost, etc advantage.
- With the best quality belt with famous brand, thickness accord,promise the thinckness of the slab.
Processing width | max 900mm |
Processing thickness | Max 50mm |
Grinding Heads | 12~20 |
Capacity | 150-300 square meter per 8hours |
Grinding head power | 12~20x7.5kw |
Belt move power | 1.5kw |
Bridge move power | 4kw |
Belt move speed | 600-2200mm/min |
Pressure | 0.6-0.8Mpa |
Cooling water pressure | min 0.15Mpa |
Consumption water for single grinding | 25L/min
|
Diameter of the granite polishing disk | 200mm |
Machine size | 7000*2200*2100mm |

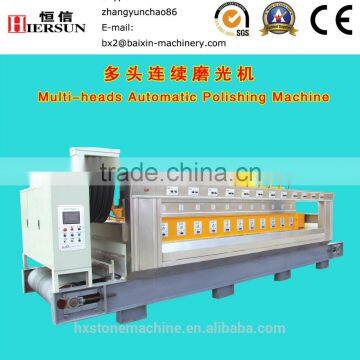

Pictures of 20 heads machine:
Terrazzo tile polishing head:
